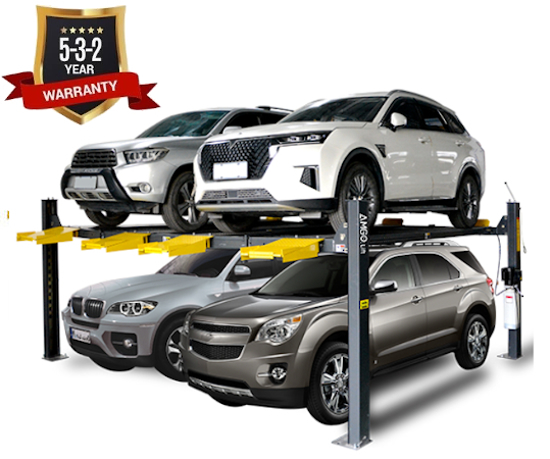

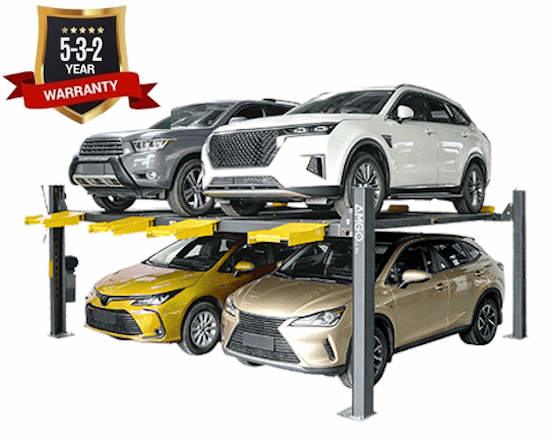

Double Storage/Parking Lift 9000lb 409-DPX 4 Post Amgo Hydraulics

409-DPX


SKU: 409-DPX
Manufacturer part number: 409-DPX
Manufacturer: AMGO Hydraulics
$7,595.00

Amgo warrantyLonger and higher model of 409-DP. More space created to park higher vehicles underneath, like SUV, light truck, etc.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Lifting capacity: 9,000lbs, Max. Car Weight: 6,000lbs.
• Max lifting height: 87 11/16”
• Low profile design, minimum platform height only 6 3/32″.
• Both primary & slack-cable safety devices are standard.
• Exclusive: hidden safety locks and manual single-point safety release.
• Exclusive: Foldable drive-on ramps of 4 units.
• Exclusive: Ingenious designs to minimize the package size, reducing transportation and storage cost.
• Exclusive: Double S Shaped columns for increased strength.
• Non-slip diamond platforms.
• Adjustable multiple safety ladders.
• Pull rope comes standard.


 Click links below for more info:

409-DPX 4 Post Double Parking Lift Manual

409-DPX 4 Post Double Parking Lift Brochure


Specifications

Model 409-DPX: Double Parking 4 Post Lift
Lifting Capacity:     9,000lbs
Lifting Time:     47s
A: Overall Length (Inc Ramps):     234 27/32"
B: Overall Length (No ramps):     201 3/8"
C: Overall Width:     201 9/16"
D: Width Between Columns:     192 1/16″
E: Drive Thru Width: 177 23/32"
F: Overall Height:     96 21/32"
G: Minimum Height:     6 3/32"
H: Lifting Height:   87 11/16"
H: Max Lock Height to top of Runway: 84 15/16"
I: Max Height Underneath Runway: 83 3/4"
I: Max Lock Height Underneath Runway: 80 31/32"
J: Width Between Runways:   37"
K: Overall Width of Single Parking Unit:     74 13/32"
L: Width Between Two Parking Units:    21 21/32"
Gross Weight:     3,142 lbs
Motor:     2.0HP 220V Single Phase


409-DP Double Parking Lift Specs

Amgo warrantyLonger and higher model of 409-DP. More space created to park higher vehicles underneath, like SUV, light truck, etc.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Lifting capacity: 9,000lbs, Max. Car Weight: 6,000lbs.
• Max lifting height: 87 11/16”
• Low profile design, minimum platform height only 6 3/32″.
• Both primary & slack-cable safety devices are standard.
• Exclusive: hidden safety locks and manual single-point safety release.
• Exclusive: Foldable drive-on ramps of 4 units.
• Exclusive: Ingenious designs to minimize the package size, reducing transportation and storage cost.
• Exclusive: Double S Shaped columns for increased strength.
• Non-slip diamond platforms.
• Adjustable multiple safety ladders.
• Pull rope comes standard.


 Click links below for more info:

409-DPX 4 Post Double Parking Lift Manual

409-DPX 4 Post Double Parking Lift Brochure


Specifications

Model 409-DPX: Double Parking 4 Post Lift
Lifting Capacity:     9,000lbs
Lifting Time:     47s
A: Overall Length (Inc Ramps):     234 27/32"
B: Overall Length (No ramps):     201 3/8"
C: Overall Width:     201 9/16"
D: Width Between Columns:     192 1/16″
E: Drive Thru Width: 177 23/32"
F: Overall Height:     96 21/32"
G: Minimum Height:     6 3/32"
H: Lifting Height:   87 11/16"
H: Max Lock Height to top of Runway: 84 15/16"
I: Max Height Underneath Runway: 83 3/4"
I: Max Lock Height Underneath Runway: 80 31/32"
J: Width Between Runways:   37"
K: Overall Width of Single Parking Unit:     74 13/32"
L: Width Between Two Parking Units:    21 21/32"
Gross Weight:     3,142 lbs
Motor:     2.0HP 220V Single Phase


409-DP Double Parking Lift Specs
