The inner components of the PRO 920 PLUS Tire Changer with Bead Blaster, PRO 928 PLUS Tire Changer with Bead Blaster, PRO 990 PLUS TC Low Profile Tire Changer with Tilt Back Column, PRO 990 PLUS RA Tire Changer with Bead Blaster and Tilt Back Column, and PRO 999D Plus RA Tire Changers are superior to those that sell for twice the money.
Features include Bead Breakers constructed with polished and anti-corrosive stainless steel cylinders resistant to water and moisture. Cylinder pistons are equipped with multiple seals which allow for a powerful force during bead breakdown.
Foot pedal assemblies are made of steel, reducing the chance of pedals breaking. Mounted on the foot pedal assembly is the reversing switch which controls the forward and reverse rotation of the electric turntable. It is made with silver contacts and is rated at 40 amps, more than twice the needed amperage. Demand on reversing switches for turntable operation can be quite heavy with today’s tire products. PRO series tire changers are built to withstand that demand.
Valving for the bead blaster is made of steel, not plastic, which is regularly found from most manufacturers. The air system lines are routed and wire is tied neatly. We’ve posted photos of our PRO series tire changers to our website with the cover off the side of the machine.

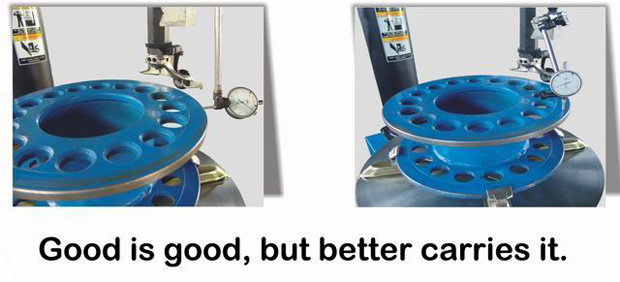

PRO series electric motors are copper wound, capable of handling larger wheels encountered in today's world. Transmissions are built with heat-treated steel and aluminum cases, with high-quality material for the worm gear, main gear, and shaft to transfer ample power to the turntable. We show photos on our website of run out being measured both circular and on the level plane just to prove how tight and how true the turntable rotates, and without vibration. With the PRO series tire machine there is no loud vibration as one might hear in inferior tire machines when removing a tire.
PRO series turntables are made extra-thick to prevent table distorting. Turntable clamps are made of polished, durable steel, capable of clamping the wheel properly and correctly. The brackets the turntable clamps mount on slide easily and precisely due to their large and durable design.
Under turntable cylinder assemblies provide the power needed to grip larger wheels. They are also built with anti-corrosive water resistant materials necessary for smooth and trouble-free operation.
Engineered for years of service, the construction of these high quality tire changers is capable of breaking down the toughest tires.
PRO 920 PLUS TC TIRE CHANGER INCLUDES:
**5,500 lb bead breaking force**
High-powered bead blaster
Plastic turntable clamp protectors (set of 4);
Plastic protector for bead breaker;
2 piece replacement inserts for duckheads (set of 3);
Tire Bead assist tools (4 pieces).

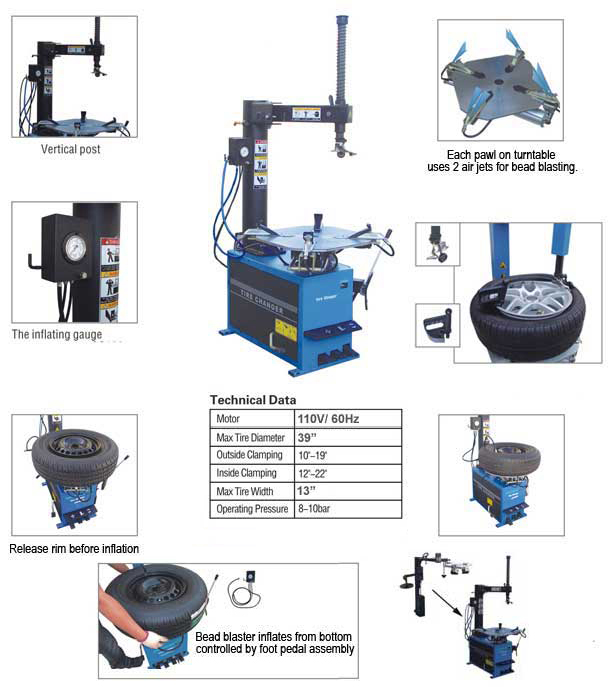

PRO 920 PLUS TC TIRE CHANGER FEATURES:
Larger and Thicker Turntable Dismounting 10-22"" rim and max, tire diameter 39"
"s" linkage design moves turntable clamps, ensure firm even grip so rim won't slip
Powerful under turntable cylinders hold clamps firm
Taller vertical post, dismounting max, tire width 12"
Universal Reversing Switch, 40A silver contact, much more durable
The hexangular shift is made of hardened steel, which prevents distortion when operating larger low profile stiff tires.
Foot pedal assembly is made of from high quality steel so that it's durable and unbreakable.
Rim clamps are casted of fine alloy steel, strong and durable
Each of the 4 rim clamps have 2 air jets for maximum bead blasting efficiency
Dismounting head is constructed with steel and is equipped with bead pressing device (assist roller) can be engaged or parked
Includes one drop center clamp for difficult tires
Powerful bead breaker cylinder made of non-corrosive stainless steel for long life, 5500lbs. force
Turntable powered by 110 volt copper wound motor
*Includes 1 year limited warranty.
PARTS DESCRIPTION FOR TIRE CHANGER
