2 Post Heavy Duty Lift 12000lb OH-12 Amgo Hydraulics

Overview
Customer Photos
Reviews

Amgo warranty

AMGO Heavy duty two post lifts are the best choice for heavy-duty vehicles or trucks in commercial shops… stronger and higher. The AMGO OH-12 provides 3 height settings reaching up to 16.5 ft and features 4 three-stage full-reaching arms, accommodating many types of vehicles, from small cars to heavy-duty pickups and commercial vehicles. Additionally, it integrates AMGO’s 3 in 1 technology for easier installation.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

Lifting capacity: 12,000 lbs;
Dual hydraulic direct-drived cylinders made on high standard;
4 three-stage arm design allows to lift vehicles from short to long wheel base;
Single-point manual safety lock release, simultaneously unlock both columns from one side;
Clear-floor design, provide unobstructed floor use;
Overhead safety shut-off device prevents vehicle damage;
Exclusive: adjustable three height setting accommodates varying service ceiling heights;
Self-lubricating UHMW polyethylene sliders
Automatic arms restraint;
Areo sync cables come as standard;
Comes with detachable toe guard and tool tray;
Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
Both 3” and 6” extension adapters come as standard.

Click links below for more info:

OH-12 2 Post Lift Manual

OH-12 2 Post Lift Brochure

Specifications

Model OH-12
Lifting Capacity 12,000 lbs
Lifting Time 69 S
A. Max Lifting Height w/o Extension Adapter     72 1/2″ - 73 7/8″
    Max Lifting Height w/ Extension Adapter     81 9/16″ - 82 7/8″
    Max Lock Height w/o Extension Adapter     70 9/16″ - 71 7/8″
    Max Lock Height w/ Extension Adapter     79 9/16″ - 80 15/16″
B. Overall Height (low setting) 174"
Overall Height (medium setting) 186"
Overall Height (high setting) 198"
C. Overall Width 150 3/4″
D. Drive Thru Clearance 109 3/4″
E. Width Between Columns 123 1/2″
F. Minimum Pad Height 4 1/2″
Motor 2.0HP, 220V, 60Hz, Single Phase
Gross Weight 2346 lbs

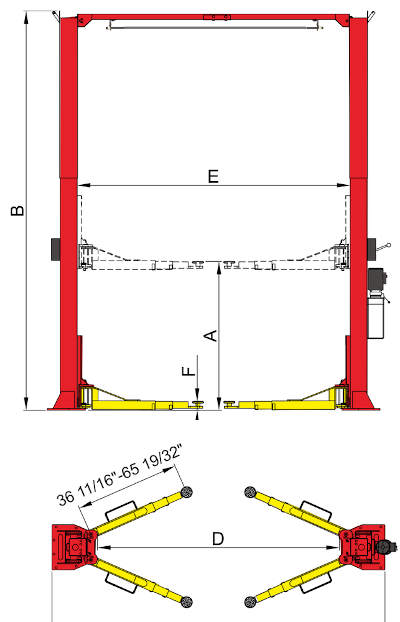

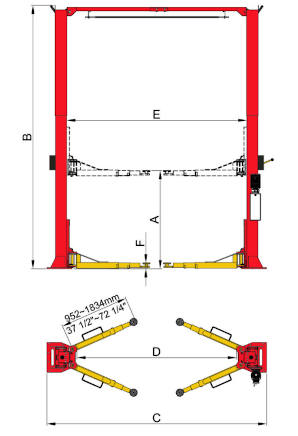

OH-12 2 Post Lift Diagram Amgo

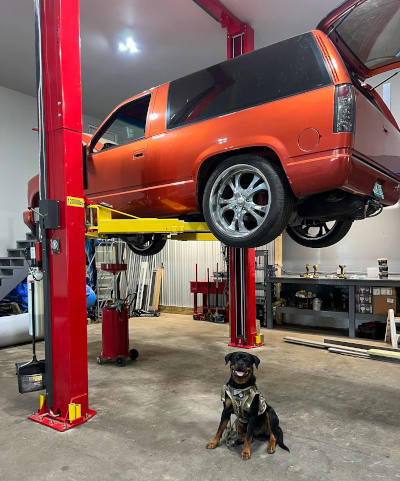

Amgo 2 Post Lift OH-12 FitzGerald's Automotive and Powersport in VT

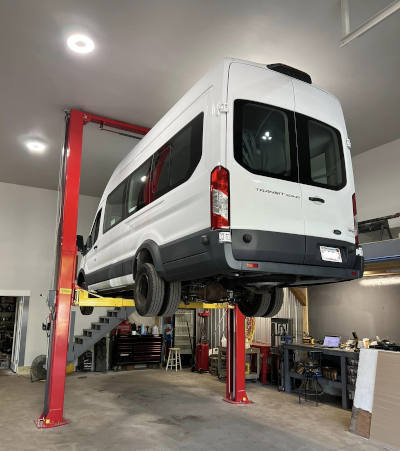

Amgo OH-12 2 Post Lift Ford Transit Cargo Van

PRO-12S 4 Post Lift Jason Weare NH

Existing reviews

Perfect!!

Perfect!!
-Vadim, Williston Motors
Williston, VT

From: mail | Date: 4/6/2021 9:26 AM
