2 Post Heavy Duty Lift 12000lb OH-12S Amgo Hydraulics

OH-12S


SKU: OH-12S
Manufacturer part number: OH-12S
Manufacturer: AMGO Hydraulics
$4,475.00

Amgo warranty

AMGO Heavy duty two post lifts are the best choice for heavy-duty vehicles or trucks in commercial shops… stronger and higher! OH-12S is the ideal choice for shops and service centers with limited ceiling height. The OH-12S is height adjustable and can be set to three different heights to accommodate various types of service as well as ceiling heights.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 12,000 lbs capacity
• Single-point safety release
• Exclusive: adjustable three height setting accommodates varying service ceiling heights
• (4) Three-stage arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in position
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aviation standard durable cables used for synchronization
• Detachable foot guard and tool tray for a clutter-free work space
• Anchor bolts and hardware included


Click links below for more info:

OH-12S 2 Post Lift Manual

OH-12S 2 Post Lift Brochure


Model    OH-12S
Lifting Capacity    12,000 lbs
Lifting Time    69S
A: Max Lifting Height w/o extension adapter   72 1/2″
A: Max Lifting Height with extension adapter   81 1/2″
A: Max Lock Height w/o extension adapter   70 1/2″
A: Max Lock Height with extension adapter   79 1/2″
B: Overall Height    143 1/8" | 155 1/8" | 167 1/8"
C: Overall Width    150 3/4"
D: Drive-Thru Clearance    109 3/4"
E: Width Between Columns    123 1/2'
F: Minimum Pad Height    4 1/2"
Motor    2.0HP/220V/60Hz,Single Phase
Gross Weight    2,202 lbs

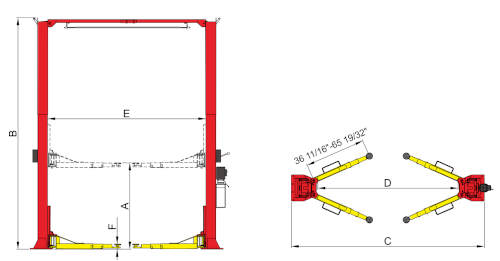

OH-12S 2 post lift diagram

Amgo warranty

AMGO Heavy duty two post lifts are the best choice for heavy-duty vehicles or trucks in commercial shops… stronger and higher! OH-12S is the ideal choice for shops and service centers with limited ceiling height. The OH-12S is height adjustable and can be set to three different heights to accommodate various types of service as well as ceiling heights.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 12,000 lbs capacity
• Single-point safety release
• Exclusive: adjustable three height setting accommodates varying service ceiling heights
• (4) Three-stage arms allowing to lift the trucks from short to long wheel base
• Automatic arm restraints keep the arms locked in position
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aviation standard durable cables used for synchronization
• Detachable foot guard and tool tray for a clutter-free work space
• Anchor bolts and hardware included


Click links below for more info:

OH-12S 2 Post Lift Manual

OH-12S 2 Post Lift Brochure


Model    OH-12S
Lifting Capacity    12,000 lbs
Lifting Time    69S
A: Max Lifting Height w/o extension adapter   72 1/2″
A: Max Lifting Height with extension adapter   81 1/2″
A: Max Lock Height w/o extension adapter   70 1/2″
A: Max Lock Height with extension adapter   79 1/2″
B: Overall Height    143 1/8" | 155 1/8" | 167 1/8"
C: Overall Width    150 3/4"
D: Drive-Thru Clearance    109 3/4"
E: Width Between Columns    123 1/2'
F: Minimum Pad Height    4 1/2"
Motor    2.0HP/220V/60Hz,Single Phase
Gross Weight    2,202 lbs

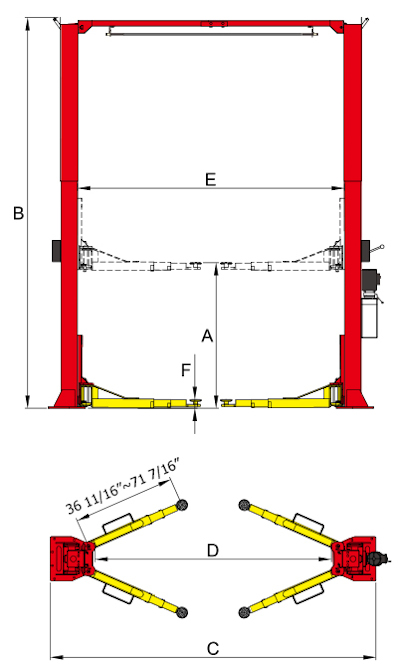

OH-12S 2 post lift diagram
