2 Post Heavy Duty Lift 18000lb OH-18 Amgo Hydraulics

OH-18


SKU: OH-18
Manufacturer part number: OH-18
Manufacturer: AMGO Hydraulics
$8,295.00

Amgo warranty

AMGO’s latest OH-18 boasts heavy-duty construction and offers a high lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads for various vehicles. Additionally, it incorporates AMGO’s 3 in 1 technology to effortlessly reach different height settings.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • Lifting capacity: 18,000 lbs
  • High quality dual hydraulic direct-drive cylinders
  • 4 two-stage sturdy arms ensure the heavy load stability
  • Single-point manual safety lock release that simultaneously unlocks both columns from one side
  • The clear-floor design provides an unobstructed workspace;
  • The overhead safety shut-off device for maximum vehicle protection
  • Exclusive: adjustable three height setting accommodates varying service ceiling heights
  • Extremely long carriages are equipped to enhance the stability and durability
  • Self-lubricating UHMW polyethylene sliders
  • Automatic arms restraint
  • Aero sync cables come standard
  • Both heavy-duty single-screw rubber pad and saddle adapter included
  • 3"and 6" adapters included
  • Detachable toe guard and tool tray included
  • Anchor bolts and hardware included


 Click links below for more info:

OH-18 2 Post Lift Manual

Lowering/Increasing Speed Adjustment on Your Lift


Specifications

  • Model     OH-18
  • Lifting Capacity     18,000 lbs
  • Lifting Time     84 S
  • A. Max. Lifting height: (w/o extension adapter)       74 7/8"~76 1/4"
        Max. Lifting height: (w/ extension adapter)    83 7/8"~ 85 1/4"
        Max. lock height: (w/o extension adapter)    72 7/8"~ 74 1/4"
        Max. lock height: (w/ extension adapter)    81 7/8"~ 83 1/4"
  • B. Overall Height (Low Setting)   174"
         Overall Height (Medium Setting)   186"
         Overall Height (High Setting)   198"
  • C. Overall Width   151 15/16″
  • D. Drive Thru Clearance     110 7/16″
  • E. Width Between Columns     123 1/2″
  • F. Minimum Pad Height     6 7/8″
  • Motor     2.0HP
  • Gross Weight     2,906 lbs

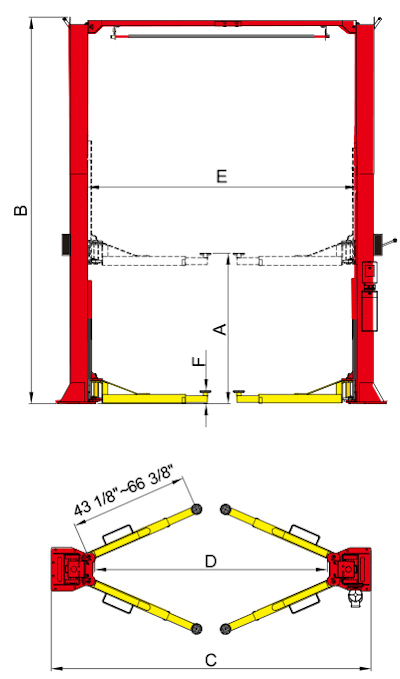

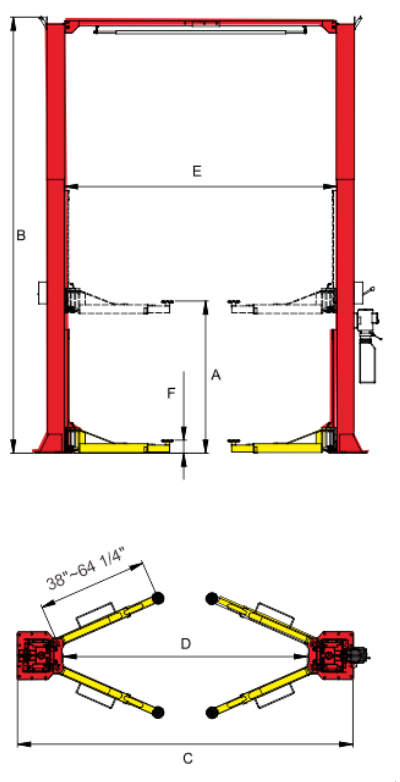

OH-18 heavy duty 2 post lift diagram

Amgo warranty

AMGO’s latest OH-18 boasts heavy-duty construction and offers a high lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads for various vehicles. Additionally, it incorporates AMGO’s 3 in 1 technology to effortlessly reach different height settings.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

  • Lifting capacity: 18,000 lbs
  • High quality dual hydraulic direct-drive cylinders
  • 4 two-stage sturdy arms ensure the heavy load stability
  • Single-point manual safety lock release that simultaneously unlocks both columns from one side
  • The clear-floor design provides an unobstructed workspace;
  • The overhead safety shut-off device for maximum vehicle protection
  • Exclusive: adjustable three height setting accommodates varying service ceiling heights
  • Extremely long carriages are equipped to enhance the stability and durability
  • Self-lubricating UHMW polyethylene sliders
  • Automatic arms restraint
  • Aero sync cables come standard
  • Both heavy-duty single-screw rubber pad and saddle adapter included
  • 3"and 6" adapters included
  • Detachable toe guard and tool tray included
  • Anchor bolts and hardware included


 Click links below for more info:

OH-18 2 Post Lift Manual

Lowering/Increasing Speed Adjustment on Your Lift


Specifications

  • Model     OH-18
  • Lifting Capacity     18,000 lbs
  • Lifting Time     84 S
  • A. Max. Lifting height: (w/o extension adapter)       74 7/8"~76 1/4"
        Max. Lifting height: (w/ extension adapter)    83 7/8"~ 85 1/4"
        Max. lock height: (w/o extension adapter)    72 7/8"~ 74 1/4"
        Max. lock height: (w/ extension adapter)    81 7/8"~ 83 1/4"
  • B. Overall Height (Low Setting)   174"
         Overall Height (Medium Setting)   186"
         Overall Height (High Setting)   198"
  • C. Overall Width   151 15/16″
  • D. Drive Thru Clearance     110 7/16″
  • E. Width Between Columns     123 1/2″
  • F. Minimum Pad Height     6 7/8″
  • Motor     2.0HP
  • Gross Weight     2,906 lbs

OH-18 heavy duty 2 post lift diagram
