2 Post Lift Base Plate 10000lb BP-10 Amgo Hydraulics

AMGO BP Series 2 post lifts (Base plate) are rugged and versatile to operate. The BP-10 can lift vehicles up to 10,000 lbs. It is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO 2 post lifts are manufactured to high-quality standards, while using top materials and parts, with advanced features and innovative technology.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 10,000 lbs capacity, chain-driven 2 post lift with base plate. Designed for low ceiling professional and home garages with no obstructions and increased headroom
• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
• Super-symmetric arms provide versatility when choosing between asymmetric and symmetric positions and eliminates the need for two different kinds of lifts.
• The three-stage front arms and two-stage rear arms allow entry in and out of the vehicle when needed
• Automatic arm restraints keep the arm*s locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization

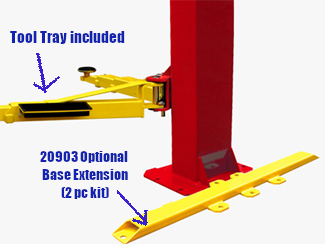

• Detachable foot guard and tool tray to allow for a clutter-free work space

BP-10 10000 lb 2 Post Lift Manual

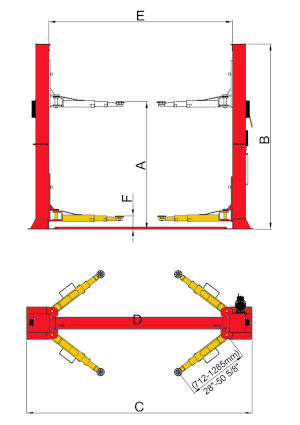

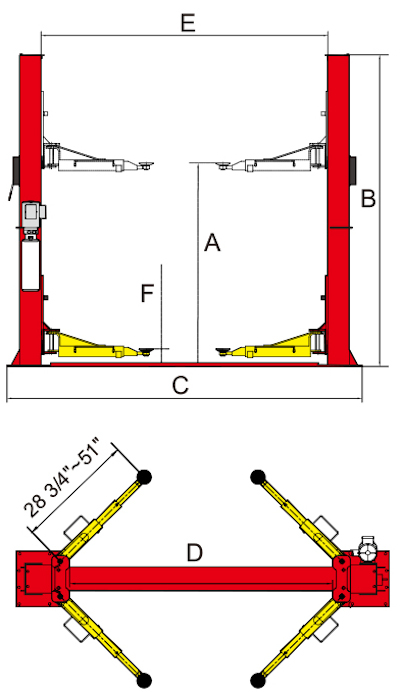

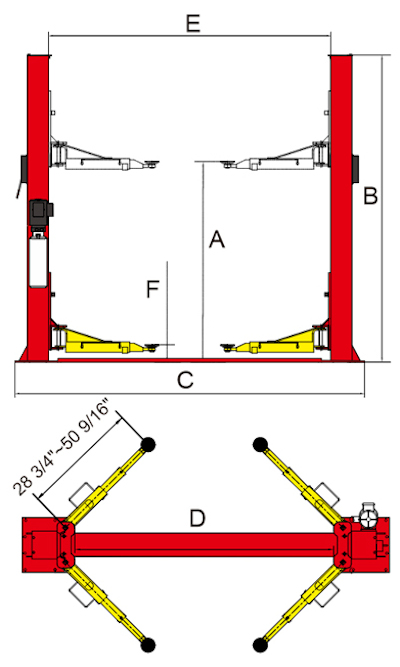

Specifications

• Lifting Capacity    10,000 lbs (4,536 kg)
• Lifting Time    62S
• A:Lifting Height    77 3/8″ ~ 86 3/8″ (1965~2194mm)
• B:Overall Height    111 7/8″ (2841mm)
• C:Overall Width    139 1/8″ (3534mm)
• D:Drive-Thru Clearance    100 3/4″ (2560mm)
• E:Width Between Columns    112 1/4″ (2850mm)
• F:Minimum Pad Height    4 1/2″ (115mm)
• Motor    2.0HP
• Gross Weight    1,693lbs (768kg)
