The BP-9X is a base-plate 2-post lift made for low-ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling as low as 10'. This lift features symmetric arms and automatic arm restraints. It also includes a single point release switch to make it easier to unlock both column locks from one column.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Fits under 10' ceilings
• 9,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low-ceiling workshop environment without overhead obstruction
• Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
• 4 three-stage arms are suitable for more vehicles
• Automatic arm restraints keep the arms locked in their proper positions
• Self-lubricating UHMW Polyethylene sliders and bronze bushings
• Aircraft quality cable is used for synchronization

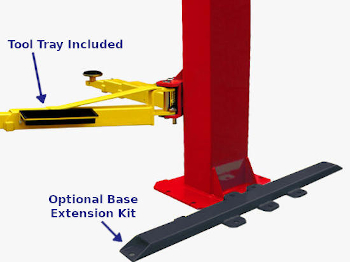

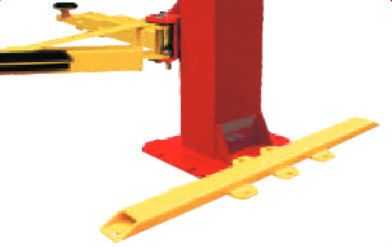

• Detachable foot guard and tool tray allow for a clutter free work space
• Anchor bolts and hardware included

BP-9X 9000lb 2 Post Automotive Lift Manual

Specifications

• Model BP-9X
• Lifting Capacity 9,000lbs
• Lifting Time 49S

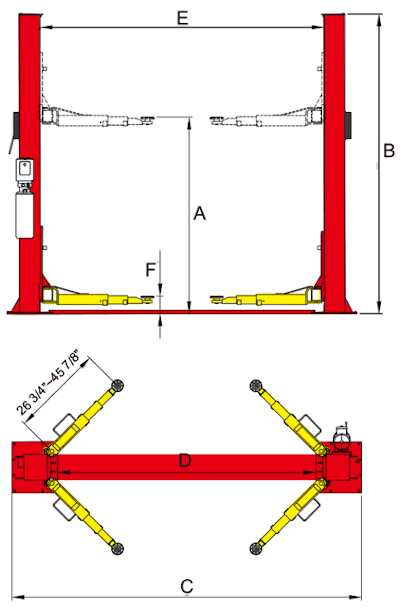

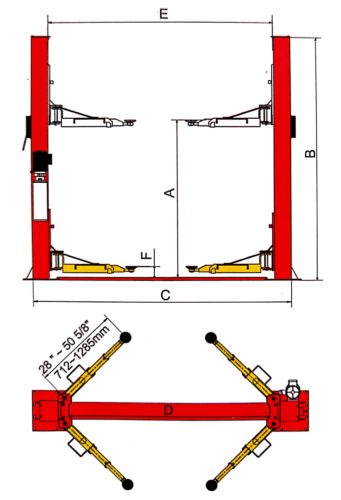

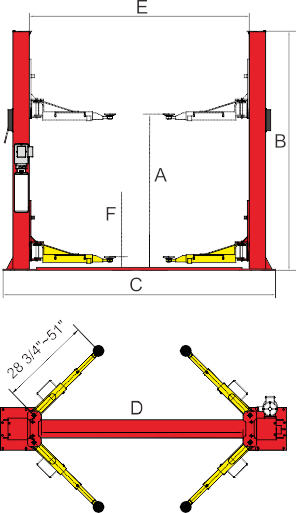

• A: Lifting height 76 3/8″ ~ 85 3/8″
• B: Overall Height 111 7/8″
• C: Overall Width 136 1/4″
• D: Drive-Thru Clearance 100 3/4″
• E: Width Between Columns 112 1/4″
• F: Minimum Pad Height 3 1/2″
• Motor 2.0HP / 220V/60Hz, Single Phase
• Gross Weight 1,590lbs
