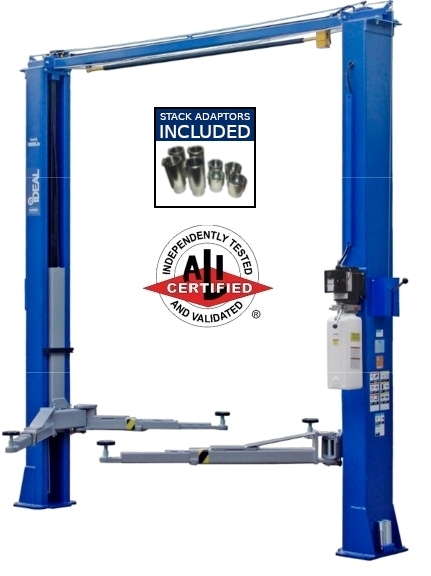

2 Post Lift Assymetric iDeal TP10KAC-DX

The iDEAL TP10KAC-DX 10,000 lb. ALI Certified Two Post Lift is a premium Bi-Symmetric™ design clear floor vehicle lift with the latest design features including, 3 Stage front arms with full 180° rotation for symmetric & asymmetric lifting, low profile 4” adjustable swivel pads and single point cable lock release. The rigid one-piece column combined with direct 'pull' cylinders make it the perfect service lift for passenger cars, SUVs & most light duty trucks. The automatic arm restraints, hose & door guards complete the package for a premium, high quality lift, all at a great value!
SKU: TP10KAC-DX
Manufacturer part number: TP10KAC-DX
Manufacturer: iDEAL
$2,799.00

ALI certified liftWE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**


The iDEAL TP10KAC-DX 10,000 lb. ALI Certified Light Duty Two Post Lift is a premium Bi-Symmetric™ design clear floor vehicle lift with the latest design features including, 3 Stage front arms with full 180° rotation for symmetric & asymmetric lifting, low profile 4” adjustable swivel pads and single point cable lock release. The rigid one-piece column combined with direct ‘pull’ cylinders make it the perfect service lift for passenger cars, SUVs & most light duty trucks. The automatic arm restraints, hose & door guards complete the package for a premium, high quality lift, all at a great value!

FEATURES


10,000 lb lifting capacity
Bi-symmetric lift arms
Low profile swing arm design
3 stage front arms
Adjustable height swivel pads
2" and 4" stackable height adaptors
Single point lock release
Automatic arm restraints
Direct "pull" drive cylinders
External hose guards
Rubber door guards
Durable powder coat finish
New Met UL/CSA certified duro power unit
ALI certified
Limited warranty policy (5 year structural / 1 year parts)


TP10KAC-DX 2 Post Lift User Manual




SPECIFICATIONS



Lift Model TP10KAC-DX
Capacity 10,000 lbs.
Height Overall 144"
Width Overall w/ Power Unit 145-1/2"
Max Lift Height 71"
Width Between Columns 116"
Min. Pad Height 4"
Drive Thru Clearance 104"
Lifting Speed   50S
Asymmetric / Symmetric Bi-symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach - min/max 23" - 45"
Long Arm Reach - min/max 41" - 59"
Narrow Bay Setting NA
Max Load per Arm 2500 lbs
Ceiling Height Required 145"
Ship Weight 1,705 lbs.
Power 220V - 20 AMP - 1 PH












ALI certified liftWE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**


The iDEAL TP10KAC-DX 10,000 lb. ALI Certified Light Duty Two Post Lift is a premium Bi-Symmetric™ design clear floor vehicle lift with the latest design features including, 3 Stage front arms with full 180° rotation for symmetric & asymmetric lifting, low profile 4” adjustable swivel pads and single point cable lock release. The rigid one-piece column combined with direct ‘pull’ cylinders make it the perfect service lift for passenger cars, SUVs & most light duty trucks. The automatic arm restraints, hose & door guards complete the package for a premium, high quality lift, all at a great value!

FEATURES


10,000 lb lifting capacity
Bi-symmetric lift arms
Low profile swing arm design
3 stage front arms
Adjustable height swivel pads
2" and 4" stackable height adaptors
Single point lock release
Automatic arm restraints
Direct "pull" drive cylinders
External hose guards
Rubber door guards
Durable powder coat finish
New Met UL/CSA certified duro power unit
ALI certified
Limited warranty policy (5 year structural / 1 year parts)


TP10KAC-DX 2 Post Lift User Manual




SPECIFICATIONS



Lift Model TP10KAC-DX
Capacity 10,000 lbs.
Height Overall 144"
Width Overall w/ Power Unit 145-1/2"
Max Lift Height 71"
Width Between Columns 116"
Min. Pad Height 4"
Drive Thru Clearance 104"
Lifting Speed   50S
Asymmetric / Symmetric Bi-symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach - min/max 23" - 45"
Long Arm Reach - min/max 41" - 59"
Narrow Bay Setting NA
Max Load per Arm 2500 lbs
Ceiling Height Required 145"
Ship Weight 1,705 lbs.
Power 220V - 20 AMP - 1 PH
