The OHX-10 is designed with super asymmetric arms that can be configured with symmetric and asymmetric. The very long carriages design makes the lift working much smoothly and reliable. The top beam is designed to be adjusted in length, so it is easy to install the OHX-10 with about 6″ wider by using the width extension kits.

Direct drive cylinders and advanced features. Height & Width adjustment.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Dual direct drive hydraulic cylinders made to high standards
• Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
• Single point safety release allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Single piece column allowing for easier installation
• Stackable tube adapters (set of 4) 1.5″, 2.5″, 5″

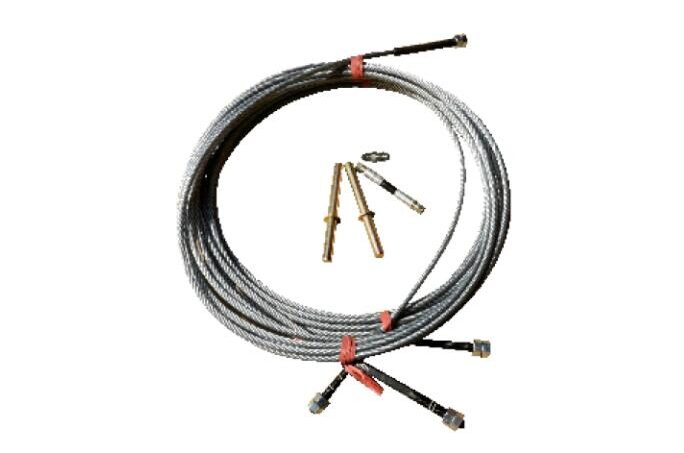

• Width adjustable kit optional. Part #21004
• Anchor bolts and hardware included

OHX-10 10000lb 2 Post Car Lift Manual

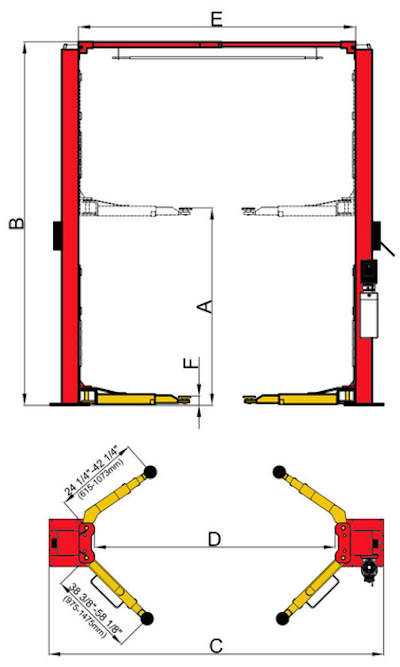

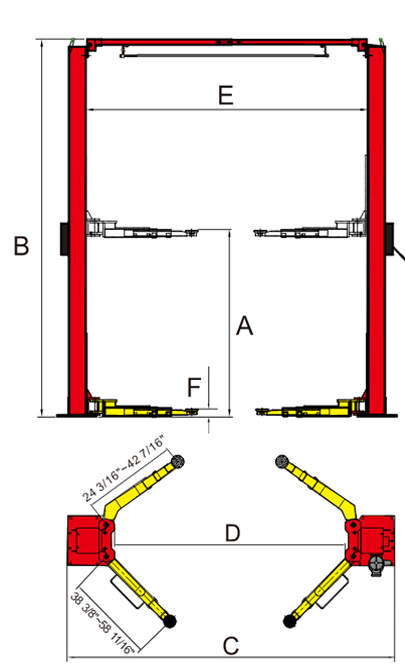

Specifications

• Model     OHX-10
• Lifting Capacity     10,000 lbs
• Lifting Time     57 S
• A: Lifting Height     71 1/2″ ~ 80 1/2″
• B: Overall Height     144″
• C: Overall Width     135″ | 140 7/8″
• D: Drive Thru Clearance     99 1/2″ / 105 1/2″
• E: Width Between Columns     112 1/4″ / 118 1/8″
• F: Minimum Pad Height     3 1/2″
• Motor     2.0HP/220V/60Hz, Single Phase
• Gross Weight     1,620 lbs
