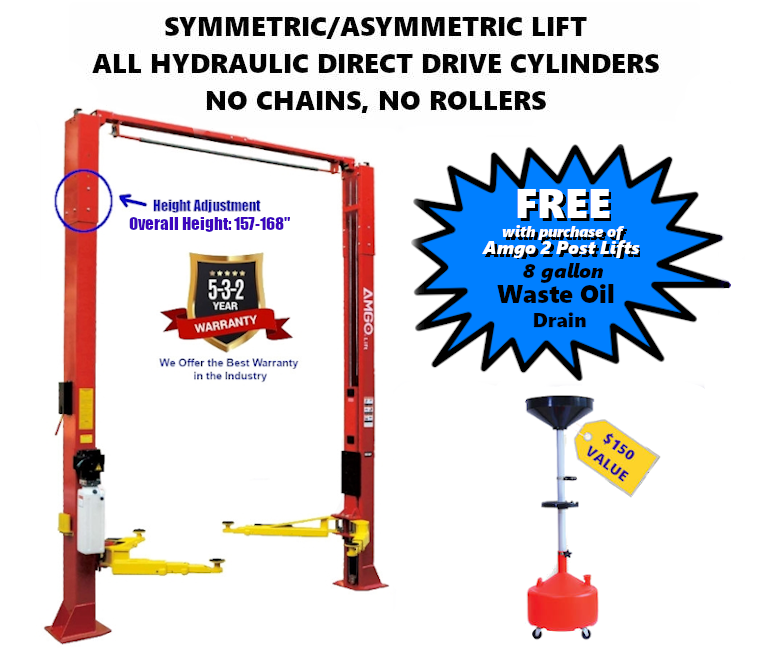

The 2 post OHX-10H lift is designed with asymmetric arms but also can be configured with symmetric height and width adjustment. Adjustable for high ceiling with extremely high lifting capacity up to 168".
Features Asymmetric Design Arms, Open Door Clearance
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
OHX-10H 10000lb 2 Post Car Lift Manual
Features
• Dual direct-drive hydraulic cylinders made to high standards
• Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
• Single point safety release, allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Single piece column allowing for easier installation
• Stackable tube adapters (set of 4) 1.5″, 2.5″, 5″
• Adjustable heights and width
• Anchor bolts and hardware included

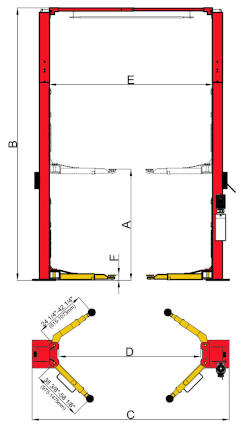

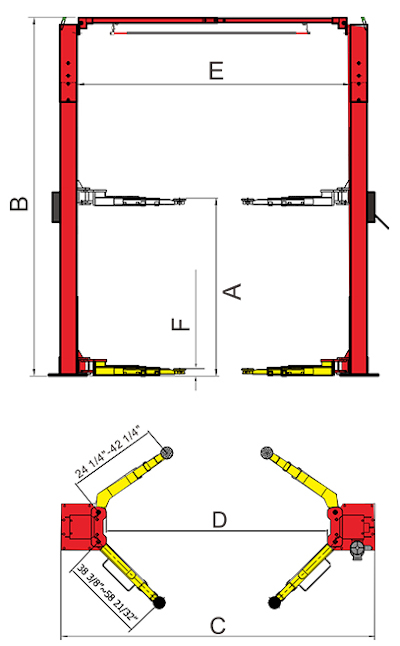

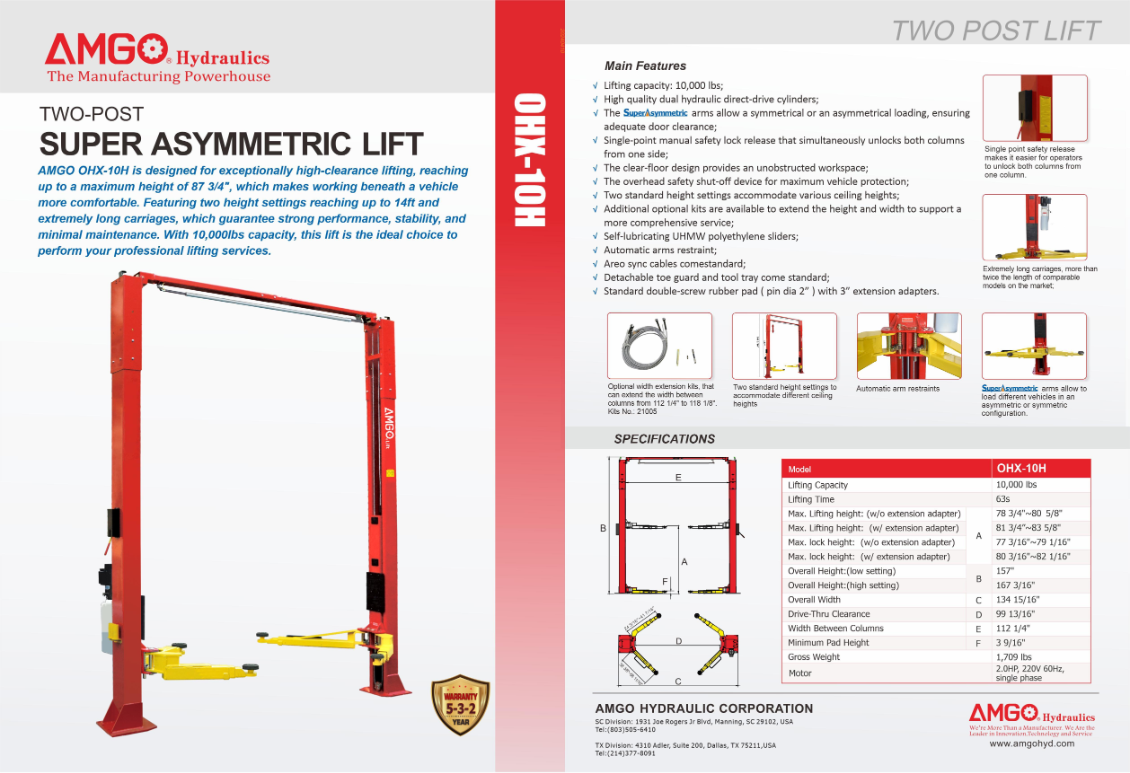

Specifications
Model OHX-10H
Lifting Capacity 10,000 lbs
Lifting Time 63 S
A: Lifting Height 78 3/4″ ~ 87 3/4″
B: Overall Height 157″~168″
C: Overall Width 135″ / 140 7/8″
D: Drive Thru Clearance 99 1/4″ / 105 1/8″
E: Width Between Columns 112 1/4″ / 118 1/8″
F: Minimum Pad Height 3 1/2″
Motor 2.0HP / 220V/60Hz, Single Phase
Gross Weight 1,744 lbs
Optional Accessories
- Optional Width Extension Kits
- Optional LED lights
- Optional Saddle adaptors perfect choice for wide size SUV vehicles
