The 10000lb capacity OH-10 features asymmetrical arms which makes it easier to enter and exit the vehicle reducing the chances of dinging or denting your doors. Comes with dual direct drive hydraulic cylinders, self-lubricating UHMW Polyethylene sliders and bronze bushings.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Dual direct drive hydraulic cylinders made to high standards
• Super-Asymmetric Arm design, makes finding the lift point of the car easier
• Single point safety release, allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Overhead safety shut-off device prevents vehicle damage
• Stackable tube adapters (set of 4) 1.5″, 2.5″, 5″
• Anchor bolts and hardware included

 Click links below for more info:

OH-10 2 Post Lift Manual

OH-10 2 Post Lift Brochure

Specifications

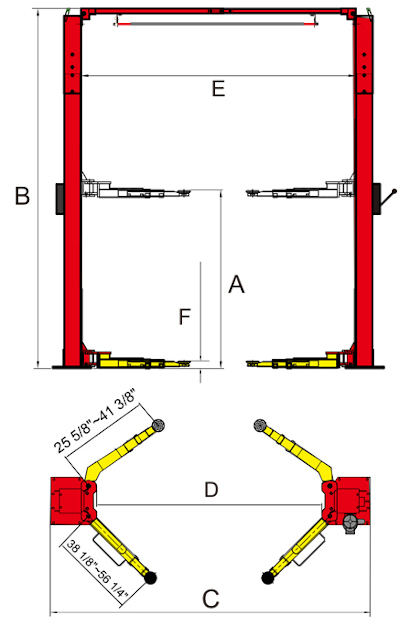

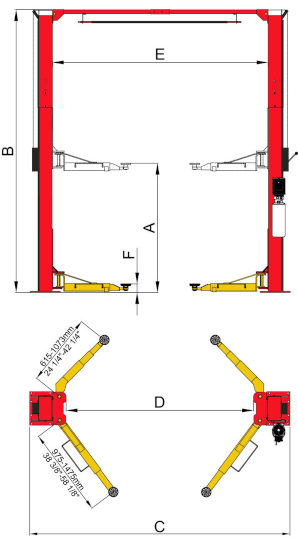

• Model     OH-10
• Lifting Capacity     10,000 lbs
• Lifting Time     57 S
• A: Lifting Height     71 1/2″ ~ 80 1/2″
• B: Overall Height     142 1/2″ /150 1/2″
• C: Overall Width     135″
• D: Drive Thru Clearance     99 1/2″
• E: Width Between Columns     112 1/4″
• F: Minimum Pad Height     3 1/2″
• Motor     2.0HP / 220V/60Hz, Single Phase
• Gross Weight     1,623 lbs
