2 Post Lift iDeal TP12KSC-DX

iDEAL TP12KSC-DX 12,000 lb. ALI certified heavy-duty 2 post lift is a premium symmetric-design, clear-floor vehicle lift, now including low profile swing arms, adjustable swivel pads and single point cable lock release.
SKU: TP12KSC-DX
Manufacturer part number: TP12KSC-DX
Manufacturer: iDEAL
$4,149.00

ALI ETL Certified lifts

WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.

WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.

WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.

CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!


**1 YEAR WARRANTY**

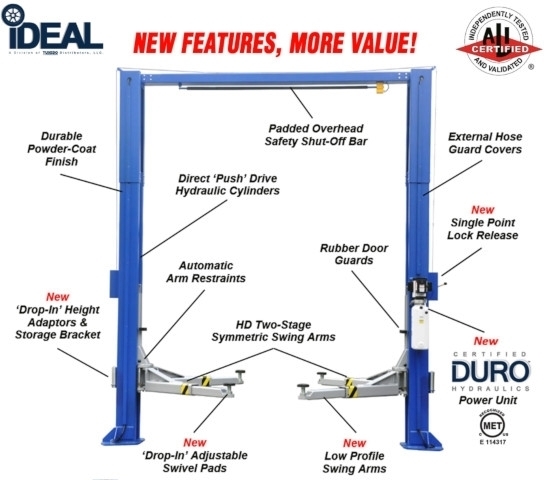

The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a premium symmetric-design, clear-floor vehicle lift with the latest design features, now including low profile swing arms, adjustable swivel pads and single point cable lock release. The symmetric arm configuration provides stable lifting, making it perfect for super duty and light duty trucks along withmost passenger cars. The direct ‘push’ drive cylinders, hose & door guards and automatic arm restraints complete the package for a premium, high quality lift, all at a great value!

Features

  • 12,000 LBS Capacity
  • NEW Low profile swing arm design

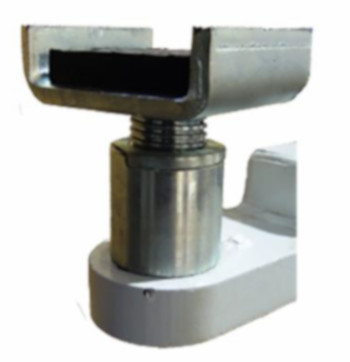

  • NEW Adjustable height swivel pads
  • NEW 2.6″ & 5″ stackable height adaptors
  • NEW Single point cable lock release
  • NEW Met UL/CSA certified duro power unit
  • Symmetric lift arms
  • Automatic arm restraints
  • Direct ‘push’ drive cylinders
  • External hose guards
  • Rubber door guards
  • Durable powder-coat finish
  • ALI Certified
  • Limited Warranty Policy – (5 YR Structural / 1 Yr Parts)

Specifications

Lift Model: TP12KSC-DX
Capacity: 12000 lbs
Height Overall: 168 1/2"
Width Overall w/power unit: 151 5/16"
Max Lift Height: 75"
Width Between Columns: 122"
Min Pad Height: 4 7/8"
Drive Thru Clearance: 109"
Lifting Speed: 50s
Symmetric/Asymmetric: Symmetric
Clear Floor/Floor Plate: Clear Floor
Short Arm Reach (min/max): 37 5/8" -57"
Long Arm Reach (min/max): Same
Narrow Bay Setting: NA
Max Load Per Arm: 3000lbs
Ceiling Height Required: 170"
Ship Weight: 2295lbs
Power: 220V - 20AMP - 1PH

2 Post Lift iDeal TP12KSC-DX Manual
