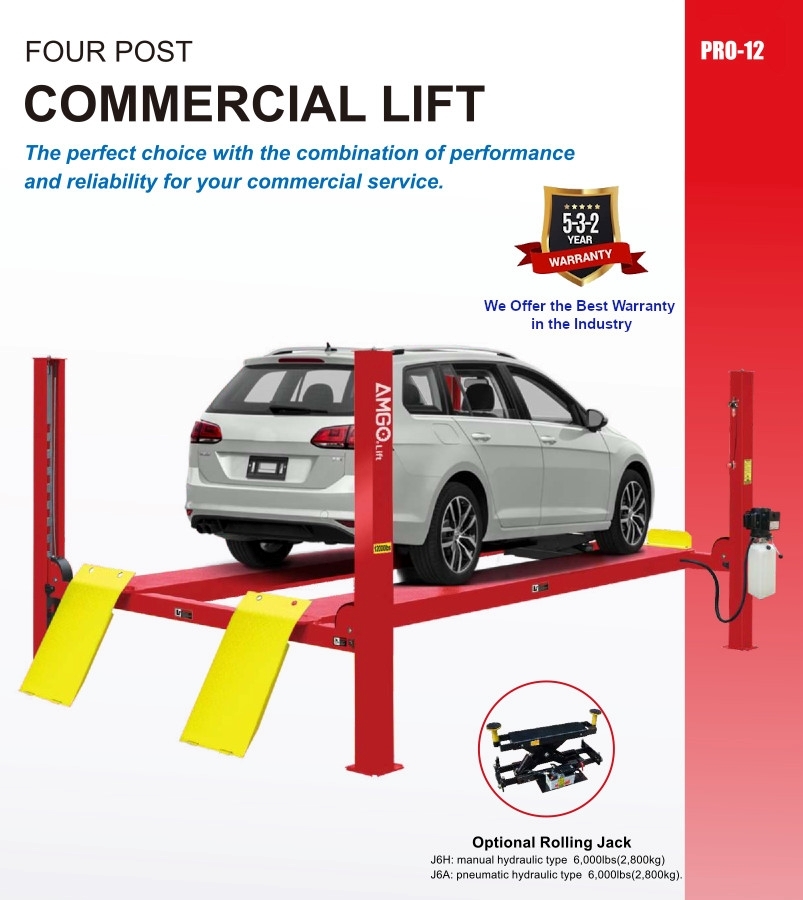

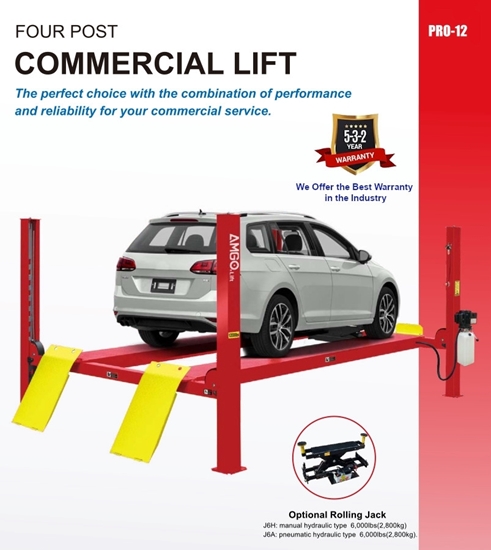

PRO-12 4 post lift allows for quick set-up for undercarriage repairs. Features many other service and safety capabilities to meet the needs of garage and shop owners. 12,000 lbs lifting capacity.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 12,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO-12 4 Post Lift Manual

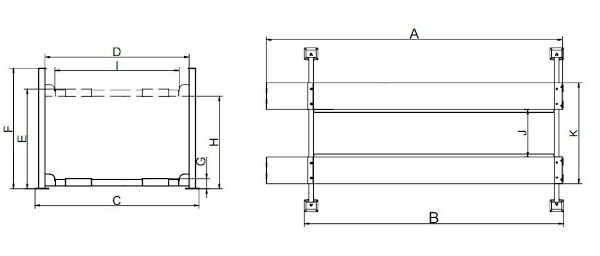

Specifications

• Model     PRO-12
• Style     Non-Alignment
• Lifting Capacity     12,000 lbs
• Lifting Time     63S
• A:Overall Length (Inc.Ramps)     236 5/8″
• B:Overall Length (No.Ramps)     200 3/4″
• C:Overall Width     126 1/4″
• D:Width Between Columns     112 1/4″
• E: Lifting Height     73 1/2″
• F: Overall Height: 86″
• G:Minimum Height     6 5/8″
• H: Runway Width  20″
• I: Drive-Thru Clearance  98 3/8″
• J: Width Between Runways  43 1/4″ Max  51 1/8″
• K: Min. Four Wheel Align  /
• L: Max. Four Wheel Align  /
• M: Max. Two Wheel Align  /
• Gross Weight     2,337lbs
• Motor     2.0HP, 220V/60Hz Single Phase

Optional Accessories

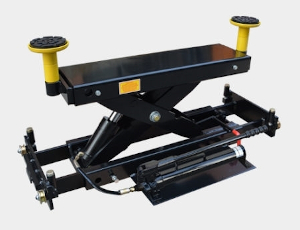

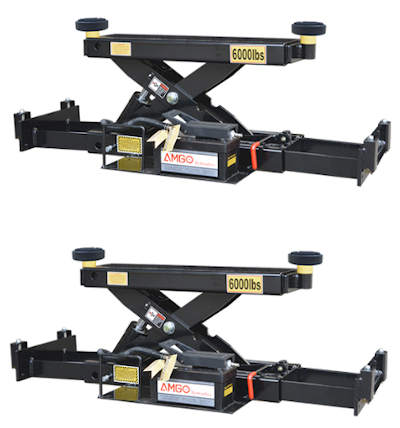

Rolling Jacks:

• J6H 6,000lbs manual control

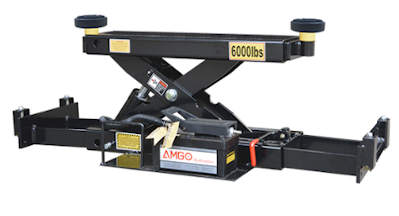

• J6A 6,000lbs pneumatic pump

Led lights: No. 40103
Extension kit: No. 41203
Air line kit: No. 40102
