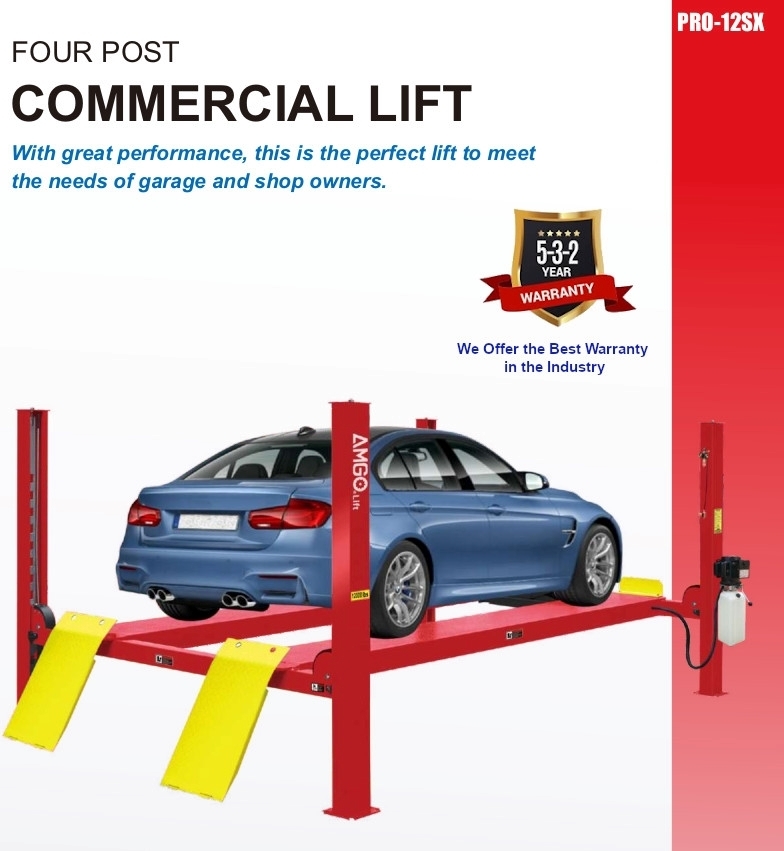

The PRO-12SX is perfect for working on regular everyday vehicles and features 12,000lbs capacity. With air-released safety locks for convenient operation and consistent reliability, this lift will more than meet your everyday service needs.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 12,000 lbs lifting capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self lock and cable breaking protection
• 3/8″ aircraft quality cable
• Optional adjustable turnplate pockets to fit different wheel bases
• Skid proof diamond platform
• Hydraulic cylinders are designed and Made to high quality standards, high quality NOK seals
• Strict quality control of cylinders with flow restrictors to keep a constant low speed
Optional Accessories
Rolling Jacks:
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
Led lights: No. 40103
Extension kit: No. 40903
Air line kit: No. 40102
PRO 12SX 4 Post Lift Manual
Specifications
Model: PRO-12SX
Style: Non-Alignment
Lifting Capacity: 12,000 lbs
Lifting Time: 45S

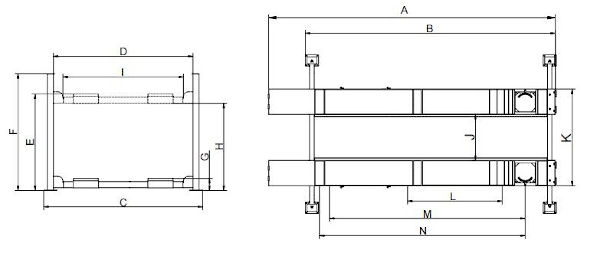

A: Overall Length (Inc.Ramps): 232 5/8″
B: Overall Length (No.Ramps): 196 3/4″
C: Overall Width: 132 1/8″
D: Width Between Columns: 118 1/8″
E: Max. Lifting Height: 73 1/2″
F: Overall Height: 86″
G: Minimum Height: 6 5/8″
H: Max. Underneath Height: 67 7/8″
I: Drive-Thru Clearance: 104 1/8″
J: Width Between Runways: 43 1/4″, Max. 53 3/4″
K: Outside Edge of Runways: 83 1/4″, Max. 93 3/4″
Gross Weight: 2,255lbs
Motor: 2.0HP, 220V/60Hz Single Phase
