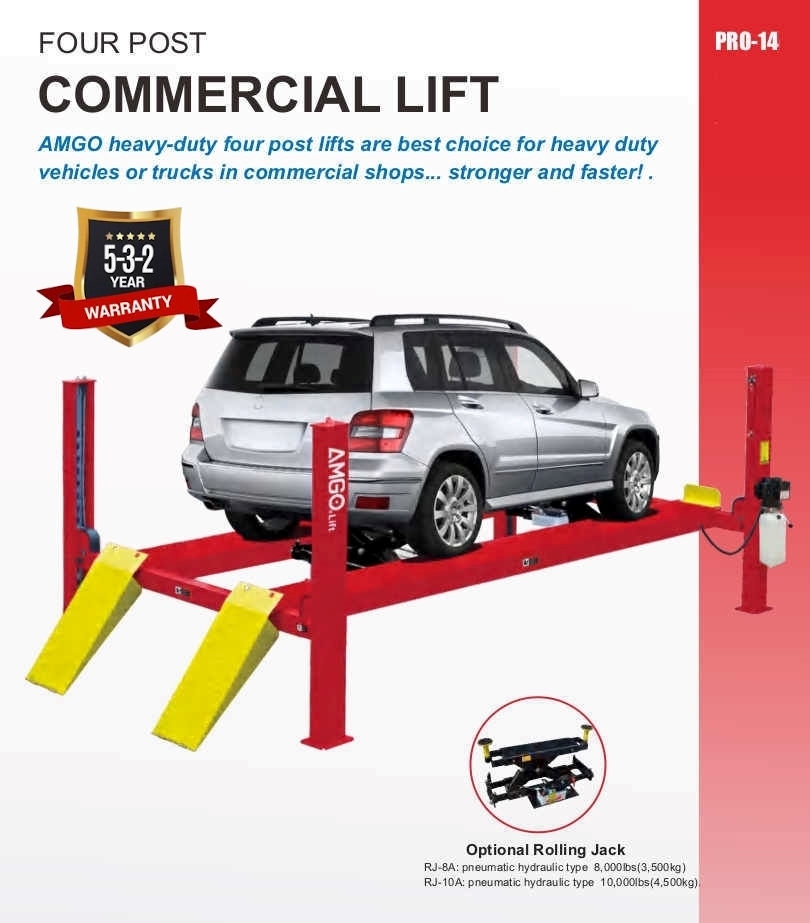

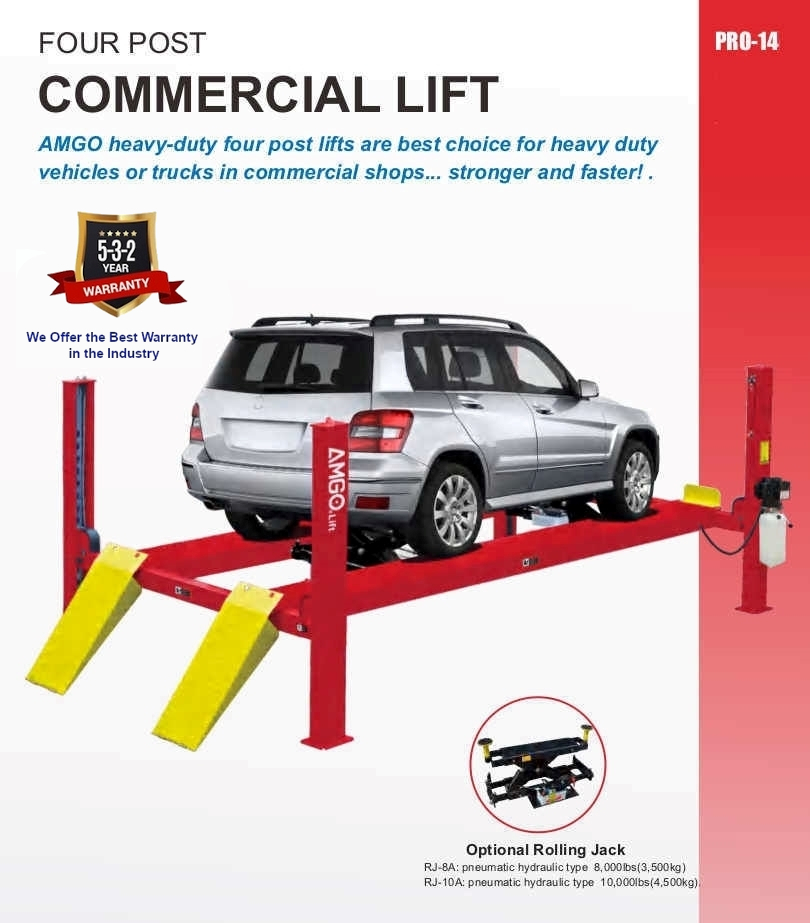

4 Post Lift 14000lb PRO-14 Amgo Hydraulics

The PRO-14 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service.
SKU: PRO-14
Manufacturer part number: PRO-14
Manufacturer: AMGO Hydraulics
$4,950.00

Amgo warrantyThe PRO-14 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO-14 4 Post Lift Manual

Specifications

  • Model     PRO-14
  • Style     Non-Alignment
  • Lifting Capacity     14,000 lbs (6,350 kg)
  • Lifting Time     76S
  • A: Overall Length (Inc.Ramps)     257 1/2″
  • B: Overall Length (No.Ramps)     216 1/2″
  • C: Overall Width     130 7/8″
  • D: Width Between Columns     116″
  • E: Lifting Height     73 1/2″
  • F: Overall Height     86″
  • G: Minimum Height 7 7/8″
  • H: Ruanway Width    20″
  • I: Drive Thru Clearance: 102 1/8″
  • J: Width Between Runways: 47″ Max 54 1/2″
  • K: Min Four Wheel Align: /
  • L: Max Four Wheel Align: /
  • M: Max Two Wheel Align: /
  • Gross Weight 2,818 lbs
  • Motor  2.0HP, 220V/60Hz Single Phase

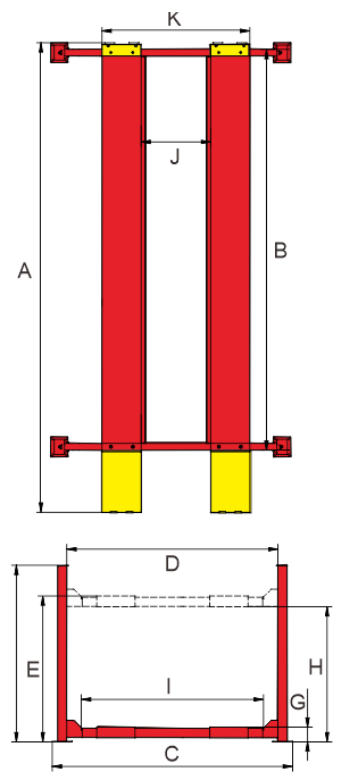

PRO 14 diagram 4 post lift

Optional Accessories

Rolling Jacks:

  • J6H 6,000lbs manual control
  • J6A 6,000lbs pneumatic pump

Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102

Amgo warrantyThe PRO-14 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO-14 4 Post Lift Manual

Specifications

  • Model     PRO-14
  • Style     Non-Alignment
  • Lifting Capacity     14,000 lbs (6,350 kg)
  • Lifting Time     76S
  • A: Overall Length (Inc.Ramps)     257 1/2″
  • B: Overall Length (No.Ramps)     216 1/2″
  • C: Overall Width     130 7/8″
  • D: Width Between Columns     116″
  • E: Lifting Height     73 1/2″
  • F: Overall Height     86″
  • G: Minimum Height 7 7/8″
  • H: Ruanway Width    20″
  • I: Drive Thru Clearance: 102 1/8″
  • J: Width Between Runways: 47″ Max 54 1/2″
  • K: Min Four Wheel Align: /
  • L: Max Four Wheel Align: /
  • M: Max Two Wheel Align: /
  • Gross Weight 2,818 lbs
  • Motor  2.0HP, 220V/60Hz Single Phase

PRO 14 diagram 4 post lift

Optional Accessories

Rolling Jacks:

  • J6H 6,000lbs manual control
  • J6A 6,000lbs pneumatic pump

Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102
