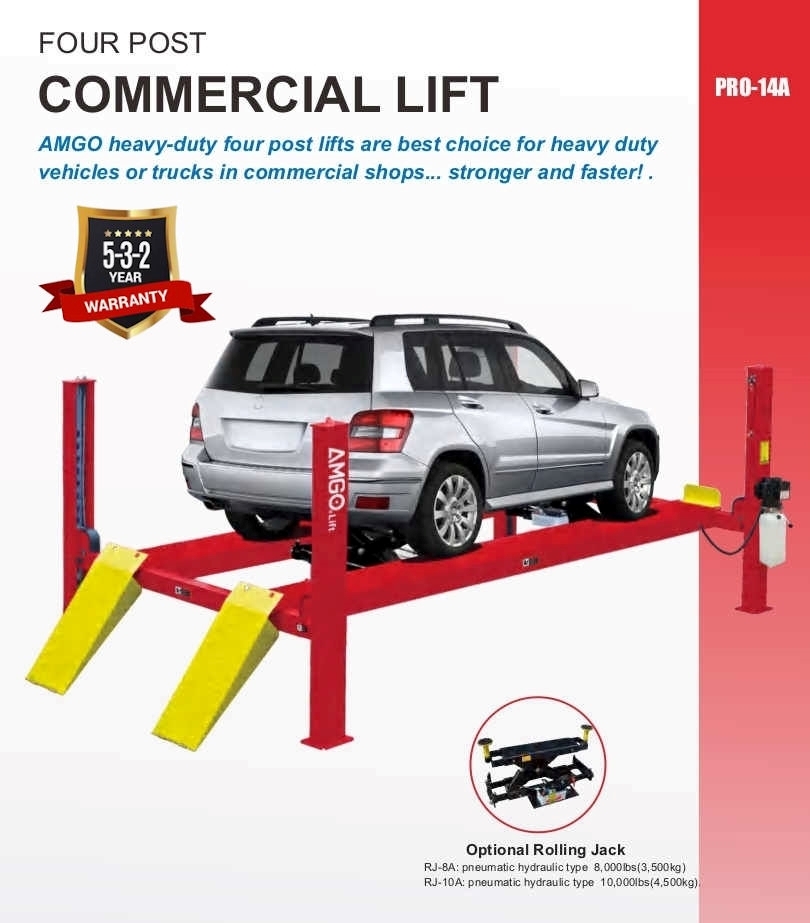

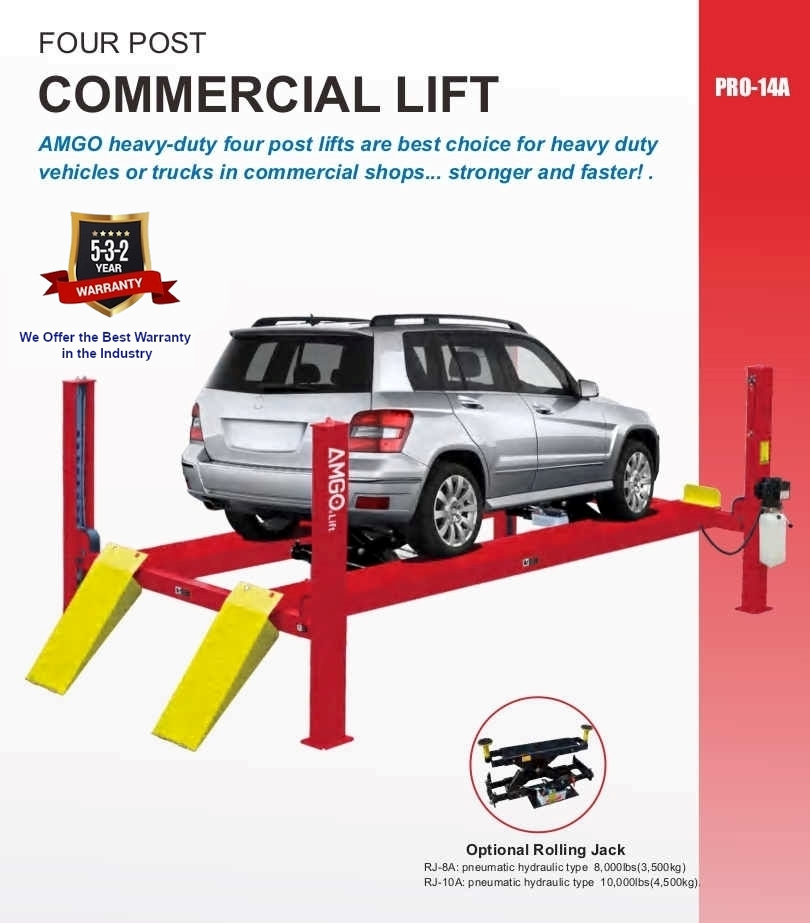

The PRO-14A provides the same lifting capacity as the PRO-14 but with turn tables to do alignment work. It is built to commercial grade standards which will provide many years of service.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
PRO-14A 4 Post Lift Manual
Specifications
Model: PRO-14A
Style: Alignment
Lifting Capacity: 14,000 lbs
Lifting Time: 76S

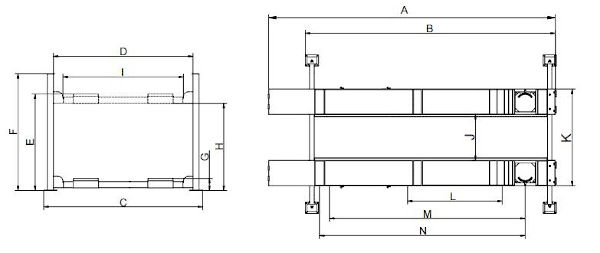

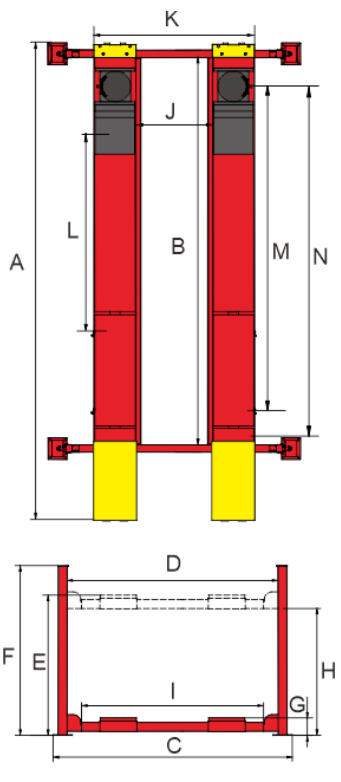

A: Overall Length (Inc.Ramps): 257″
B: Overall Length (No.Ramps): 216 1/2″
C: Overall Width: 130 7/8″
D: Width Between Columns: 116″
E: Max. Lifting Height: 75 3/8″
F: Overall Height: 86″
G: Minimum Height: 9 7/8″
H: Max. Underneath Height: 66 3/4″
I: Drive-Thru Clearance: 102 1/8″
J: Width Between Runways: 47″ (1194mm), Max. 54 1/2″
K: Outside Edge of Runways: 87″ (2210mm), Max. 94 1/2″
L: Min. Four Wheel Align: 92 1/2″
M: Max. Four Wheel Align: 169 5/8″
N: Max. Two Wheel Align: 175 1/4″
Gross Weight: 3,400 lbs
Motor: 2.0HP, 220V/60Hz Single Phase
Optional Accessories
Rolling Jacks
- RJ-8A: pneumatic hydraulic type 8,000lbs
- RJ-10A: pneumatic hydraulic type 10,000lbs
Turntable Kit: 40101
Turntable Adjustment Blocks: 40905
Led lights: No. 40103
Extension kit: No. 41403
Air line kit: No. 40102
