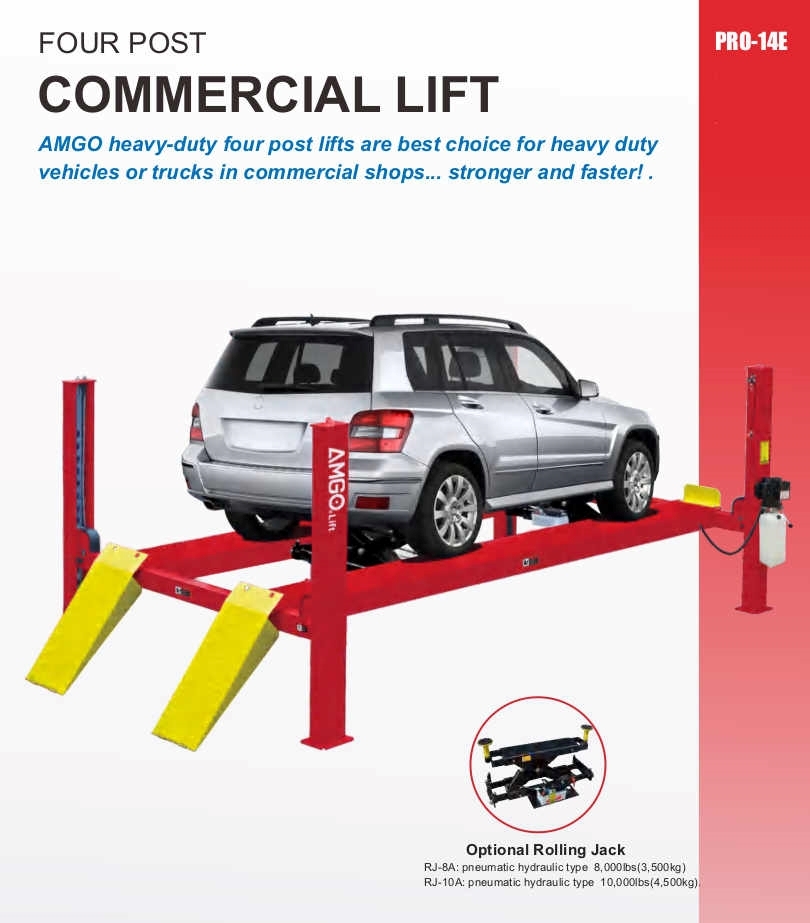

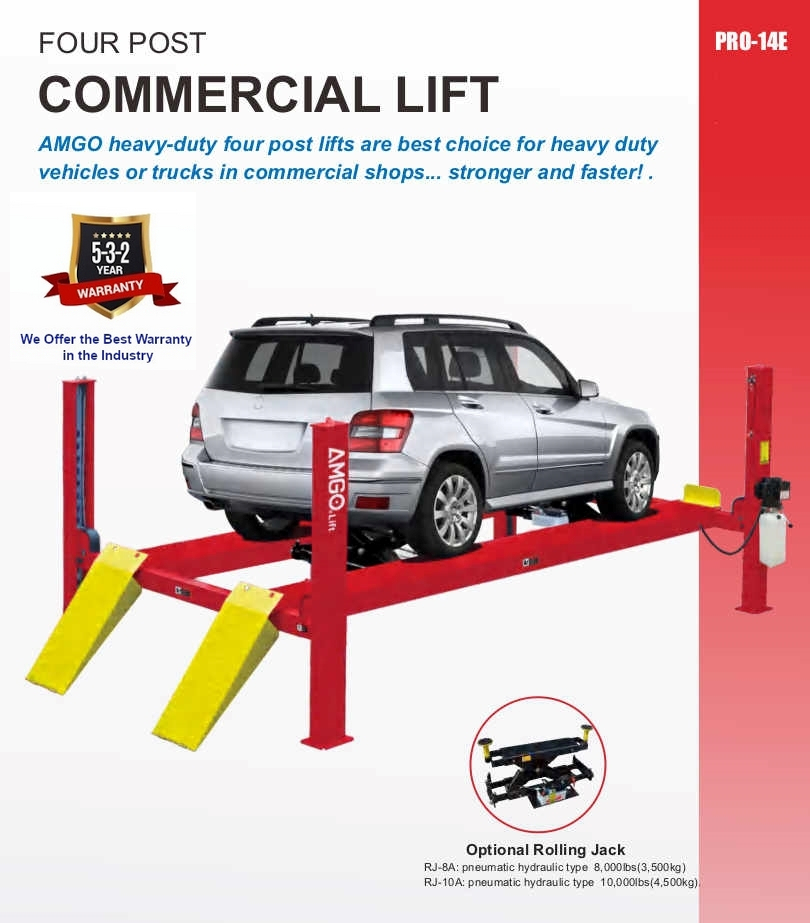

The PRO-14E 4 post lift features 14,000 lbs of lifting capacity and is built to commercial-grade standards. This lift will provide many years of service. Overall length with ramps is 286".
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
PRO-14E 4 Post Lift Manual
Specifications
Model: PRO-14E
Style: Non-Alignment
Lifting Capacity: 14,000 lbs
Lifting Time: 76S

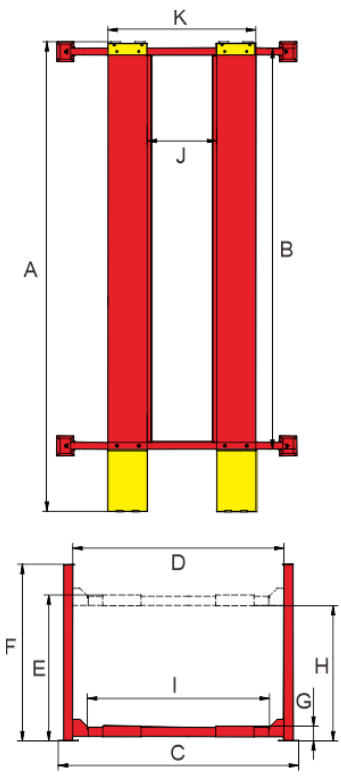

A: Overall Length (Inc.Ramps): 286″
B: Overall Length (No.Ramps): 245″
C: Overall Width: 130 7/8″
D: Width Between Columns: 116″
E: Max. Lifting Height: 73 1/2″
F: Overall Height: 86″
G: Minimum Height: 7 7/8″
H: Max.Underneath Height: 66 3/4″
I: Drive-Thru Clearance: 102 1/8″
J: Width Between Runways: 47″ (1194mm), Max. 54 1/2″
K: Outside Edge of Runways: 87″ (2210mm), Max. 94 1/2″
Gross Weight: 2,945lbs
Motor: 2.0HP, 220V/60Hz Single Phase
Optional Accessories
Rolling Jacks:
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
Led lights: No. 40103
Extension kit: No. 40901
Air line kit: No. 40102
