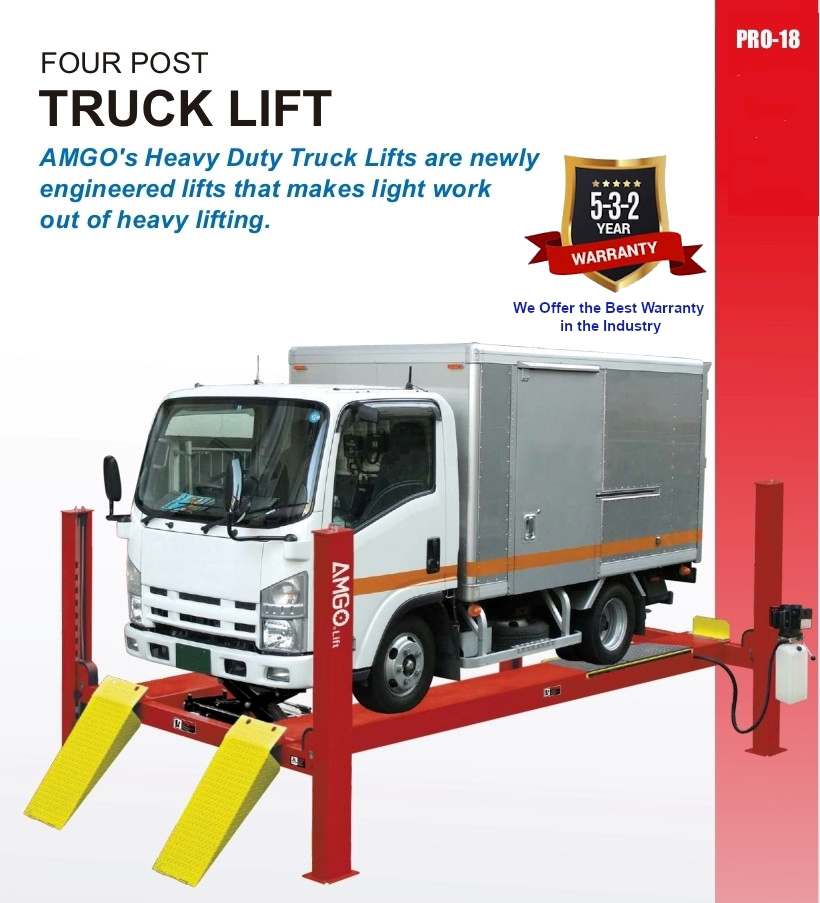

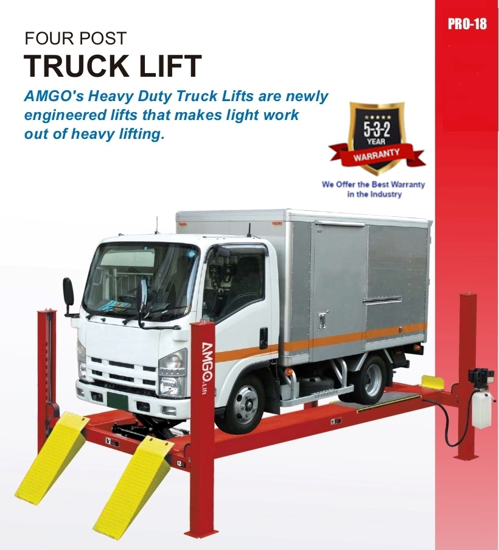

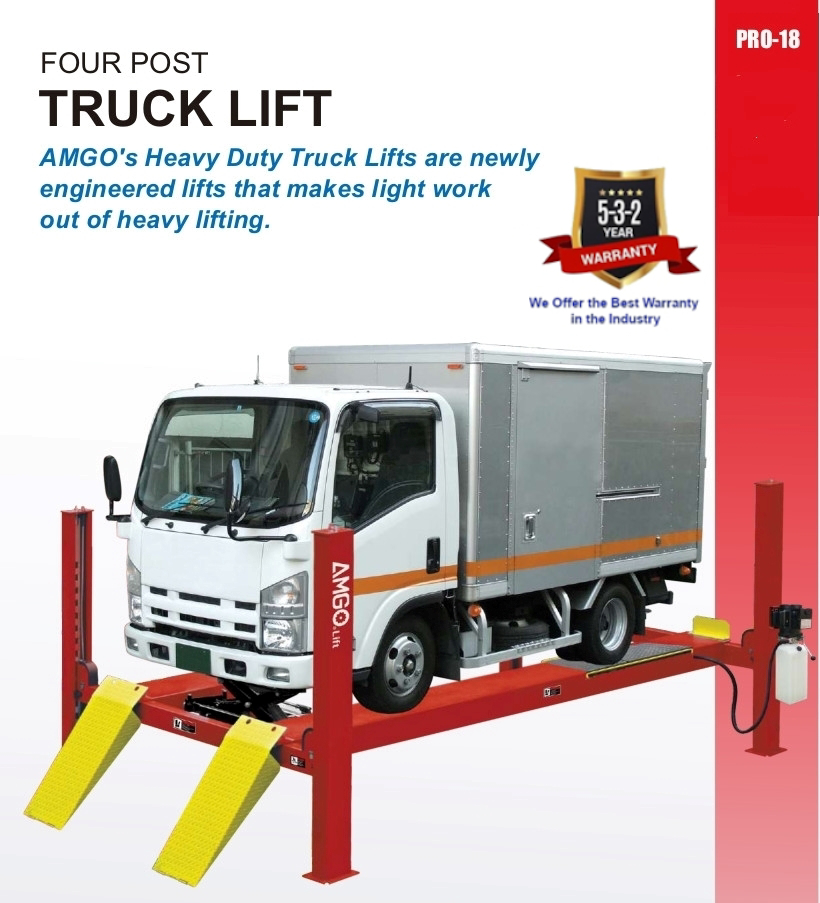

The PRO-18 is perfect for your heavy-duty commercial services. The newly engineered PRO-18 four post lift is stronger, more versatile, and easier to use than most other lifts. Capable of lifting up to 18,000 lbs.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 18,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
PRO 18 Heavy Duty 4 Post Lift Manual
Specifications
Model: PRO-18
Style: Non-Alignment
Lifting Capacity: 18,000 lbs
Lifting Time: 92S

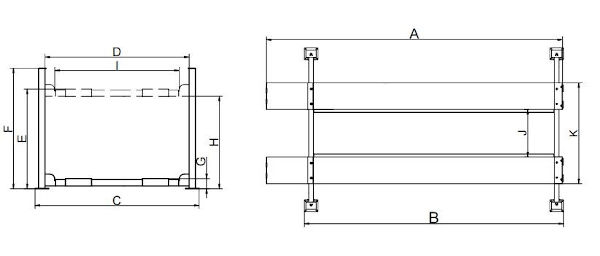

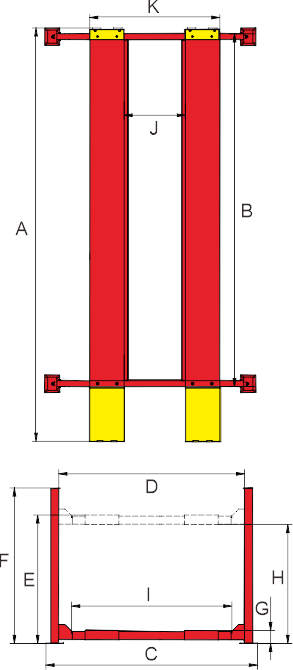

A: Overall Length (Inc.Ramps): 293 1/4″
B: Overall Length (No.Ramps): 252 1/4″
C: Overall Width: 137 1/8″
D: Width Between Columns: 122 3/8″
E: Max. Lifting Height: 73 1/2″
F: Overall Height: 86″
G: Minimum Height: 7 7/8″
H: Max. Underneath Height: 66 5/8″
I: Drive-Thru Clearance: 108 1/4″
J: Width Between Runways: 51 1/4″
K: Outside Edge of Runways: 95 1/4″
Gross Weight: 3,483lbs
Motor: 2.0HP, 220V/60Hz Single Phase
