AMGO’s PRO-30 is a step above the PRO-18, which is an entry level lift in the medium duty truck category, because of its 30,000lb lifting capacity. This lift is the perfect solution when working with construction equipment, semi trucks, and buses.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 30,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO 30 Heavy Duty 4 Post Lift Manual

Specifications

Model:     PRO-30
Lifting Time:     130s

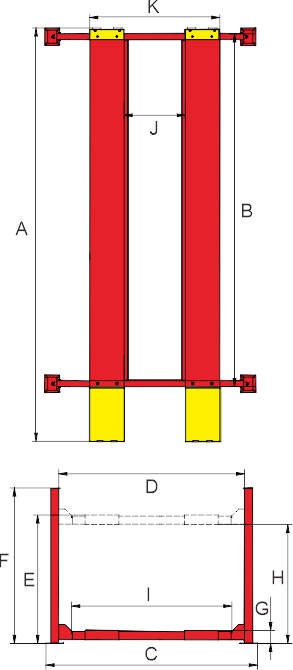

A: Overall Length (Inc. Ramps):     307 1/8″
B: Overall Length (No. Ramps):     256 1/2″
C: Overall Width:     149 3/8″
D: Width Between Columns:     131 3/4″
E: Max. Lifting Height:     74 3/4″
F: Overall Height:     91 7/8″
G: Minimum Height:     10 1/2″
H: Max. Underneath Height:     65 7/8″
I: Drive-Thru Clearance:     117 3/4″
J: Width Between Runways:     54 3/4″
K: Outside Edge of Runways:     102 3/4″
Gross Weight:     5,362 lbs
Motor:     2.0HP, 220V/60Hz Single Phase
