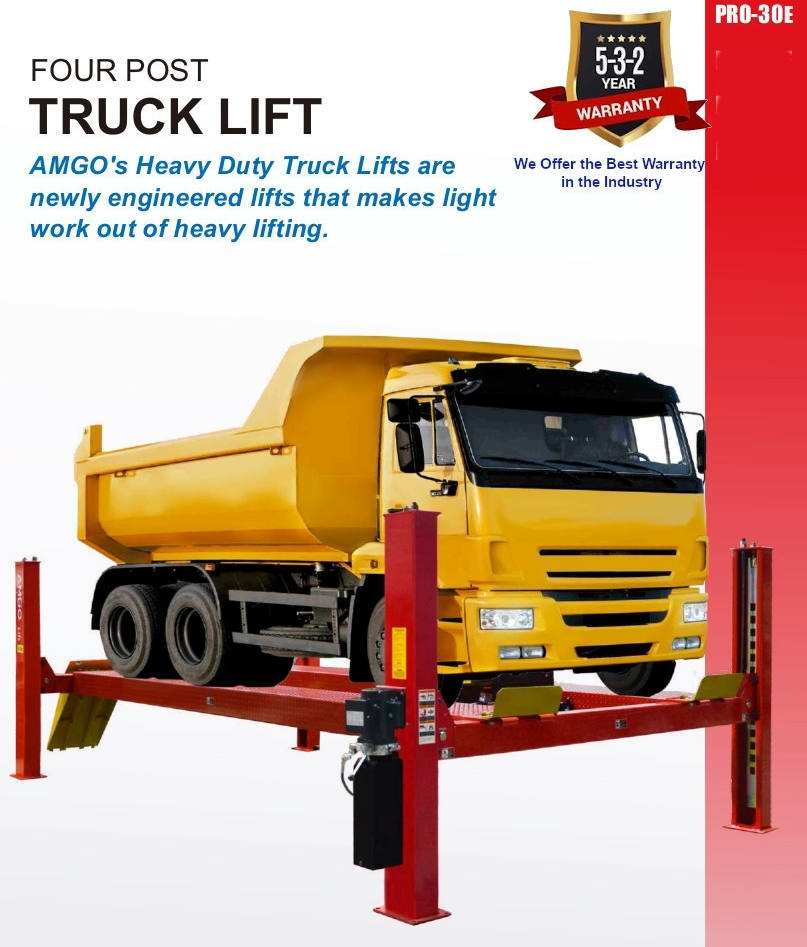

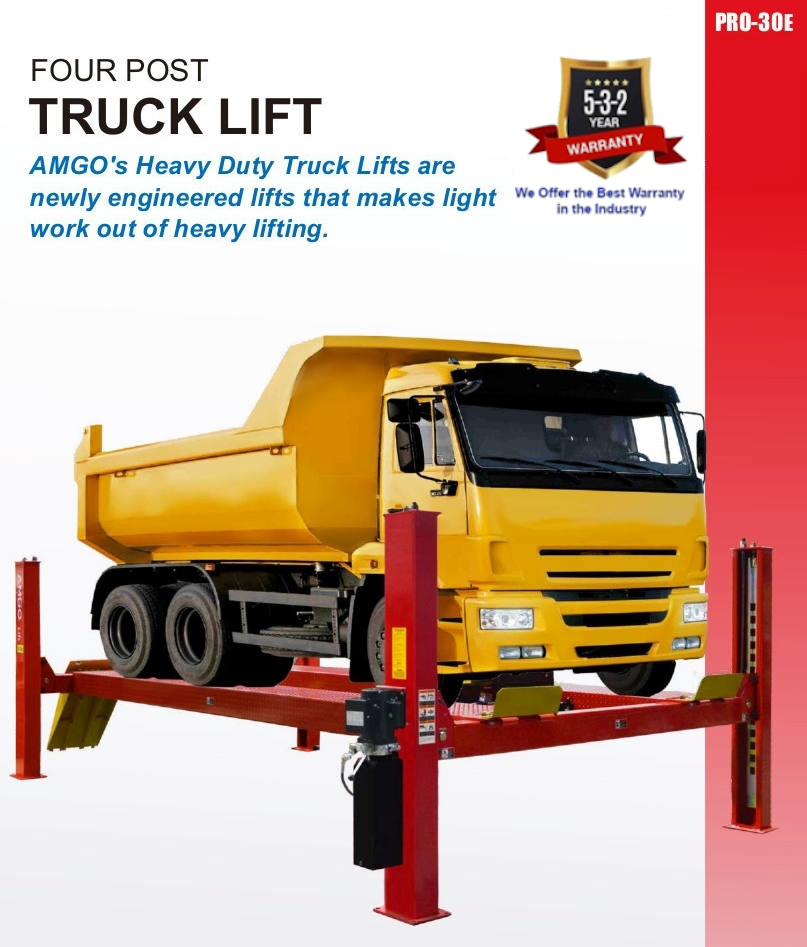

4 Post Lift 30000lb PRO-30E Amgo Hydraulics

With the same weight capacity as the PRO-30 but with a runway length of 367”, this lift can fit the longer vehicles for work purposes. Coming Soon.
SKU: PRO-30E
Manufacturer part number: PRO-30E
Manufacturer: Amgo Hydraulics
$13,500.00

Amgo warranty

With the same weight capacity as the PRO-30E but with a runway length of 367”, this lift can fit the longer vehicles for work purposes. Coming Soon.



5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 30,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO 30E Heavy Duty 4 Post Lift Manual

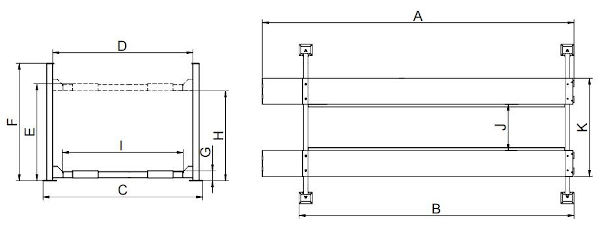

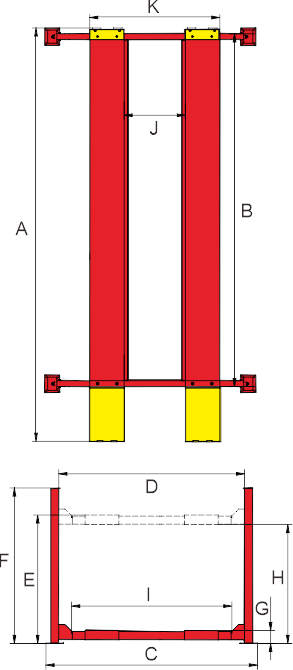

Specifications

  • Model     PRO-30E
  • Lifting Time     116s
  • A: Overall Length (Inc. Ramps)     367 1/8″ (9325mm)
  • B: Overall Length (No. Ramps)     256 1/2″ (6514mm)
  • C: Overall Width     149 3/8″ (3794mm)
  • D: Width Between Columns     131 7/8″ (3348mm)
  • E: Lifting Height     74 7/8″ (1900mm)
  • F: Overall Height     87 7/8″ (2232mm)
  • G: Minimum Height     10 1/2″ (265mm)
  • H: Runway Width     24″ (610mm)
  • Gross Weight     6,364 lbs (2,887 kg)
  • Motor     2.0HP, 220V/60Hz Single Phase

Amgo warranty

With the same weight capacity as the PRO-30E but with a runway length of 367”, this lift can fit the longer vehicles for work purposes. Coming Soon.



5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 30,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

PRO 30E Heavy Duty 4 Post Lift Manual

Specifications

  • Model     PRO-30E
  • Lifting Time     116s
  • A: Overall Length (Inc. Ramps)     367 1/8″ (9325mm)
  • B: Overall Length (No. Ramps)     256 1/2″ (6514mm)
  • C: Overall Width     149 3/8″ (3794mm)
  • D: Width Between Columns     131 7/8″ (3348mm)
  • E: Lifting Height     74 7/8″ (1900mm)
  • F: Overall Height     87 7/8″ (2232mm)
  • G: Minimum Height     10 1/2″ (265mm)
  • H: Runway Width     24″ (610mm)
  • Gross Weight     6,364 lbs (2,887 kg)
  • Motor     2.0HP, 220V/60Hz Single Phase
