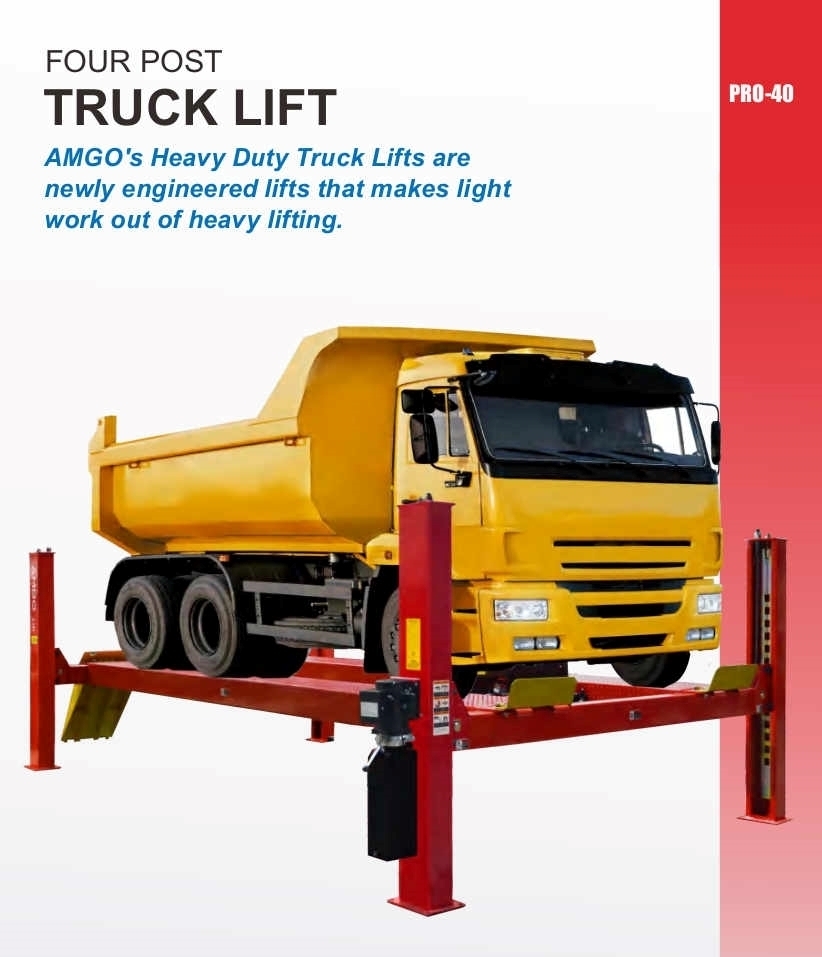

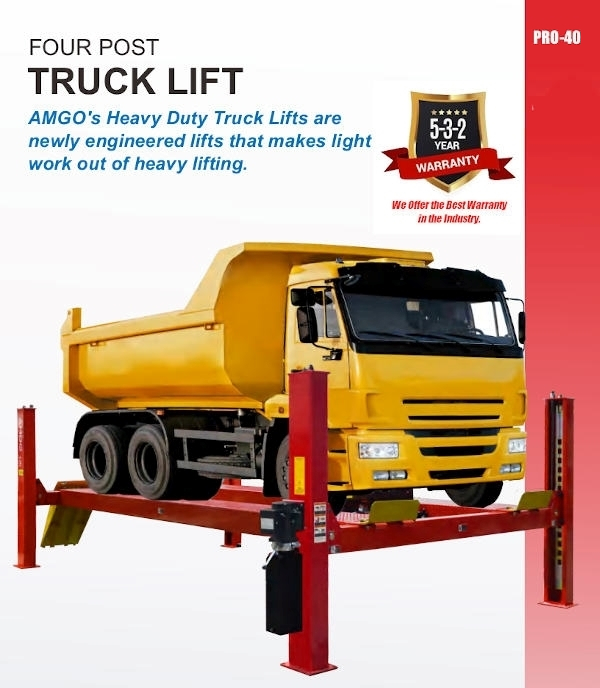

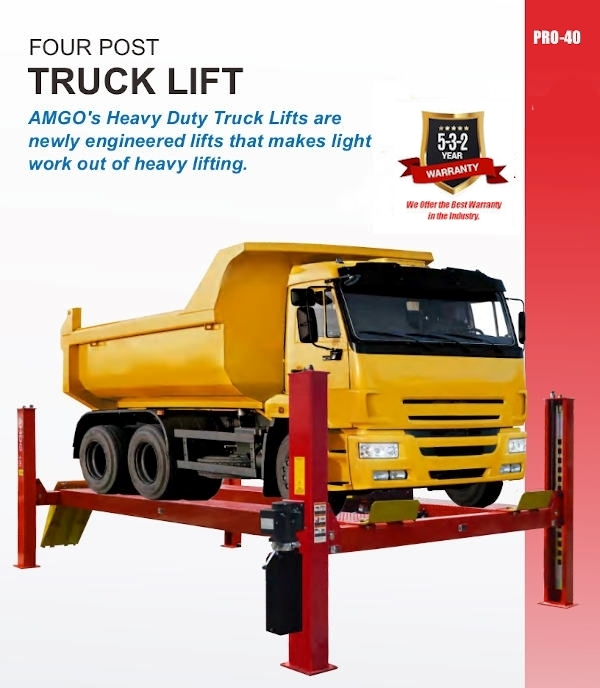

The PRO-40 is AMGO’s heaviest-duty truck lift. This makes it the most powerful lift out of our selection with a 40,000lb lifting capacity. Featuring a high-quality design with safety features to ensure safe operation, anyone working on a massive vehicle should consider this machine.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 40,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
Click links below for more info:
PRO-40 4 Post Lift Manual
PRO-40 4 Post Lift Brochure
Specifications
Model: PRO-40
Lifting Time: 176s

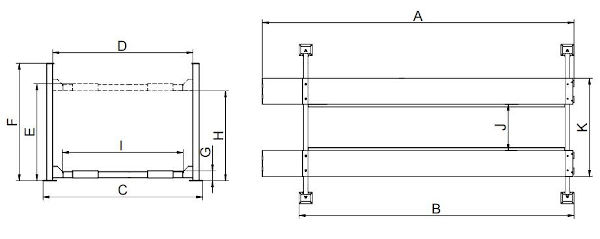

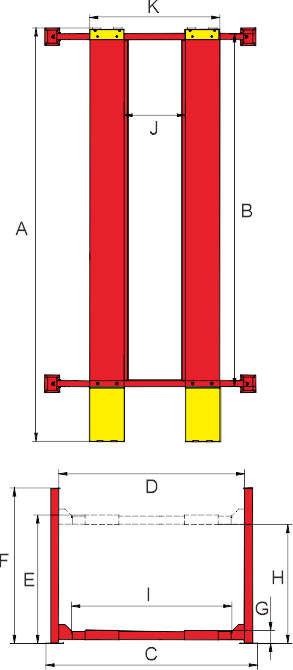

A: Overall Length (Inc. Ramps): 366 1/8″
B: Overall Length (No. Ramps): 315 1/2″
C: Overall Width: 161 3/8″
D: Width Between Columns: 143 7/8″
E: Max. Lifting Height: 74 3/4″
F: Overall Height: 91 7/8″
G: Minimum Height: 10 1/2″
H: Max. Underneath Height: 65 7/8″
I: Drive-Thru Clearance: 129 7/8″
J: Width Between Runways: 58 7/8″
K: Outside Edge of Runways: 114 7/8″
Gross Weight 8,320 lbs
Motor 2.0HP, 220V/60Hz Single Phase
