4 Post Lift 40000lb PRO-40E Amgo Hydraulics

PRO-40E


SKU: PRO-40E
Manufacturer part number: PRO-40E
Manufacturer: AMGO Hydraulics
$23,995.00

Amgo warranty

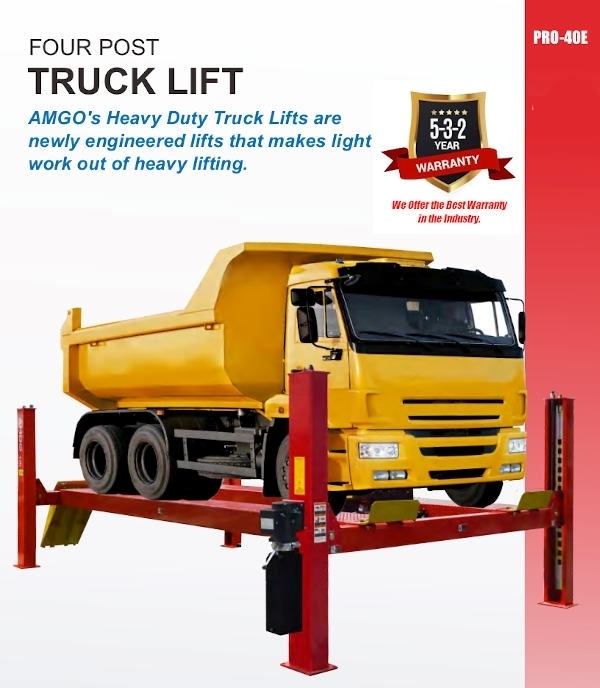

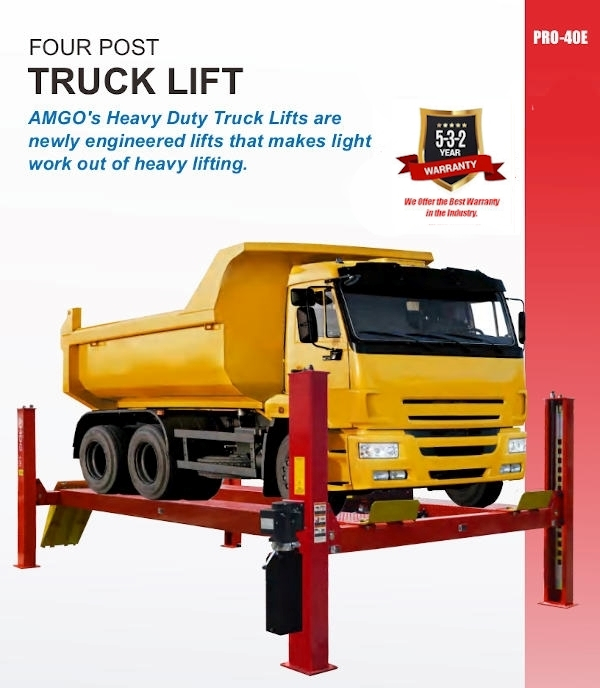

The PRO-40E has a 40,000lb capacity that comes with extended runway ramps. With a runway length of 374” it can fit the longest vehicles out there. Coming Soon.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 40,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed


Specifications

Model:     PRO-40E
Lifting Time:     176s

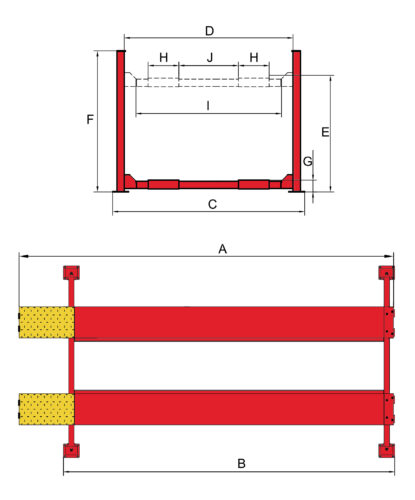

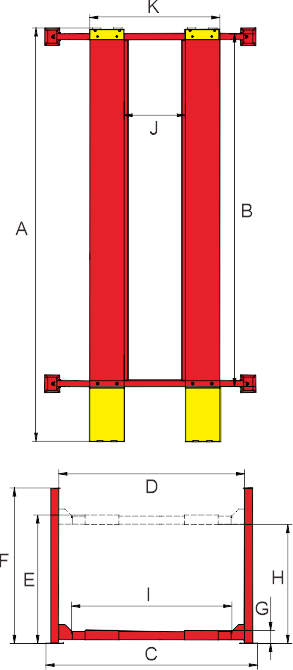

A: Overall Length (Inc. Ramps):     425 1/8″
B: Overall Length (No. Ramps):     374 1/2″
C: Overall Width:     161 3/8″
D: Width Between Columns:     143 7/8″
E: Max. Lifting Height:     74 3/4″
F: Overall Height:     91 7/8″
G: Minimum Height:     10 1/2″
H: Max. Underneath Height:     65 7/8″
I: Drive-Thru Clearance:     129 7/8″
J: Width Between Runways:     58 7/8″
K: Outside Edge of Runways:     114 7/8″
Gross Weight:     9,312 lbs
Motor:     2.0HP, 220V/60Hz Single Phase

PRO 40E Semi Truck Bus Construction Vehicle Lift



• Optional Rolling Jacks:
– RJ-20A 20,000lbs pneumatic pump

Amgo warranty

The PRO-40E has a 40,000lb capacity that comes with extended runway ramps. With a runway length of 374” it can fit the longest vehicles out there. Coming Soon.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 40,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/4″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed


Specifications

Model:     PRO-40E
Lifting Time:     176s
A: Overall Length (Inc. Ramps):     425 1/8″
B: Overall Length (No. Ramps):     374 1/2″
C: Overall Width:     161 3/8″
D: Width Between Columns:     143 7/8″
E: Max. Lifting Height:     74 3/4″
F: Overall Height:     91 7/8″
G: Minimum Height:     10 1/2″
H: Max. Underneath Height:     65 7/8″
I: Drive-Thru Clearance:     129 7/8″
J: Width Between Runways:     58 7/8″
K: Outside Edge of Runways:     114 7/8″
Gross Weight:     9,312 lbs
Motor:     2.0HP, 220V/60Hz Single Phase

PRO 40E Semi Truck Bus Construction Vehicle Lift



• Optional Rolling Jacks:
– RJ-20A 20,000lbs pneumatic pump
