Need a 9K lb Capacity Lift?
The AMGO 408-P is a space-saving powerhouse, ideal for shops and home car ports with limited floor space. It requires no special foundation or complicated installation. The 408-P is portable with the optional caster kit, and does not need to be anchored. It is the perfect choice for commercial shops or residential car ports. Features 8,000 lbs capacity.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• Fits under 10' ceilings
• 8,000 lbs. capacity, which is perfect for light-duty vehicles
• AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column, simultaneously.
• Double-S shaped columns help increase the columns strength
• Skid proof diamond platform provides traction for the tires to stay put.
• Flexible Design: The power side column can be installed at any corner
• Steel ramps included
Click links below for more info:
408-P 4 Post Parking Lift Manual

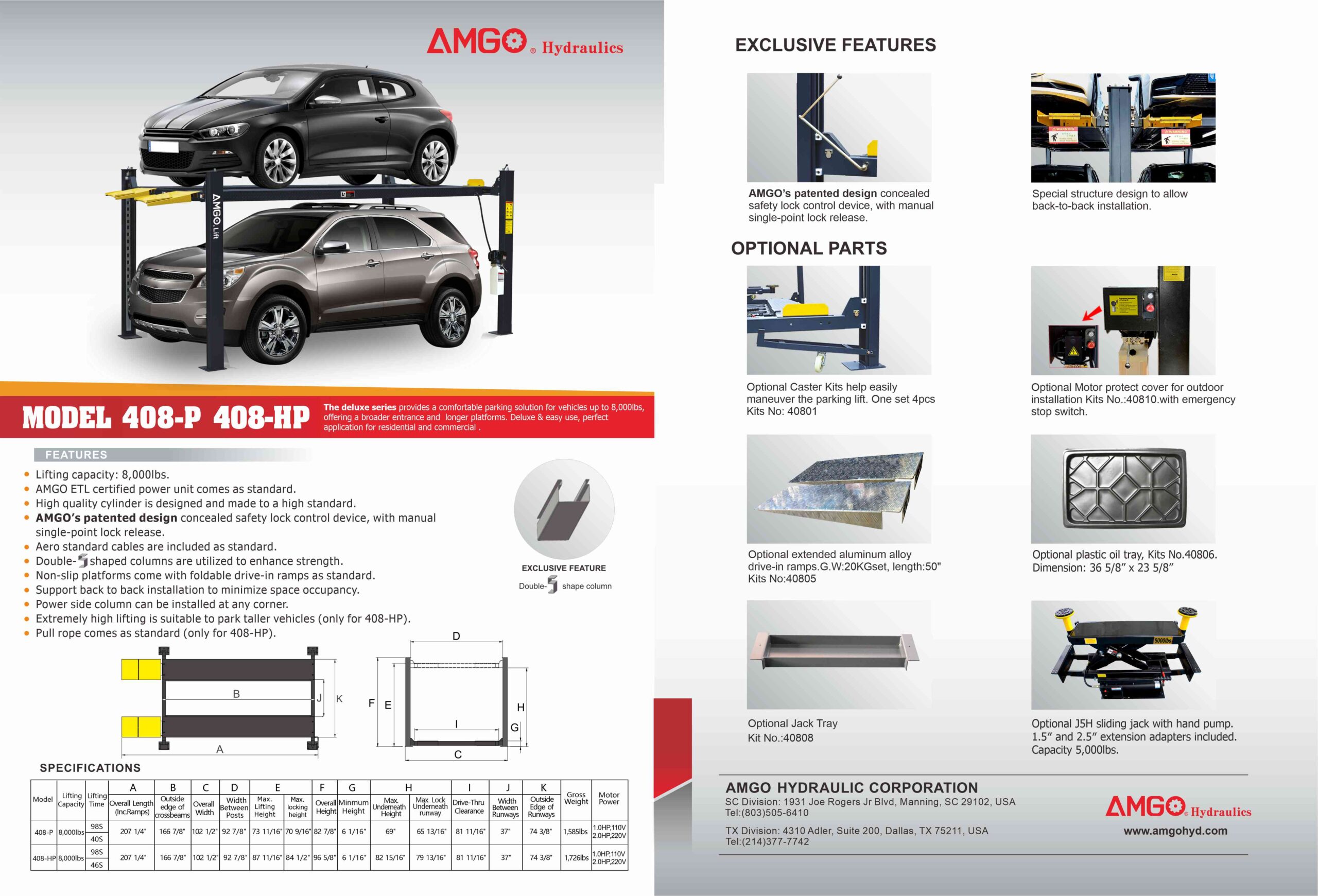

408-P 4 Post Parking Lift Brochure
Lift Lock Heights

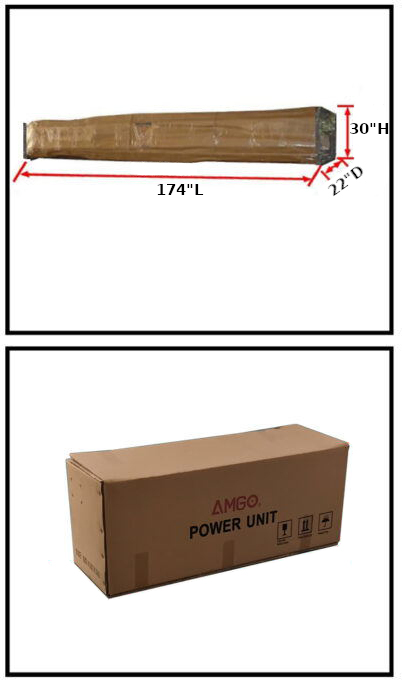

Shipping Packaging and Dimensions

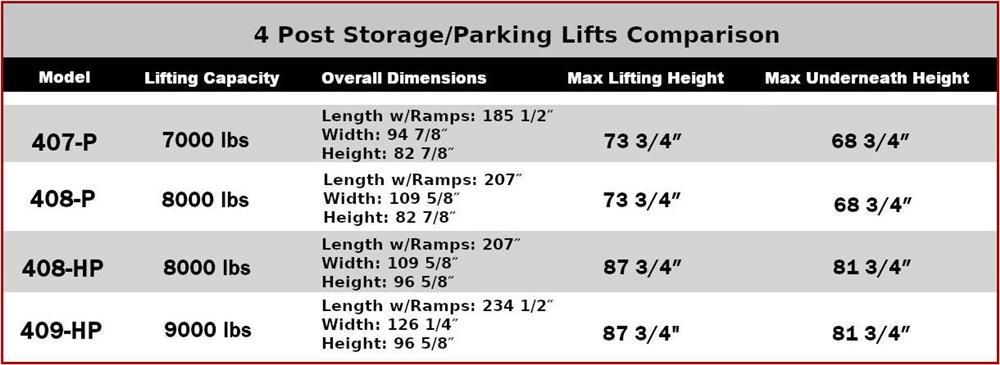

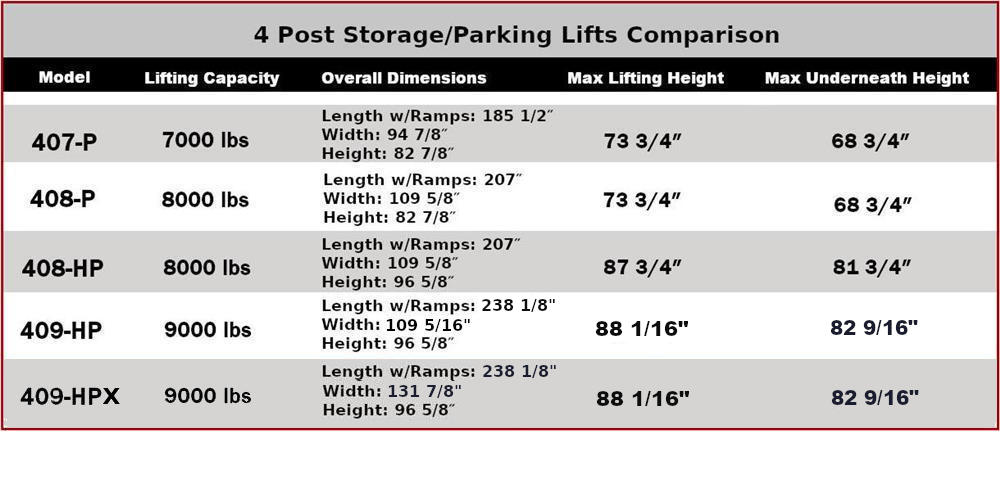

NEW! Compare 4 Post Parking Lift Specs Here!

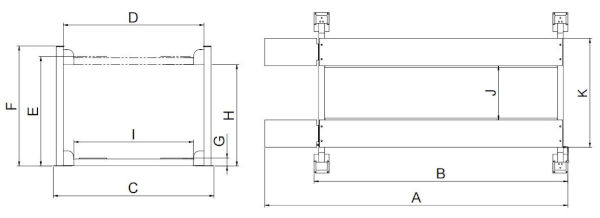

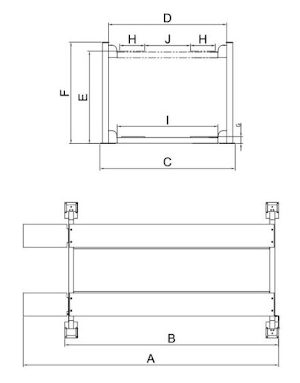

Specifications
Model 408-P
Lifting Capacity: 8,000lbs
Lifting Time: 98 s (110v) / 48 s (220v)

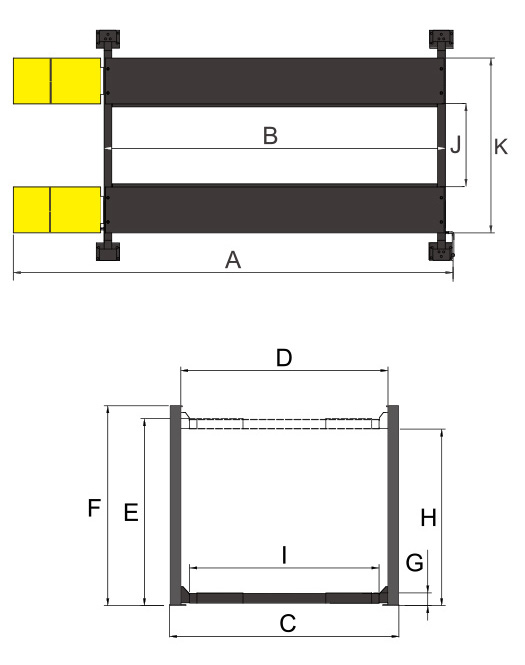

A: Overall Length (Inc Ramps): 207″
B: Overall Length (No ramps): 173 1/4″
C: Overall Width: 109 5/8″
D: Width Between Columns: 96″
E: Max. Lifting Height: 73 3/4″
F: Overall Height: 82 7/8″
G: Minimum Height: 6 1/8″
H: Max. Underneath Height 69″
I: Drive-Thru Clearance: 81 5/8″
J: Width Between Runways: 37″
K: Outside Edge of Runways: 74 3/8″
Gross Weight: 1,649 lbs
Motor: 1.0HP 110V/60Hz; 2.0HP 220V/60Hz (optional)
