The AMGO 407-P is a space-saving powerhouse, ideal for shops and home car ports with limited floor space. The 407-P requires no special foundation or complicated installation. The 407-P is the perfect choice for commercial shops or residential car ports. Features 7,000 lbs capacity.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

•  Fits under 10' ceilings
•  7,000 lbs. capacity, which is perfect for light-duty vehicles
•  AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column, simultaneously.
•  Double-S shaped columns help increase the columns strength
•  Skid proof diamond platform provides traction for the tires to stay put.
•  Flexible Design: The power side column can be installed at any corner
•  Steel ramps included

407-P Parking Lift Manual

Lift Lock Heights

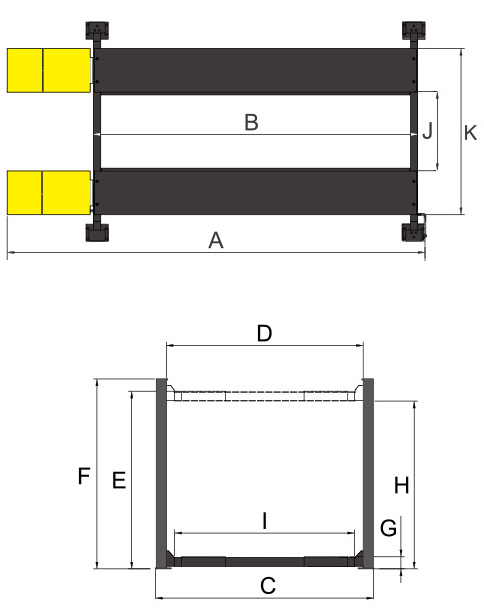

Specifications

Model     407-P
Lifting Capacity     7,000lbs
Lifting Time     68s(110V)  26s(220V)
A: Overall Length (Inc Ramps)     185 1/2″
B: Overall Length (No Inc. ramps)     152″
C: Overall Width     98 3/4″
D: Width Between Posts     85 3/8″
E: Max. Lifting Height     73 3/4″
F: Overall Height     82 7/8″
G: Minimum Height     5 3/8″
H: Max. Underneath Height     69 3/4″
I: Drive-Thru Clearance     77″
J: Width Between Runways     37″
K: Outside Edge of Runways     74 3/8″
Gross Weight     1,543lbs
Motor     1.0HP 110V/60Hz;  2.0HP 220V/60Hz
