Low Profile Design3 Safety Lock PositionsPowder Coat FinishSmooth Sliding OperationHand Pump (no air needed)3500 lb capacity allows passenger cars and most light trucks1 1/2" and 5" extension included (set of 2 each)Adjustable Width - fits most lifts
Max Capacity: 3500 lbsLift Height: 3.5" - 11.4"Lift Height 1 1/2" extension: 5.0" - 12.9"Lift Height 5" extension: 8.50"-16.40"Arm Extension: 33.90" - 59.80"Base Adjustability: 30.90 -45.70"Pad Height above Runway: 3.50"Weight: 307lbs
WE HAVE 12 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.
WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.
WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.
CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!

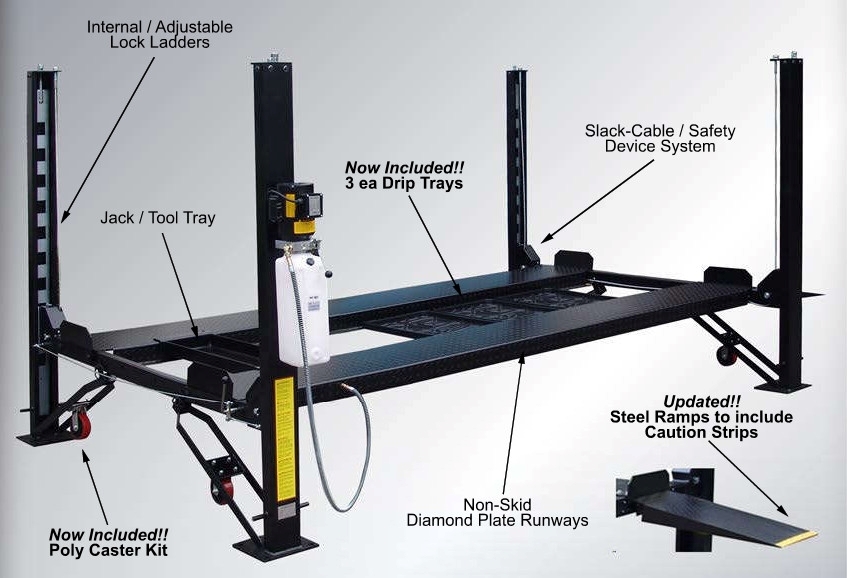

• 8,000 lbs.capacity• High Quality Service/Storage Lifts• Slack-Cable/Safety Device System• Internal Lock Ladder design• Non-Skid Diamond Plate Runways• Adjustable Lock Ladder leveling• Single Point, Manual Lock release• Powdercoat finish• Steel approach ramps• Poly Caster Kit Included• 3 Drip Trays Included• Jack/Tool Tray Included
• Lifting Capacity: 8,000lbs• Lifting Height: 74.8"• Overall Length w/Ramps: 207.3"• Overall Length w/No Ramps: 175.5"• Overall Width: 103.5"• Runway Tread Width: 18.7"• Runway Length: 165.5"• Runway Height: 4.3"• Column Height: 86"• Clearance between Columns: 94.4"• Clearance between Runways: 37.2"• Outside Runway to Outside Runway: 74.8"• Clearance Under Runways: 70"• Drive Thru Width: 80"• Locking Positions: 10• Base Plate Size: 10" x 12"• Power: 110V-15amp /1PH• Ship Weight: 1695lbs
