Alignment Scissor Lift 8 Ton AX-16A Amgo Hydraulics

The AMGO AX-16A Alignment Scissor Alignment Lift will expand your shop’s capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 8 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.
SKU: AX-16A
Manufacturer part number: AX-16A
Manufacturer: Amgo Hydraulics
$10,795.00

Amgo warrantyThe AMGO AX-16A Alignment Scissor Alignment Lift will expand your shop’s capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 8 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform

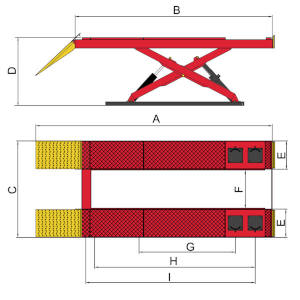

AX16A diagram

Alignment Scissor Lift 8 Ton AX-16A Manual

Specifications

Model     AX-16A
Style     Alignment
Lifting Capacity     16,000 lbs (7,257 kg)
Lifting Time     106S
A1: Lifting Height     73 5/8″ (1870mm)
A2: Minimum Height     13″ (330mm)
B: Runway Length     213 3/4″ (5428mm)
C: Overall Width     94 1/8″ (2390mm)
D: Runway Width     24 5/8″ (625mm)
E: Overall Length(Inc Ramps)     274 1/8″ (69634mm)
Motor     2.0HP
Gross Weight     6,349lbs (2,880 kg)

Optional Accessories:


– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump
- Turnplate: No. 40101
- LED lights: No. 40103

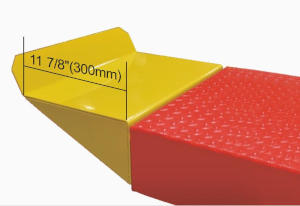

- Extension kit: No. PX002

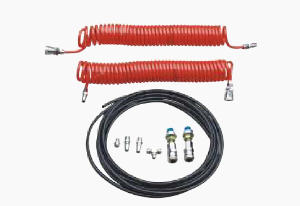

- Airline kit: No. PX004

Amgo warrantyThe AMGO AX-16A Alignment Scissor Alignment Lift will expand your shop’s capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 8 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform

AX16A diagram

Alignment Scissor Lift 8 Ton AX-16A Manual

Specifications

Model     AX-16A
Style     Alignment
Lifting Capacity     16,000 lbs (7,257 kg)
Lifting Time     106S
A1: Lifting Height     73 5/8″ (1870mm)
A2: Minimum Height     13″ (330mm)
B: Runway Length     213 3/4″ (5428mm)
C: Overall Width     94 1/8″ (2390mm)
D: Runway Width     24 5/8″ (625mm)
E: Overall Length(Inc Ramps)     274 1/8″ (69634mm)
Motor     2.0HP
Gross Weight     6,349lbs (2,880 kg)

Optional Accessories:


– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump
- Turnplate: No. 40101
- LED lights: No. 40103
- Extension kit: No. PX002
- Airline kit: No. PX004
