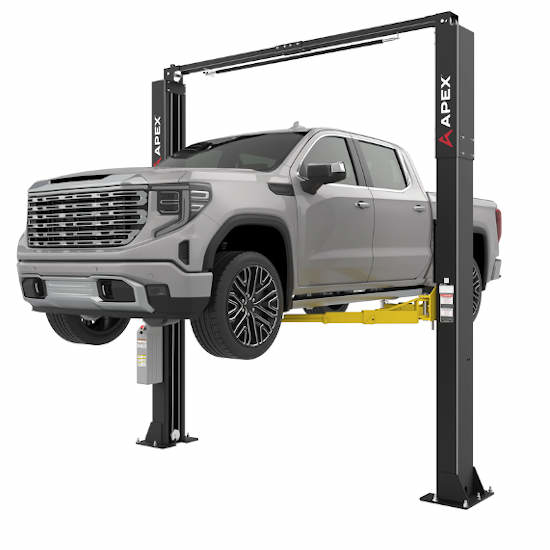

Open under-vehicle access and strong daily performance come together in the APEX AL10C, a 10,000-lbs. capacity clearfloor two-post car lift. With direct-drive hydraulics, heavy-duty overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, stable lifting for cars, trucks, and SUVs, with BendPak-backed support.
Clearfloor Power for Serious Shops
The APEX AL10C Clearfloor Two-Post Lift is built for professional shops and serious garages that want open floor access beneath the vehicle. With a 10,000-lb. lifting capacity and clearfloor design, the AL10C eliminates the floor beam found on traditional floorplate lifts so transmission jacks, oil drains, tool carts, and other shop equipment can move freely under the raised vehicle. This clearfloor two-post lift is designed for better workflow, cleaner bay movement, and easier service access across passenger cars, performance vehicles, light trucks, and lifted vehicles. For users comparing APEX two-post lifts, the AL10C is the higher-capacity clearfloor choice for shops that want unobstructed floor space and a direct-drive hydraulic lifting system.
Clearfloor Access with Flexible Vehicle Positioning
The AL10C is designed to make vehicle setup faster while keeping the service bay easier to work around. Symmetric and asymmetric arm configurations allow technicians to adapt the lift setup to different vehicle sizes, frame designs, and weight distribution needs.
Triple-telescoping front arms and dual-stage extended rear arms provide broad reach for a wide range of wheelbases. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, along with the included 4-piece 63 mm stackable adapter set, help create secure lifting contact across different vehicles and service applications.
Direct-Drive Hydraulics with Overhead Structural Support
The AL10C features a direct-drive hydraulic design with dual full-stroke hydraulic cylinders. By reducing the number of moving parts compared with more complex lifting systems, the direct-drive setup helps minimize wear while delivering smooth, consistent lift operation for daily shop use. A rugged overhead box-beam structure reinforces the lift frame, reduces column stress, and supports overall stability. Heavy-duty 6-inch by 6-inch tubular steel carriages, oversized base plates, self-lubricating UHMW polyethylene guide blocks, oversized cable sheaves, and aircraft-quality equalizer cables all contribute to long-term durability.
Safety Locks, Overhead Shutoff, and Long-Term Support
The AL10C includes automatic safety locks that engage every 3 inches throughout the lifting range, helping hold vehicles securely at working height. Single-pull lanyards on each carriage make lock release straightforward, while automatic arm restraints help prevent unintended arm movement after the vehicle is raised. A padded overhead safety shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Previously sold under the GrandPrix name, the AL10C now joins the APEX lineup with the same clearfloor architecture, direct-drive lifting system, structural components, and BendPak-backed 36-month limited warranty.
Click links below for more info:
AL10C 2 Post Lift Sell Sheet
AL10C 2 Post Lift Manual
AL10C 2 Post Lift Warranty
Specifications AL10C

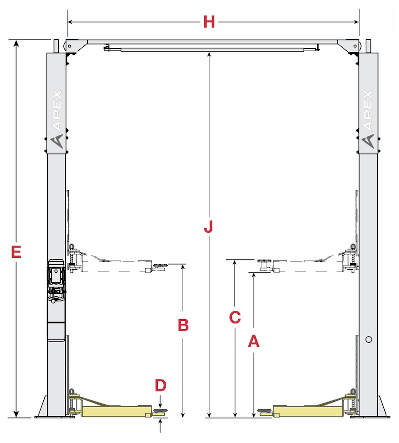

Capacity
Lifting Capacity: 10000 lb
Max Capacity Per Arm: 2500 lb Rise
A: Rise: 70"
C: Max Lifting Height with Pad: 76.5"
D: Min Lifting Height with Pad: 3.9"
Lifting Time: 65 seconds

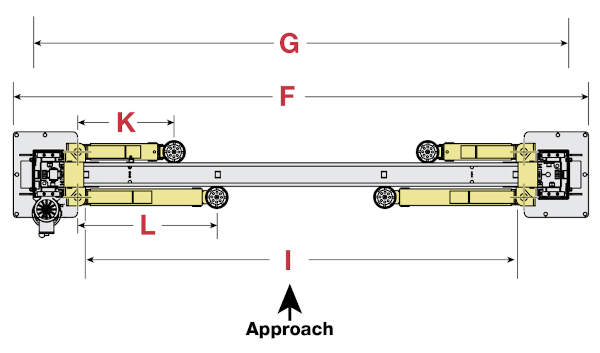

Outside Dimensions
E: Height: 148"
F: Width: 137.5"
G: Outside Columns128.5"
Inside Dimensions
H: Inside Columns: 114.5"
I: Drive-Thru Clearance: 103"
J: Floor to Overhead Switch: 142.5"
Arms and Pads
K: Front Arm Reach Min: 22.5"
K: Front Arm Reach Max: 43.25"
L: Rear Arm Reach Min: 33.5"
L: Rear Arm Reach Max: 53.25"
Screw Pad Adjustment: 2"
Power Unit and Voltage
Horsepower: 5 HP
Voltage: 208-230V / 60 Hz / 1-Phase
Sound Level: < 70 dB
Shipping and Delivery
Shipping Dimensions: 27 x 114 x 29"
Shipping Weight: 1536 lb
