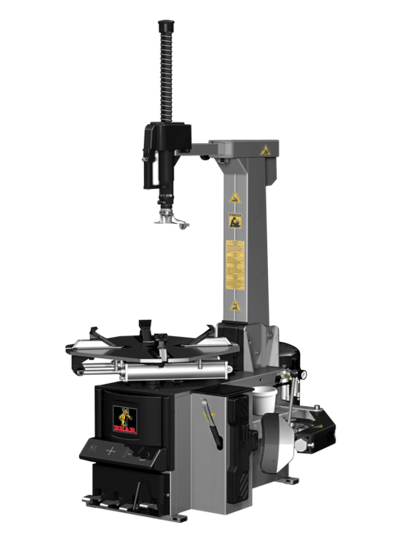

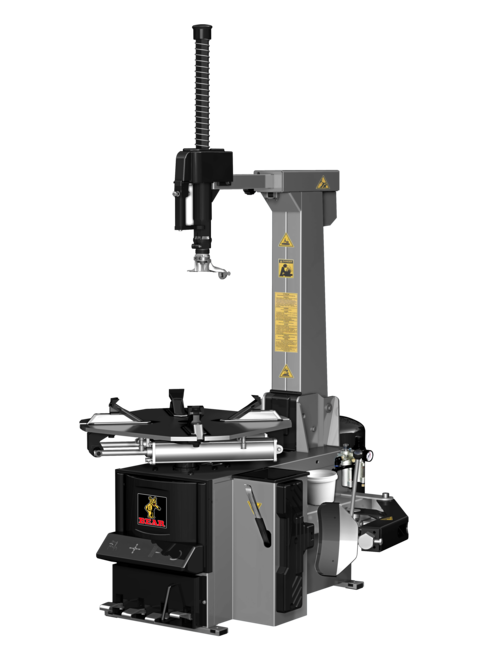

Automatic Tire Changer 70-035-B Bear Auto Equipment

70-035-B


SKU: 70-035-B
Manufacturer part number: 70-035-B
Free shipping *
Manufacturer: Bear Auto Equipment
$5,195.00

Features

Tilting vertical arm with pedal control
Pneumatic system for locking the operating arm
Bead-Breaker with double effect pneumatic cylinder
Oversize body
Extractable pedal unit
Easy fill oiler, limits wear on internal parts
Air filter/quick drain water trap with adjustable regulator
Heavy duty 28" turntable
Self Centering Clamp with stepping function
Quick Inflation Device for tubeless tire (bead blaster)
Precise inflate / deflate air gauge and hose
Rubber Padded Mount/Demount Tool (duckhead)
Includes reservoir for rubber lubricant
Includes plastic protectors for turntable clamps
Angle of duckhead can be adjusted
Double turntable speed for 3PH (optional 3 PH)


Specifications

Max Rim Width: 12"- 30"
Max. Wheel Diameter: 47.5"
Max. Wheel Width: 17"
Bead Breaker Force: 3000 kg
Operating Pressure: 140 psi (10 bar)
Power Supply: 110v (220v - 380v optional voltage available)
Motor Power: 0.8kw / 1.1kw
Max. Spindle Torque: 1200 Nm
Max. Inflating Pressure: 50 psi
Gross Weight: 684lbs


70-035-B Tire Changer Manual

Features

Tilting vertical arm with pedal control
Pneumatic system for locking the operating arm
Bead-Breaker with double effect pneumatic cylinder
Oversize body
Extractable pedal unit
Easy fill oiler, limits wear on internal parts
Air filter/quick drain water trap with adjustable regulator
Heavy duty 28" turntable
Self Centering Clamp with stepping function
Quick Inflation Device for tubeless tire (bead blaster)
Precise inflate / deflate air gauge and hose
Rubber Padded Mount/Demount Tool (duckhead)
Includes reservoir for rubber lubricant
Includes plastic protectors for turntable clamps
Angle of duckhead can be adjusted
Double turntable speed for 3PH (optional 3 PH)


Specifications

Max Rim Width: 12"- 30"
Max. Wheel Diameter: 47.5"
Max. Wheel Width: 17"
Bead Breaker Force: 3000 kg
Operating Pressure: 140 psi (10 bar)
Power Supply: 110v (220v - 380v optional voltage available)
Motor Power: 0.8kw / 1.1kw
Max. Spindle Torque: 1200 Nm
Max. Inflating Pressure: 50 psi
Gross Weight: 684lbs


70-035-B Tire Changer Manual
