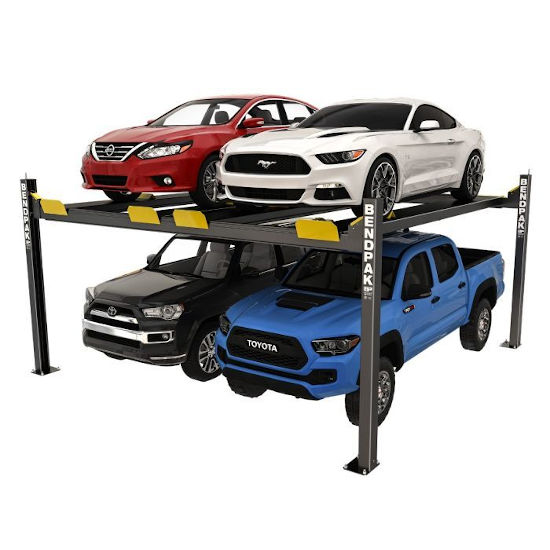

BendPak''s HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than the standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.
The Ultimate Extended-Length, High-Rise, Double-Wide Car Lift
If you're looking for a little more lifting height, extended-length runways and a lot less column interference, then our HD-9SWX four-post lift is the answer. This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles.
The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 14,000-lb. capacity HDS-14 series to the 40,000-lb. capacity HDS-40.
NOTE: Comes standard with 1 Kit(pair) of Aluminum Ramps (additional ramps may be purchased but are not provided)
Click links below for more info:
HD-9SWX Platform Parking Lift Brochure
HD-9SWX Platform Parking Lift Manual
HD-9SWX Platform Parking Lift Warranty
Specifications HD-9SWX
- 9,000-lb. maximum lifting capacity
- Freestanding design
- Perfect for parking, storage and service
- Double-wide configuration for quad-vehicle storage
- Four runways
- Super-tall rise
- Extra-long ramp
- Runways accommodate wide or narrow vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Inside runways adjust for different tread widths
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available
- Comes standard with 1 Kit(pair) of Aluminum Ramps (additional ramps may be purchased but are not provided)

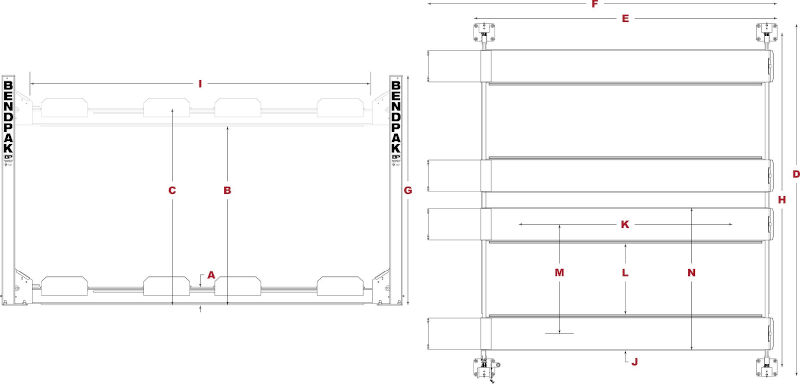

Specifications HD-9SWX
Lifting Capacity*: 9,000 lbs.
*Max Capacity / Front Axle: 4,500 lbs.
*Max Capacity / Rear Axle: 4,500 lbs.
Rise
A - Min. Runway Height: 7"
C - Max. Lifting Height: 89"
Time to Full Rise: 65 seconds
Outside Dimensions
F - Overall Length: 242.5"
G - Height of Columns: 102"
Inside Dimensions
H - Width Between Columns: 192"
I - Drive-Thru Clearance: 178"
Runways
K - Length of Runways: 188"
L - Width Between Runways: 34.25" or 41"
M - Runway Centerline: 56.25" or 62.75"
N - Outside Edge of Runways: 75.25" or 81.75"
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Shipping
Weight: 3,038 lbs. (1378 kg)
Dimensions: 205'' x 22'' x 51''
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
