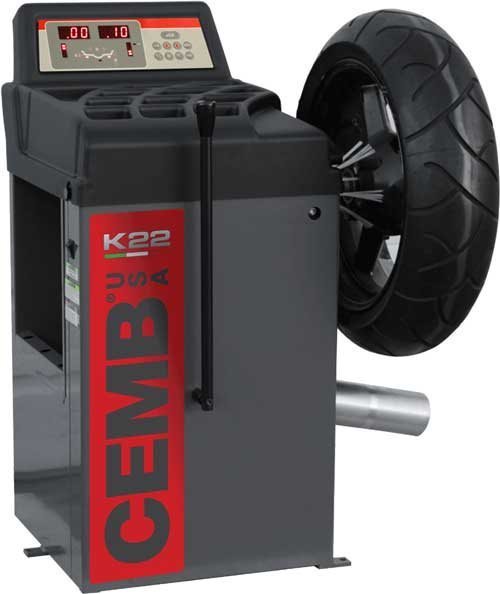

CEMB K22 Computerized Motorcycle Wheel Balancer - Specifically Designed for Motorcycles!
Manufacturer part number:
The K22 motorcycle wheel balancer has a fixed shaft, enabling the wheel to rotate freely on its own bearings. This simulates the assembly of the wheel on the motorcycle and eliminates all the assembly inaccuracies which are inevitable with traditional balancing machines for car wheels, where the adapter is put in rotation with the wheel.
CEMB K22 COMPUTERIZED WHEEL BALANCER FEATURES
Universal space saving wheel balancer with excellent technical specifications combining a sturdy structure with attractive and modern design
K22 balances bearing type wheels, scooters wheels (hand spin), and single sided swing arm (with optional AGF adaptor set)
Automatic Distance & Diameter Entry (2D)
Self-Diagnosis and Self-Calibration
Menus for quick selection of the following:
ounces to grams
inches to millimeters
unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
Optimization program for compensation of rim and tire unbalance
"Static" and "Dynamic" program
12-Compartment Weight Tray + Adaptors compartment
Power Supply: 110VAC, 50/60 Hz, 1 ph
Shaft Size: 15mm
Balancing Speed: < 80 rpm
Balancing Accuracy: < 0.1 oz
Rim Diameter Capacity: 10" - 30"
Rim Width Capacity: 1.5" - 20"
Max. Wheel Weight: 66 lbs (30 kg)
Max. Tire Diameter: 28"
Operating Temperature °F: 32-113 (°C 0-45)
Average Cycle Time: 4-6 seconds
Gross Shipping Weight: 240 lbs
15mm Threaded Shaft
Shaft Nut and Spacers
4 Cones Covering Hole Sizes 15mm-35mm
Rim Width Gauge for Measuring Wheel Width
Weight Pliers - Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights
Storage - Lateral compartment for adaptors storage
Harley Davidson Shaft Extension
Kawasaki - Suzuki Shaft Extension
Complete Kit of Centering Bushings
Harley Davidson Kit -Solid shaft for Harley Davidson. Fits 3/4" and 1" axle.
Honda Kit -Shaft and cones (0.5" - 1.4" / 12-35mm), used for Honda XR/CRF50 Dirt Bike
AGF Kit for single arm (flange) type wheels
CHECK OUT THESE INFORMATIVE RESOURCES IN PDF FORMAT
K22 MOTORCYCLE WHEEL BALANCER INSTALLATION MANUAL
K22 MOTORCYCLE WHEEL BALANCER USER MANUAL
