Double Scissors Lift 12000lbs DX-12A Amgo Hydraulics

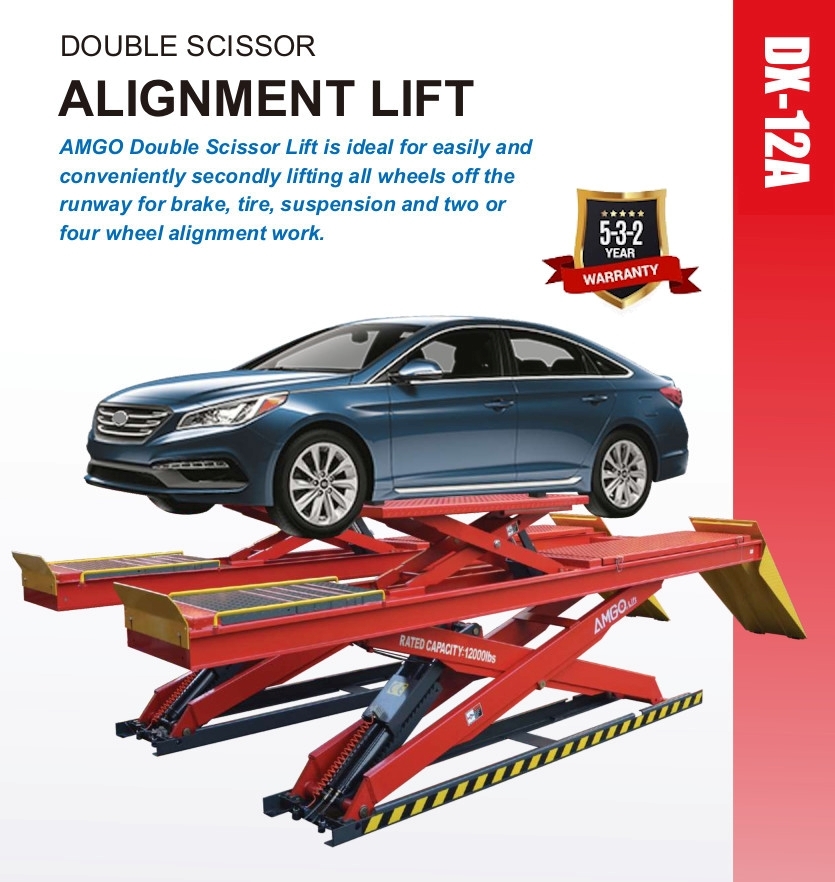

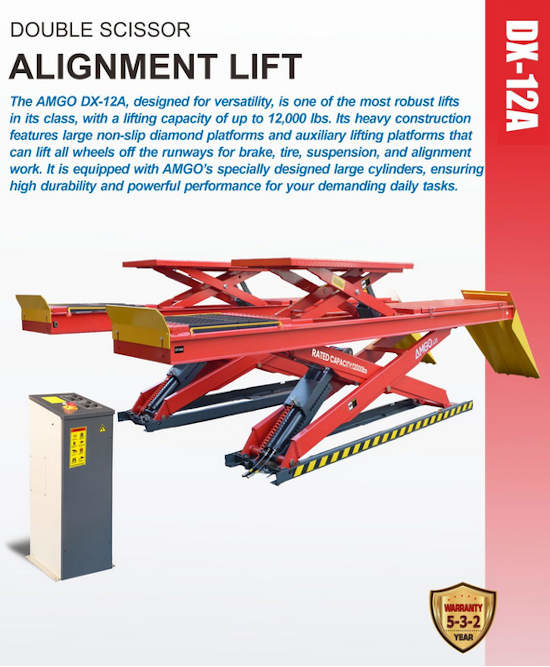

The AMGO DX-12A Double Scissors Lift can lift 12,000lbs off the runway for brake, tire, suspension and two or four-wheel alignment work. The DX-12A is rugged, versatile, and easy to use.
SKU: DX-12A
Manufacturer part number: DX-12A
Manufacturer: Amgo Hydraulics
$7,095.00

Amgo warranty

The AMGO DX-12A Double Scissors Lift can lift 12,000lbs off the runway for brake, tire, suspension and two or four-wheel alignment work. The DX-12A is rugged, versatile, and easy to use.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift
• Synchronization cylinders system equipped with hose burst valves
• Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety
• Skid proof diamond runways and optional adjustable turnplate pockets
• Self-lubricating UHMW polyethylene sliders and bronze bushings

Double Scissors Lift 12000lbs Manual

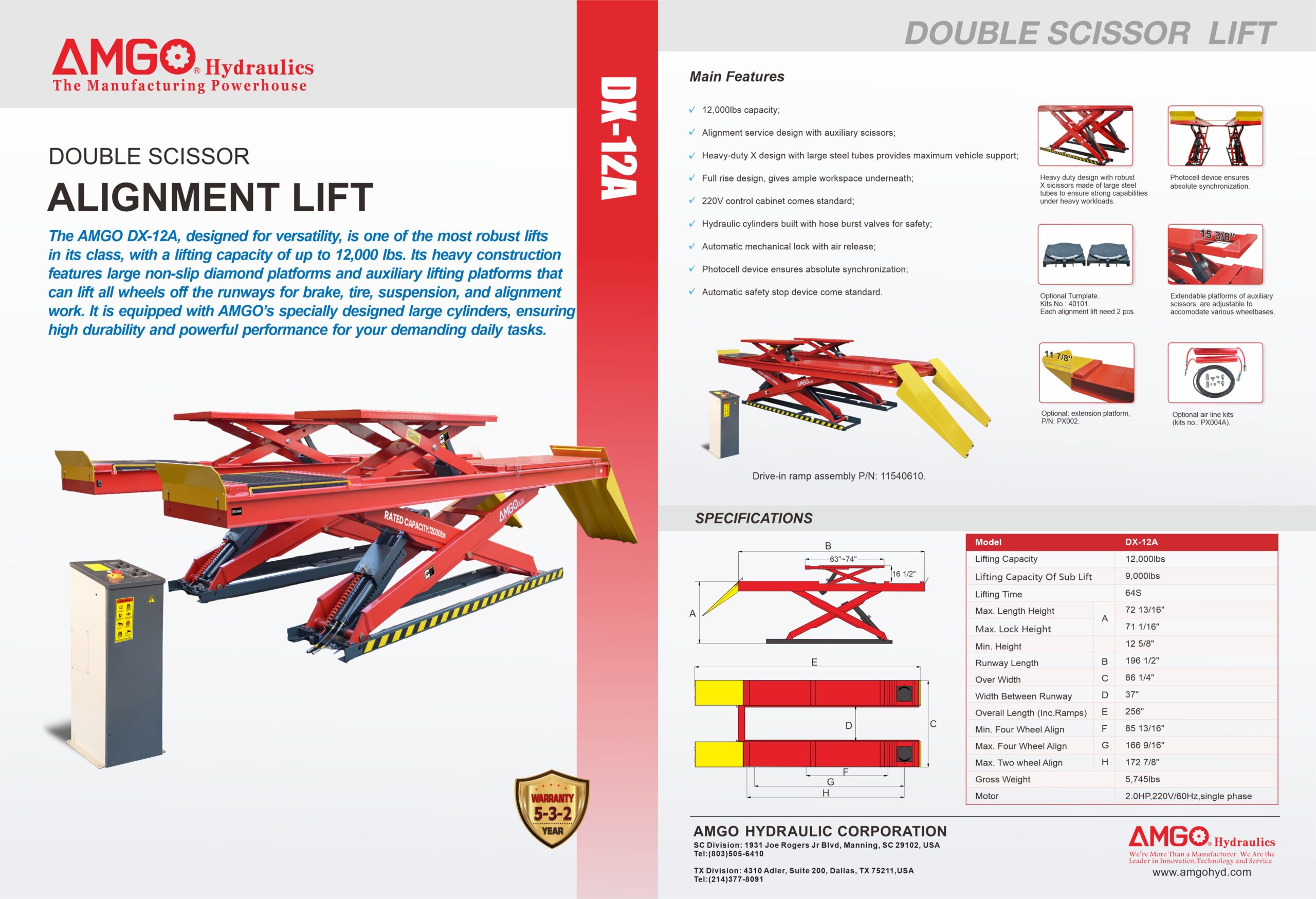

Specifications

Model     DX-12A
Main Scissor Lifting Capacity     12,000 lbs (5,443 kg)
Lifting Time     62S
A1:Lifting Height     73 5/8″ (1870mm)
A2:Minimum Height     12″ (305mm)
B: Runway Length     196 1/2″ (4991mm)
C: Over Width     86 1/4″ (2190mm)
D: Runway Width     24 5/8″ (625mm)
E: Overall Length(Inc.Ramps)     257″ (6527mm)
Secondary Scissor Lifting Capacity     9,000lbs (4000kg)
Secondary Scissor Lifting Height     16 1/2″ (420mm)
Secondary Scissor Length     63″~76 1/8″ (1600~1934mm)
Gross Weight     5,743 lbs (2,605 kg)
Motor     2.0HP

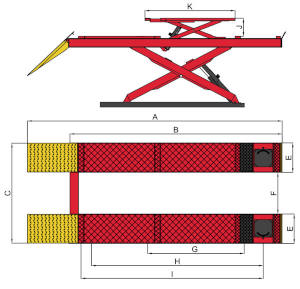

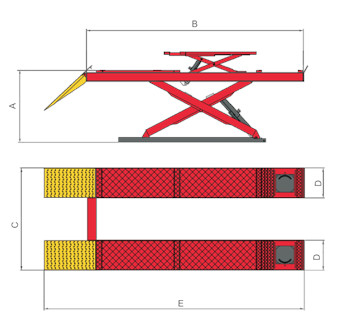

DX-12A Diagram

Amgo warranty

The AMGO DX-12A Double Scissors Lift can lift 12,000lbs off the runway for brake, tire, suspension and two or four-wheel alignment work. The DX-12A is rugged, versatile, and easy to use.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift
• Synchronization cylinders system equipped with hose burst valves
• Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety
• Skid proof diamond runways and optional adjustable turnplate pockets
• Self-lubricating UHMW polyethylene sliders and bronze bushings

Double Scissors Lift 12000lbs Manual

Specifications

Model     DX-12A
Main Scissor Lifting Capacity     12,000 lbs (5,443 kg)
Lifting Time     62S
A1:Lifting Height     73 5/8″ (1870mm)
A2:Minimum Height     12″ (305mm)
B: Runway Length     196 1/2″ (4991mm)
C: Over Width     86 1/4″ (2190mm)
D: Runway Width     24 5/8″ (625mm)
E: Overall Length(Inc.Ramps)     257″ (6527mm)
Secondary Scissor Lifting Capacity     9,000lbs (4000kg)
Secondary Scissor Lifting Height     16 1/2″ (420mm)
Secondary Scissor Length     63″~76 1/8″ (1600~1934mm)
Gross Weight     5,743 lbs (2,605 kg)
Motor     2.0HP

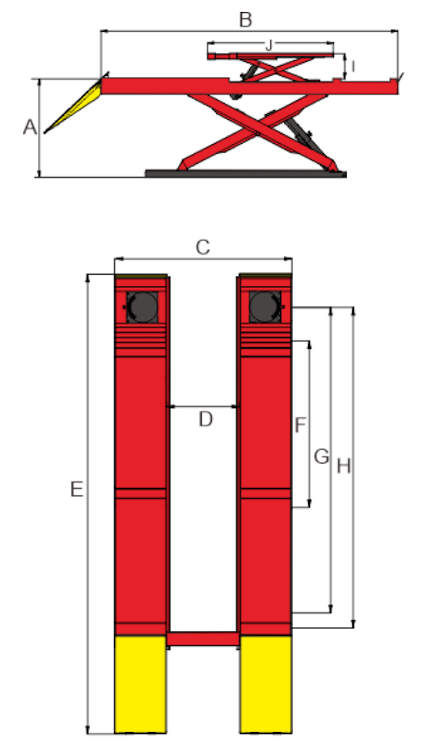

DX-12A Diagram
