Double Storage/Parking Lift 9000lb 409-DP 4 Post Amgo Hydraulics

409-DP


SKU: 409-DP
Manufacturer part number: 409-DP
Manufacturer: AMGO Hydraulics
$6,695.00

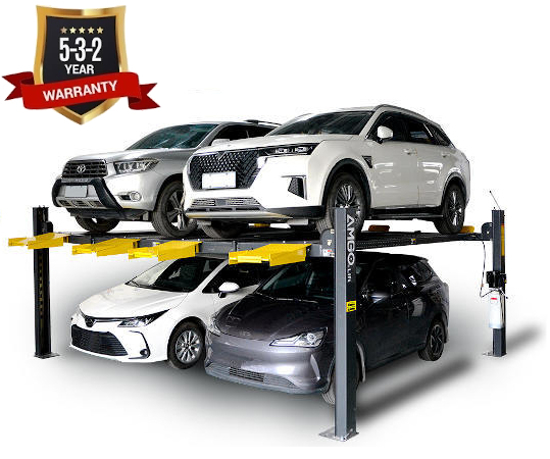

Amgo warrantyThe AMGO 409-DP 9000 lb capacity double parking lift is a space-saving master. 1 lift, 2 parking positions to park 4 vehicles. It’s low profile, with hidden safety locks and single-point release. Foldable drive-on ramps come standard.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Lifting capacity: 9,000lbs, Max. Car Weight: 6,000lbs.
• Max lifting height: 73 11/16”
• Low profile design, minimum platform height only 6 3/32″.
• Both primary & slack-cable safety devices as standard.
• Exclusive: hidden safety locks and manual single-point safety release.
• Exclusive: Foldable drive-on ramps of 4 units.
• Exclusive: Ingenious designs to minimize the package size, reducing transportation and storage cost.
• Exclusive: Double S Shaped columns for increased strength.
• Non-slip diamond platforms.
• Adjustable multiple safety ladders.


 Click links below for more info:

409-DP 4 Post Double Parking Lift Manual

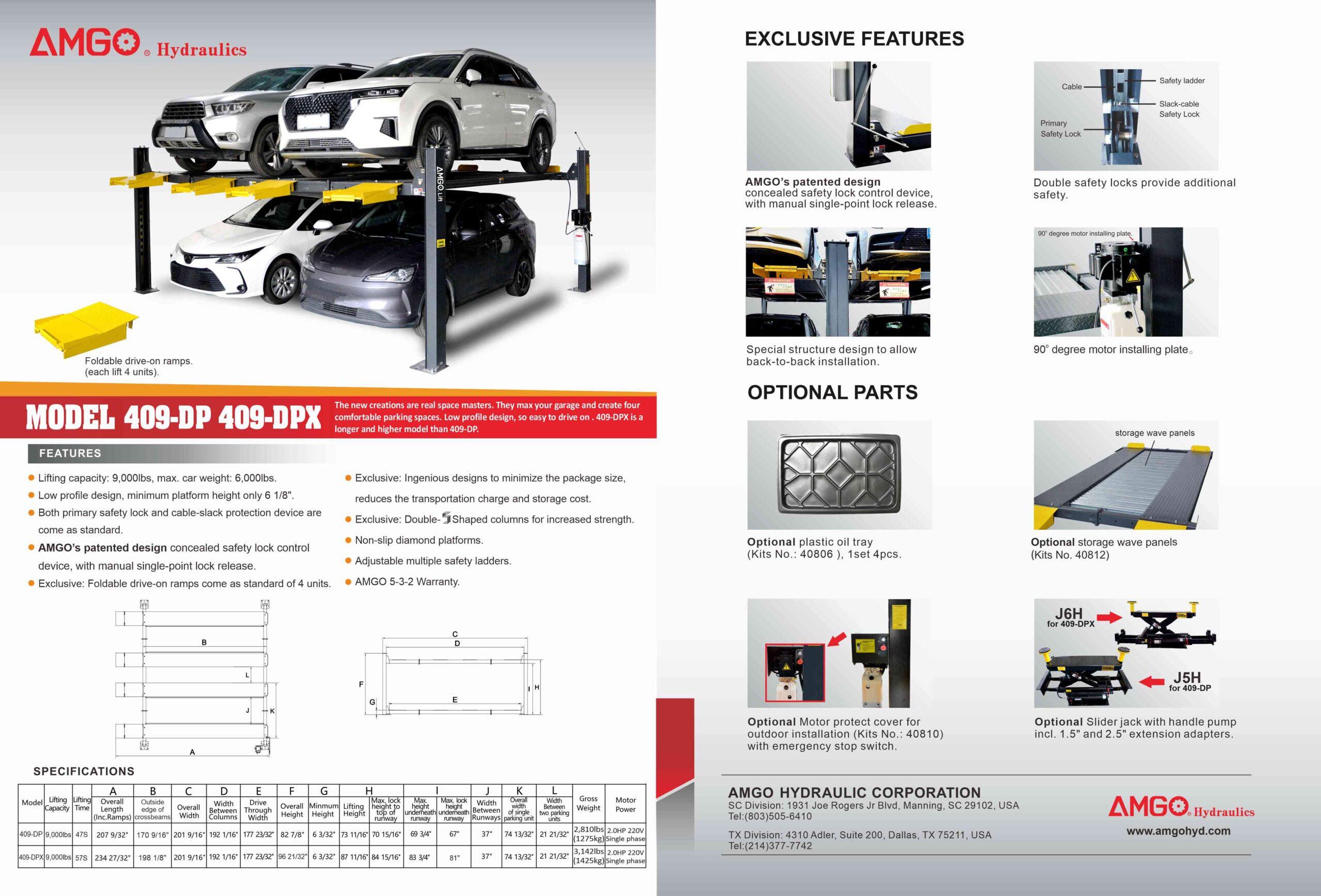

409-DP 4 Post Double Parking Lift Brochure


Specifications

Model 409-DP: Double Parking 4 Post Lift
Lifting Capacity:     9,000lbs
Lifting Time:     47s
A: Overall Length (Inc Ramps):     207 9/32″
B: Overall Length (No ramps):     173 13/16″
C: Overall Width:     201 9/16″
D: Width Between Columns:     192 1/16″
E: Drive Thru Width: 177 23/32
F: Overall Height:     82 7/8″
G: Minimum Height:     6 3/32″
H: Lifting Height:   73 11/16"
H: Max Lock Height to top of Runway: 70 15/16"
I: Max Height Underneath Runway: 69 3/4"
I: Max Lock Height Underneath Runway: 67"
J: Width Between Runways:   37″
K: Overall Width of Single Parking Unit:     74 13/32″
L: Width Between Two Parking Units:    21 21/32"
Gross Weight:     2,810 lbs
Motor:     2.0HP 220V Single Phase

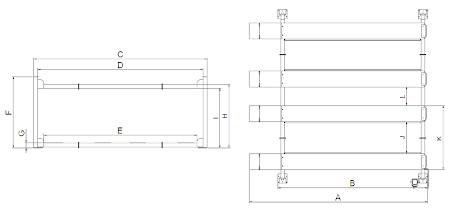

409-DP Double Parking Lift Specs

Amgo warrantyThe AMGO 409-DP 9000 lb capacity double parking lift is a space-saving master. 1 lift, 2 parking positions to park 4 vehicles. It’s low profile, with hidden safety locks and single-point release. Foldable drive-on ramps come standard.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• Lifting capacity: 9,000lbs, Max. Car Weight: 6,000lbs.
• Max lifting height: 73 11/16”
• Low profile design, minimum platform height only 6 3/32″.
• Both primary & slack-cable safety devices as standard.
• Exclusive: hidden safety locks and manual single-point safety release.
• Exclusive: Foldable drive-on ramps of 4 units.
• Exclusive: Ingenious designs to minimize the package size, reducing transportation and storage cost.
• Exclusive: Double S Shaped columns for increased strength.
• Non-slip diamond platforms.
• Adjustable multiple safety ladders.


 Click links below for more info:

409-DP 4 Post Double Parking Lift Manual

409-DP 4 Post Double Parking Lift Brochure


Specifications

Model 409-DP: Double Parking 4 Post Lift
Lifting Capacity:     9,000lbs
Lifting Time:     47s
A: Overall Length (Inc Ramps):     207 9/32″
B: Overall Length (No ramps):     173 13/16″
C: Overall Width:     201 9/16″
D: Width Between Columns:     192 1/16″
E: Drive Thru Width: 177 23/32
F: Overall Height:     82 7/8″
G: Minimum Height:     6 3/32″
H: Lifting Height:   73 11/16"
H: Max Lock Height to top of Runway: 70 15/16"
I: Max Height Underneath Runway: 69 3/4"
I: Max Lock Height Underneath Runway: 67"
J: Width Between Runways:   37″
K: Overall Width of Single Parking Unit:     74 13/32″
L: Width Between Two Parking Units:    21 21/32"
Gross Weight:     2,810 lbs
Motor:     2.0HP 220V Single Phase


409-DP Double Parking Lift Specs
