ELEVATOR 2000E REPAIR SHOP GRADE MOTORCYCLE LIFT TABLE

SKU: ELEVATOR 2000E
Manufacturer part number: ELEVATOR 2000E
Free shipping

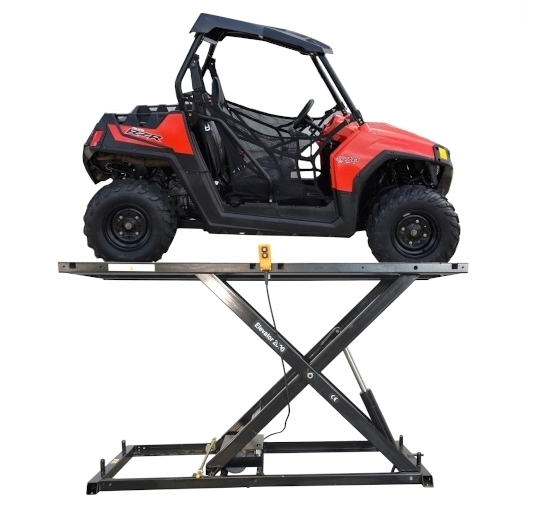

Quick overview Elevator 2000E Motorcycle Lift Table is a heavy duty 110 volt electric lift table that rises to 48". Features front and rear drop down panels and fully adjustable wheel chock with a quick lock which makes loading your bike very easy. This lift table will handle ATVs, UTVs, side by sides, super utv's, lawnmowers, landscape, and golf course equipment.
*
$2,149.00

You may also be
interested in



ELEVATOR 1100MAX MOTORCYCLE ATV LIFT TABLE
ELEVATOR 1100MAX
Air Lift Table

FREE SHIPPING!

$1,199


Elevator 1800 Motorcyle ATV UTV Lift Table
ELEVATOR 1800

Air Lift Table

FREE SHIPPING!
$1,699




PRO 1200MAX Motorcycle
Lift Table Package

FREE SHIPPING!
$969




PRO 1200SEMAX Motorcycle
Lift Table Package

FREE SHIPPING!
$1,099

2 Year Warranty Elevator 1800 Lift Table

Elevator lift tables are made with thick 10 gauge steel, rugged enough to handle the heaviest vehicles. We start with a quality frame and rectangular base, a footprint that ensures safety in lifting and safety in working. The base frame is fitted with a tow bar that accepts a wheel dolly, the base frame is also pre drilled with to accept a wheel kit which allows for easy placement and storage. A safety locking mechanism is built into the base with 4 and 5 settings, depending on the model, to adjust to your height.



Included are front and rear drop down panels that make service work very easy. A 56" side extension kit consisting of 4 equal sized slide in quick mount panels and 2 loading ramps and a fully adjustable wheel chock with a quick lock makes loading easy.



Optional accessories include a different size side extension kit to expand the lift table out to 68" consisting of 4 equal sized slide in quick mount panels and 2 loading ramps. Jacks, front and rear extensions which expand the lift table length to 134" max for super Utv's, tool trays are just some of the choices.



The Elevator 2000E is a heavy duty lift table carries a 2 year warranty and is built beautifully, you will enjoy its excellence.








FEATURES



2 year warranty
48" Maximum Height
8" Collapsed Height
Includes 4 equal piece (quarters) side extension kit that extends the lift to 56", plus 2 loading ramps. Optional wider Side Ext Kit 68" width.
Electric over hydraulic power 110 volt, 2000 lb capacity
Fully adjustable wheel chock with a quick lock
2 Button Electric control and Cord
Heavy duty track and bearings for smooth operation
4 panel (quarters) quick mount side extension kit with ramps
Base frame pre-drilled for wheel kit
Multiposition safety lock system

Optional 2 year extra extended warranty available








INSTALLING A PLUG END FOR WIRING THE CORD






OPTIONAL EQUIPMENT


FRONT AND REAR EXTENSIONS (FITS ONLY WIDE SIDE EXT KIT 68") PANELS MEASURE 24" X 68". ADDING BOTH EXPANDS LIFT LENGTH TO 134" FOR SUPER UTVs ETC.
WHEEL DOLLY/ WHEEL KIT for portability

WIDE SIDE EXT KIT 4 ea. plug in sides 19" w x 43 1/2" L PER PANEL with 2 loading ramps (total width of table 68")
TRIKE SIDE EXT KIT 2 sides only with ramps extends lift to 64"
SERVICE JACK AND FRAME ADAPTER KIT
TOOL TRAY



ELEVATOR 2000E LIFT PACKAGE SPECIFICATIONS

Operation: 110V Power, Electric / Hydraulic

Lift Dimensions: 87"L x 29.5"W x 48" High rise

Side Extension Kit: 4 piece side ext. kit expands overall width to 56". Includes 2 piece 42" ramp set.

Net weight: 850 lbs.

Lift Height: collapsed 8-1/2" full height 48"

Metal Thickness: 10 gauge steel

Capacity: 2000 lbs.

Fully Adjustable Wheel Chock: Adjustable length

Baseframe: Predrilled for wheel kit and dolly

5 Position Safety Locking System: Secures lift in place while working

Detachable 42" Long Drive-On Ramp: Low angle long 42" ramp protects low riding bikes as they are rolled onto and off of the lift

Tie Down Receptacles: Equally spaced receptacles for tie downs

Sturdy Rectangular Base Frame

Powder Coated Finish: Powder coat finish for durability with red accents

Compact Portable Design: Makes this handy motorcycle lift table easy to move and store
