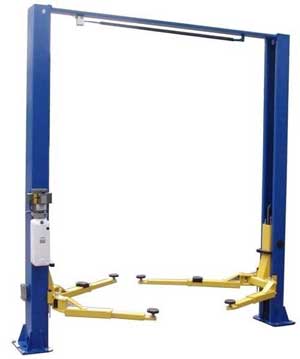

The PRO 9000ACX 2 Post lift is a 9,000 lb. capacity lift which features single piece column construction, reduced overall width, drop in adjustable swivel pads with height adapters, internal hose routing, padded overhead shut-off bar with kill switch, and rubber door guards.
FEATURES: 9,000 lb lifting capacity Asymmetric design Clear Floor design 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters Padded 'Shut-Off' Bar w/ Kill Switch Saddle Pad Adapters included (1 pair) Chain driven Powder-coated paint finish Single Piece Column construction Internal Hose Routing w/ integrated Hose Guards Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height Reduced overall Width w/ front-side mounted Power Unit Rubber Door Guards
SPECIFICATIONS:
Lift Model: PRO 9000ACX
Capacity: 9,000 lbs.
Height Overall: 142.9"
Width Overall w/ Power Unit: 138" Max
Lift Height: 72"
Width Between Columns: 113.6"
Min. Pad Height: 4"
Drive Thru Clearance: 96"
Lifting Speed: 50S
Asymmetric / Symmetric: Asymmetric
Clear Floor / Floor Plate: Clear Floor
Front Arm Reach - min/max: 29" - 41"
Rear Arm Reach - min/max: 37" - 57"
Cable Diameter: 3/8"
Column Size: 7.25" x 10.87"
Column Steel Thickness: 5mm
Carriage Steel Thickness: 5mm
Arm Steel Thickness: 6mm
Ship Weight: 1,370 lbs.
Power: 220V - 20 AMP - 1 PH
