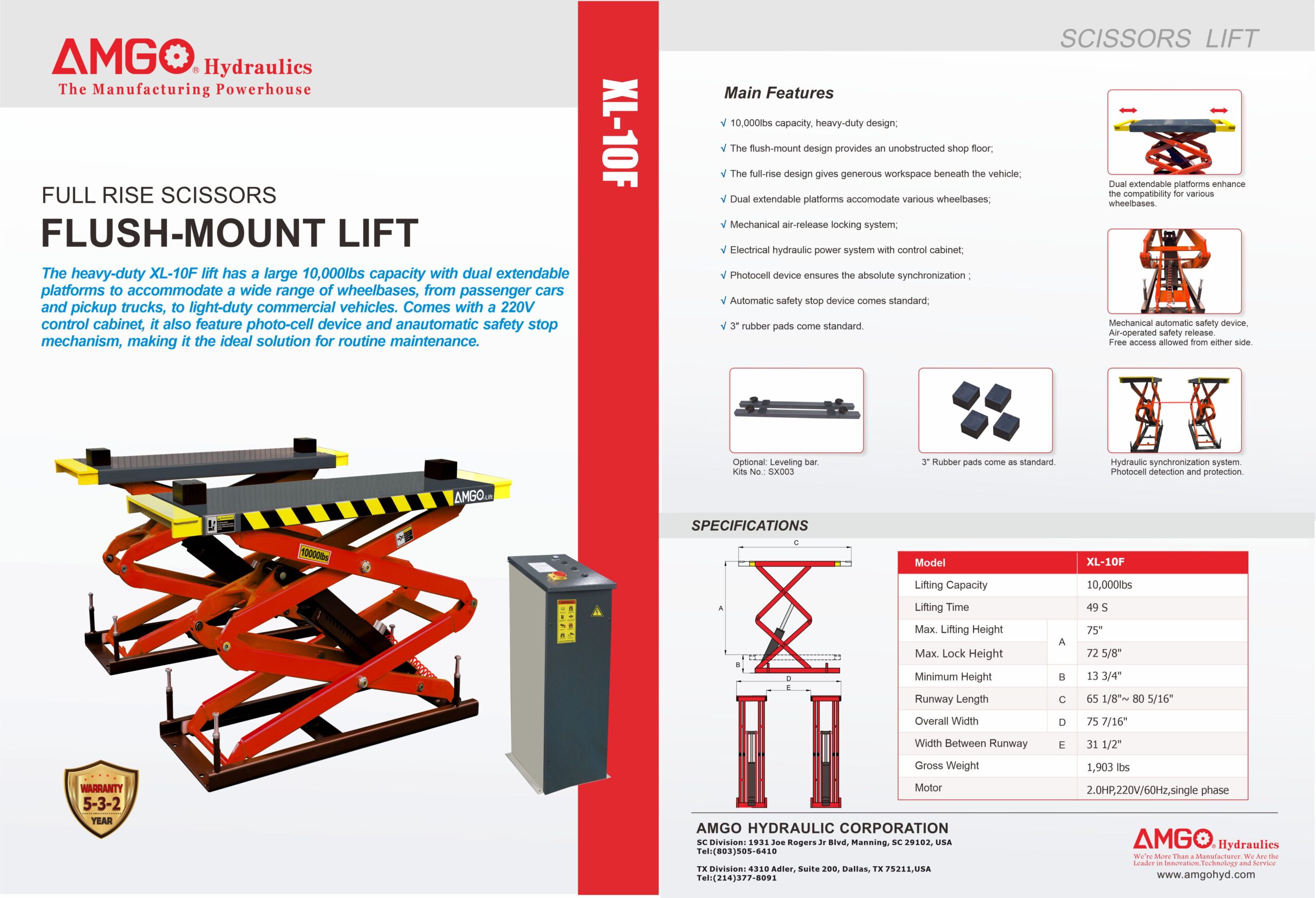

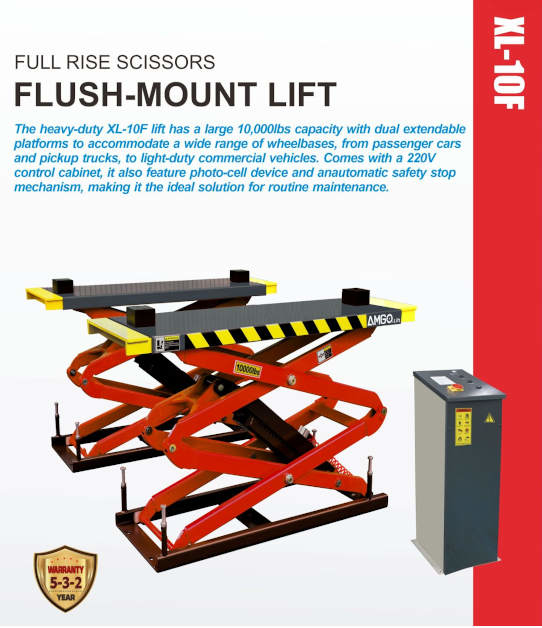

The heavy-duty XL-10F lift has a large 10,000lbs capacity with dual extendable platforms to accommodate a wide range of wheelbases, from passenger cars and pickup trucks, to light-duty commercial vehicles. Comes with a 220V control cabinet, it also feature photo-cell device and anautomatic safety stop mechanism, making it the ideal solution for routine maintenance.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
- 10,000lbs capacity, heavy-duty design
- The flush-mount design provides an unobstructed shop floor
- The full-rise design gives generous workspace beneath the vehicle
- Dual extendable platforms accomodate various wheelbases
- Mechanical air-release locking system
- Electrical hydraulic power system with control cabinet
- Photocell device ensures the absolute synchronization
- Automatic safety stop device comes standard
- 3″ rubber pads come standard
Click links below for more info:
XL-10F Flush Mount Scissor Lift Manual
XL-10F Flush Mount Scissor Lift Brochure
Specifications
Model XL-10F
Lifting Capacity 10,000 lbs
Lifting Time 49 S

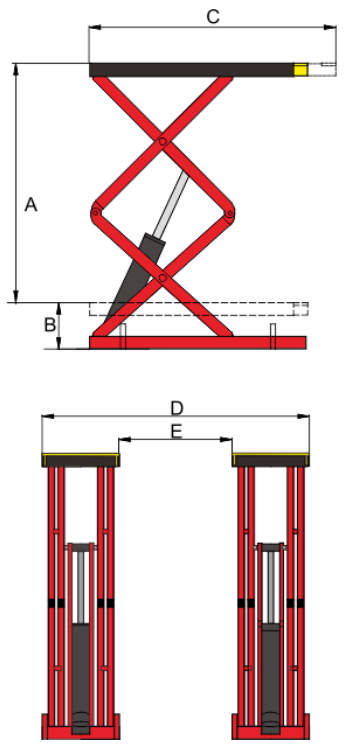

A: Max. Lifting Height 75″
A: Max. Lock Height 72 5/8″
B: Minimum Height 13 3/4″
C: Runway Length 65 1/8" - 80 5/16"
D: Overall Width 75 7/16″
E: Width Between Runways 31 1/2″
Motor 2.0HP
Gross Weight 1,903 lbs
