Heavy Duty Scissor Lift 12000lb AX-12 Amgo Hydraulics

AX-12


SKU: AX-12
Manufacturer part number: AX-12
Manufacturer: AMGO Hydraulics
$10,995.00

Amgo warrantyThe 12000lb capacity AX-12 scissor lift is perfect for commercial service, and is stronger, more versatile, and easy to use. This heavy-duty scissor lift features four cylinders and each dual cylinder is designed to assure the optimal lifting level on both platforms.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
• Skid proof diamond platform provides traction for tires to stay put


 Click links below for more info:

AX-12 Scissor Lift Manual

AX-12 Scissor Lift Brochure


Specifications

Model    AX-12
Style    Non-Alignment
Lifting Capacity    12,000 lbs
Lifting Time    75S
A: Overall Length(Inc. Ramps)    258″
B: Overall Length(No Inc. Ramps)    197 1/2″
C: Overall Length(Inc. Ramps)    267 1/8″
D: Lifting Height    11 3/4-73 5/8″
E: Runway Width    24 5/8″
F: Runway Length    197 1/2″
Motor    2.0HP 220V/60Hz Single Phase
Gross Weight     4,749 lbs

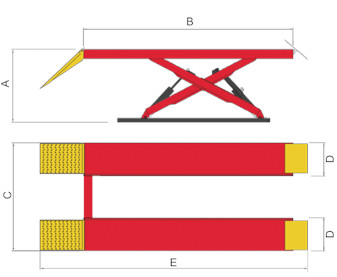

AX-12 diagram scissor lift


Optional Accessories:


-J6A: 6,000 lbs with pneumatic pump
-Optional led lights: No. PX010
-Optional extension kit: No. PX001
-Optional airline kit: No. PX004

Amgo warrantyThe 12000lb capacity AX-12 scissor lift is perfect for commercial service, and is stronger, more versatile, and easy to use. This heavy-duty scissor lift features four cylinders and each dual cylinder is designed to assure the optimal lifting level on both platforms.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components


Features

• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
• Skid proof diamond platform provides traction for tires to stay put


 Click links below for more info:

AX-12 Scissor Lift Manual

AX-12 Scissor Lift Brochure


Specifications

Model    AX-12
Style    Non-Alignment
Lifting Capacity    12,000 lbs
Lifting Time    75S
A: Overall Length(Inc. Ramps)    258″
B: Overall Length(No Inc. Ramps)    197 1/2″
C: Overall Length(Inc. Ramps)    267 1/8″
D: Lifting Height    11 3/4-73 5/8″
E: Runway Width    24 5/8″
F: Runway Length    197 1/2″
Motor    2.0HP 220V/60Hz Single Phase
Gross Weight     4,749 lbs

AX-12 diagram scissor lift


Optional Accessories:


-J6A: 6,000 lbs with pneumatic pump
-Optional led lights: No. PX010
-Optional extension kit: No. PX001
-Optional airline kit: No. PX004
