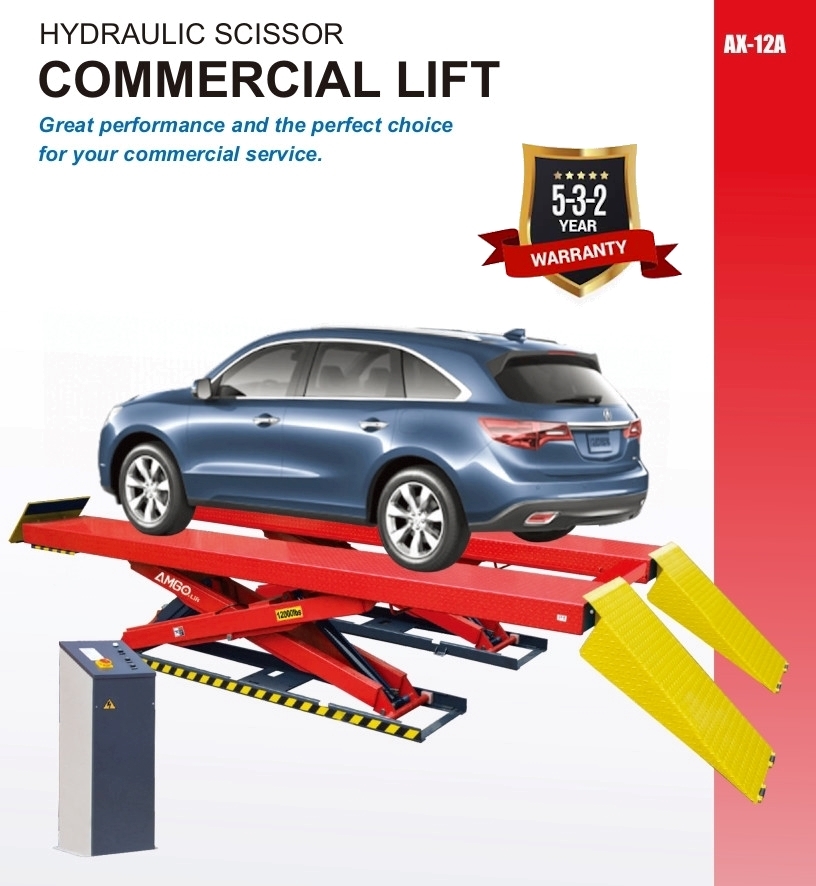

Alignment Scissor Lift 6 Ton AX-12A Amgo Hydraulics

The AMGO AX-12A Alignment Scissor Lift will expand your shop's capacity for larger vehicles and greater workload, with its rugged design and increased dependability. The hefty 6-ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.
SKU: AX-12A
Manufacturer part number: AX-12A
Manufacturer: Amgo Hydraulics
$8,799.00

Amgo warrantyThe AMGO AX-12A Alignment Scissor Lift will expand your shop's capacity for larger vehicles and greater workload, with its rugged design and increased dependability. The hefty 6-ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform

Specifications

Model     AX-12A
Style     Alignment
Lifting Capacity     12,000 lbs
Lifting Time     74S
A1:Lifting Height     73 5/8″
A2:Minimum Height     11 3/4″
B: Runway Length     197 1/2″
C: Overall Width     90 1/8″
D: Runway Width     24 5/8″
E: Overall Length (Including Ramps)     258″
Motor     2.0HP
Gross Weight     5,326 lbs

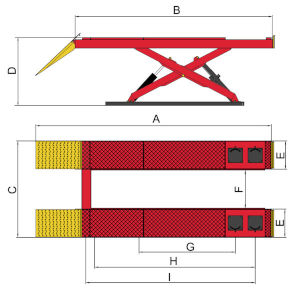

AX-12A Scissor lift diagram

Optional Accessories:

• Optional rolling jacks:
– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump

• More choices:
– Optional turnplate Kits: 40101
– Optional led lights Kits: 40103

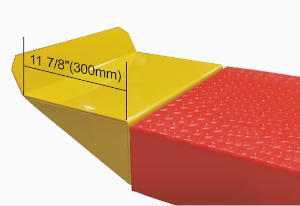

– Optional extension Kits: PX002
– Optional Airline Kits: PX004

Amgo warrantyThe AMGO AX-12A Alignment Scissor Lift will expand your shop's capacity for larger vehicles and greater workload, with its rugged design and increased dependability. The hefty 6-ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Turn plates are not standard. Must be purchased separately
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operation
• Skid proof diamond platform

Specifications

Model     AX-12A
Style     Alignment
Lifting Capacity     12,000 lbs
Lifting Time     74S
A1:Lifting Height     73 5/8″
A2:Minimum Height     11 3/4″
B: Runway Length     197 1/2″
C: Overall Width     90 1/8″
D: Runway Width     24 5/8″
E: Overall Length (Including Ramps)     258″
Motor     2.0HP
Gross Weight     5,326 lbs

AX-12A Scissor lift diagram

Optional Accessories:

• Optional rolling jacks:
– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump

• More choices:
– Optional turnplate Kits: 40101
– Optional led lights Kits: 40103
– Optional extension Kits: PX002
– Optional Airline Kits: PX004
