The AMGO AX-12A is engineered for versatility, supporting wheel alignment and general automotive service. With a 12,000lb capacity, it is designed for heavy-duty workloads and larger vehicles, ensuring maximum shop efficiency.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
- 12,000lbs capacity
- Alignment service design
- X scissors design provides superior performance and a durable, heavy-duty structure
- The full rise design offers ample workspace underneath
- Two sets of integrated dual hydraulic cylinders are included to ensure the equalization and safety of both platforms
- The dual safety system features hydraulic synchronization and automatic mechanical locks with an air release
- Electrical hydraulic power system with a control power unit
- Non-slip extended platforms accommodate various vehicles
- Automatic safety stop device comes standard
Click links below for more info:
AX-12A Scissors Lift Manual

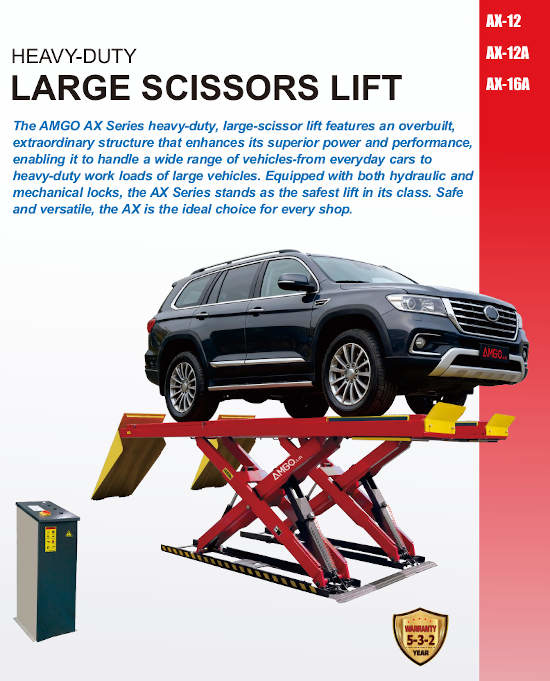

AX-12A Scissors Lift Brochure
Specifications
Model AX-12A
Lifting Capacity 12,000 Ibs
Lifting Time 75s

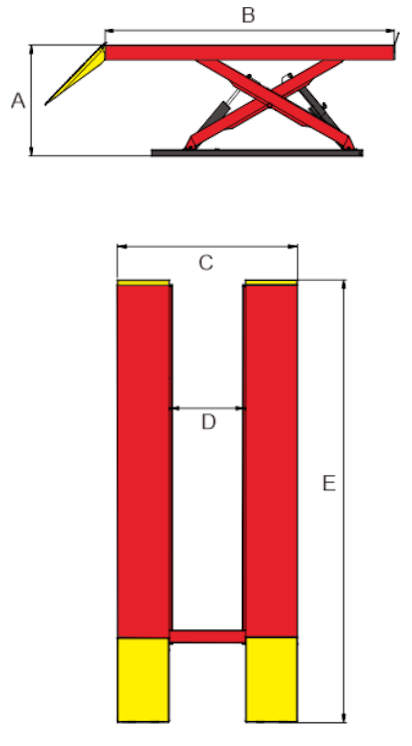

A. Max. Lifting Height 72 13/16"
A. Max. Lock Height 71 1/16"
A. Minimum Height 12"
B. Runway Length 197 9/16"
C. Overall Width 90 3/16"
D. Width Between Runways 40 15/16"
E. Overall Length (Inc. Ramps) 258"
F. Min. Four Wheel Align 81 15/16"
G. Max. Four Wheel Align 167 15/16"
H. Max. Two Wheel Align 170 1/2"
Gross Weight 5,741 lbs
Motor 2.0HP
Optional Accessories:
• Optional rolling jacks:
– J6H: 6,000 lbs with manual control
– J6A: 6,000 lbs with pneumatic pump
• More choices:
– Optional turnplate Kits: 40101
– Optional led lights Kits: 40103
– Optional extension Kits: PX002
– Optional Airline Kits: PX004
