The upgraded LR06 features a low-profile, recessed frame and extended platforms for a fast and smooth operation for your on-the-go shop. With a 6,000-lb capacity, the portable LR06 handles tire, suspension, and bodywork with ease. Power where you need it. Space where you want it.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
- Lifting capacity: 6,000lbs
- Portable, newly designed dolly for effortless movement
- Rugged platform and hard-rubber lifting pad guarantee stable and quick lifting
- Dual-approach ramps for maximum space efficiency
- Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism
- 1-1/2″ Rubber pads come standard
Click links below for more info:
LR06 Low Rise Portable Lift Manual
LR06 Low Rise Portable Lift Brochure
Lowering/Increasing Speed Adjustment on Your Lift

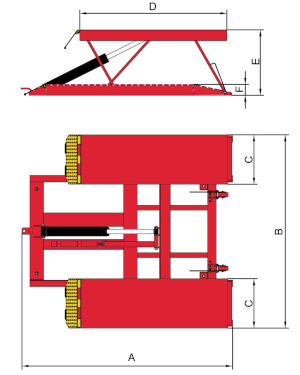

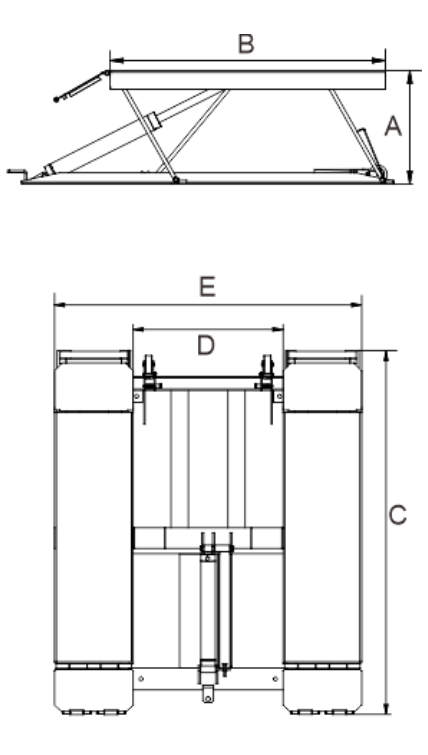

Specifications
Model LR06
Lifting Capacity 6,000 lbs
Lifting Time 56S
A: Max Lifting Height 24 3/16″
A: Minimum Height 4 1/8″
B: Runway Length 57 3/16″
C: Overall Length 84 1/16″
D: Width Between Runways 34 3/16″
E: Overall Width 70 1/16″
Gross Weight 827 lbs
Motor 1.0HP 110V
