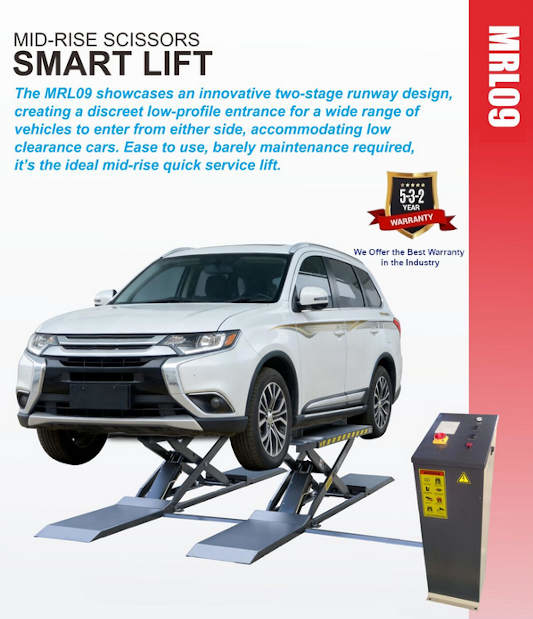

The MRL09 features an innovative two-stage runway design, creating a discreet low-profile entrance for a wide range of vehicles that can enter from either side, accommodating low clearance cars. Easy to use and little maintenance required, it’s the ideal mid-rise quick service lift.
5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components
Features
• 9,000lbs capacity
• Low-profile design (min height 2 3/8″) accomodates ultra low chassis vehicles
• Dual two-stage drive in ramps, provide easy double entrance
• Dual-cylinder hydraulic synchronization & locking system
• No need of extra air source
• Extendable platforms are applicable with different wheelbases
• Standard ETL certificated power unit
Click links below for more info:
MRL09 Midrise Scissor Lift Manual

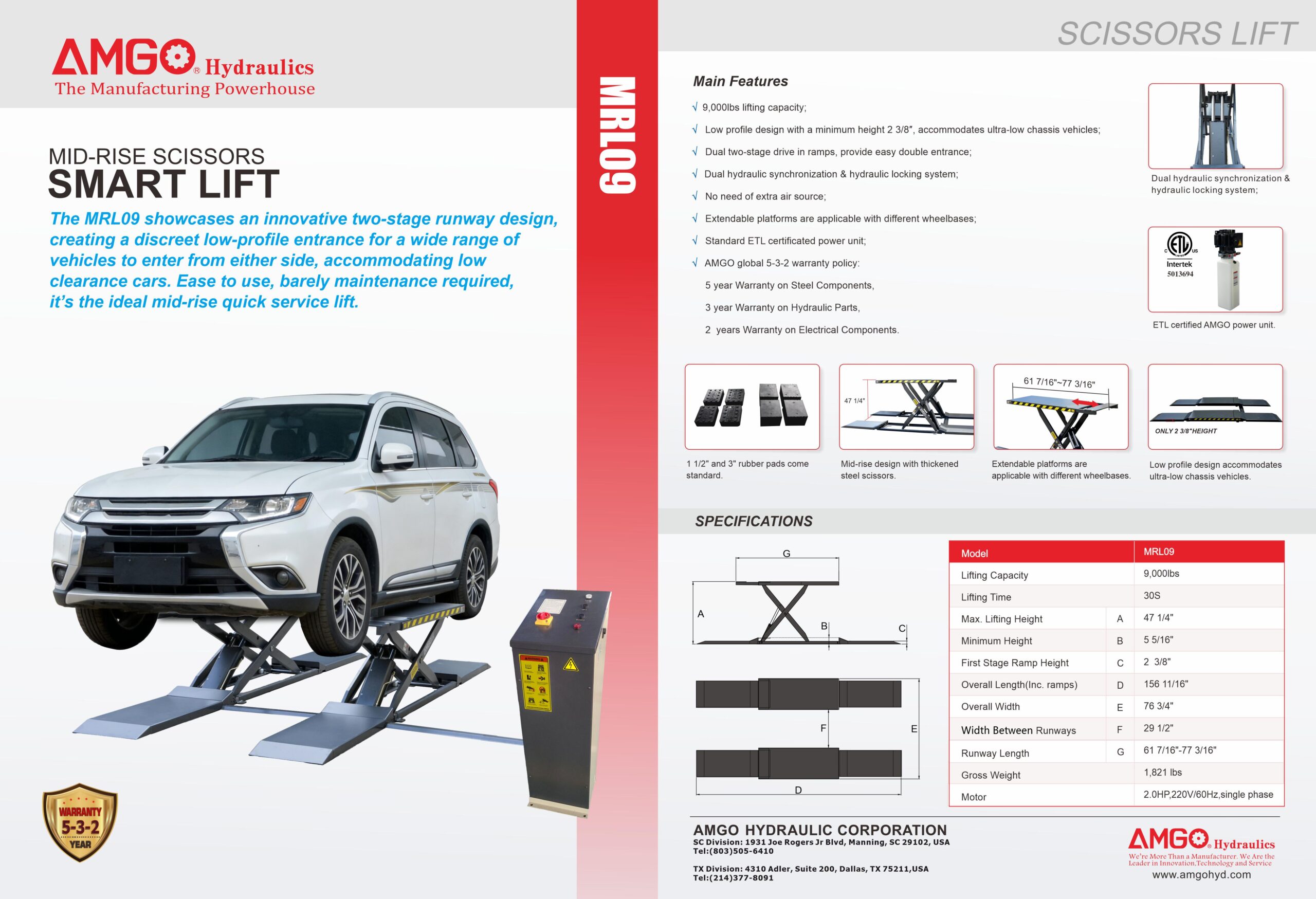

MRL09 Midrise Scissor Lift Brochure
Lowering/Increasing Speed Adjustment on Your Lift

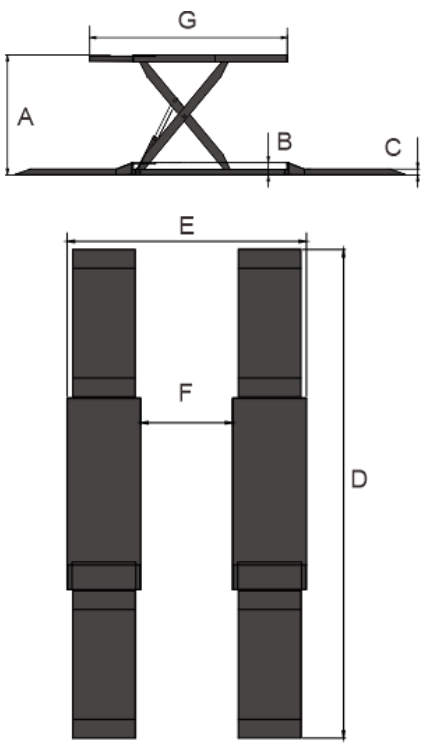

Specifications
Model MLR09
Lifting Capacity 9,000 lbs
Lifting Time 30 S
A: Max Lifting Height 47 1/4″
B: Minimum Height 5 5/16″
C: First Stage Rmap Height 2 3/8″
D: Overall Length (Inc Ramp) 156 11/16″
E: Overall Width 76 3/4″
F: Width Between Runways 29 1/2″
G: Runway Length 61 7/16 - 77 3/16″
Motor 2.0HP
Gross Weight 1,821
