PHOENIX PWB1530A/PWC2900A TILT BACK TIRE CHANGER WITH ASSIST ARM + WHEEL BALANCER COMBO

SKU: PWC2900A /PWB1530A
Manufacturer part number: PWC2900A /PWB1530A
Free shipping
Quick overview This Phoenix Tire Changer / Wheel Balancer Combo consists of the PWB1530A Wheel Balancer and PWC2900A Tilt Back Tire Changer with AL310 Helper Arm.
$2,450.00

PHOENIX WHEEL BALANCER AND TIRE CHANGER DEMO VIDEOS








Tire Changer Information



1-Year Parts Warranty on Both Units

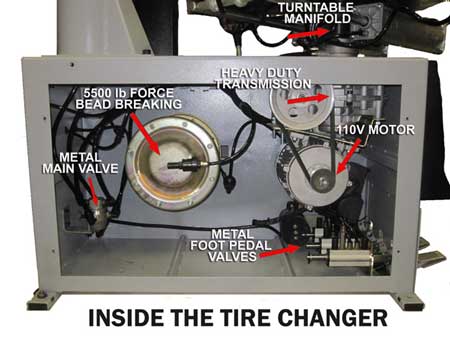

Phoenix manufactures quality wheel service equipment at affordable prices. Have a look inside (right) a Phoenix tire changer you will see components such as metal air valves rather than plastic, a bead breaker cylinder built to last with 5500 lbs of force, a motor and transmission that run smooth without vibration that transfer plenty of power to handle even larger wheels, such as Ford F350. Foot control pedals operate metal air control valves structured for long trouble-free operation, unlike many higher priced products that use plastic valving but charge a premium price, perform no better, and do not last. Comparing Phoenix equipment with the big names you will learn Phoenix offers the same quality at a lower price (no big food chain to feed). We also offer better service; when you call, we answer. You won’t need to leave a message or pay ridiculous prices for replacement parts.

The top of the tire machine uses a large turntable (26″ or 28″), thick and rugged to handle large wheels. Behind the wheel clamps there are air jets, the part of the bead blaster which assists in seating the bead for mounting tires. The air supply tank is housed in the upright tower, eliminating the need for an exterior tank. The adjustable air regulator and water trap is mounted beside the automatic oiler, which is necessary to keep the machine lubricated – where there is compressed air, there is often moisture. The oiler drips oil into the machine each time you use a foot pedal function, spreading lubricant throughout the system and limiting wear on parts. It is easy to fill: just spin off the reservoir, on and off in a minute. Strong large cylinders under the turntable move the rim clamps in and out and provide a solid grip on wheels. Of course, the steel duck head — which removes and installs the tire on the wheel — is lined with plastic inserts to protect against damage to wheels.

**Included as a standard piece is an all plastic duck head you can install when working with high end wheels which are fragile. Other brands charge for this as an option, usually $70-$100.00.



PHOENIX PWB1530A WHEEL BALANCER FEATURES:

Phoenix PWB1530A Wheel Balancer is a 110v 60 hz motorized digital wheel balancer with auto entry for distance and diameter setting. It is capable of balancing of steel and aluminum wheels as well as motorcycle wheels with optional adapter. 3 Aluminum Modes allow weight placement to avoid interference with brake and steering parts.

Auto Entry (Distance and Diameter)
Self Calibration
Quick Switch - Grams to Ounces
Hood Actuated/Auto Start or Press Button Start
Dynamic and Static Modes
Quick Release Wing Nut
3 Aluminum Modes
Motorcycle Mode - Optional Accessories
OPT Mode
Fine Balancing Mode
Auto Brake

**LARGE CONE AND SPACER INCLUDED, WILL HANDLE UP TO 7 1/8” CENTER HOLE WHEELS SUCH AS F350. OTHER BRANDS CHARGE $300.00 OR MORE FOR THIS.**




SPECIFICATIONS:

Motor Power: 110V / 60 Hz
Max Wheel Weight: 154 lbs
Rim Width: 1.5 - 20"
Rim Diameter: 10 - 24"
Balancing Accuracy: +/- 1 g
Balancing Time: 6 - 9s




INCLUDES:

4 Cones
1 3/4" - 2 5/8"
2 5/8" - 3 5/8"
3 1/16" - 4 5/8"
4 9/16" - 7 1/8" for larger wheel centers such as Ford F350. This cone and spacer below normally a $250.00 option
Spacer for larger pickup wheels such as F350
Quick Release Wing Nut
Wheel Weight Pliers
Small and Large Hub
Wheel Calipers
Calibration Weight
Display standard/metric
Storage Pegs for Cone Set

PHOENIX PWC2900A TILT BACK TIRE CHANGER FEATURES:


Self Centering Clamp with Stepping Function
Bead Seating Inflation Jets are Integrated into the Clamping Jaws for Quick and Safe Inflation
Tilting Column with Pneumatic Locking System
Robotic Assist Arm
Optional Wear Resistant Washer and Gauge
Optional Adapter for Motorcycle
Angle of Tool Can be Adjusted
Coated Tool to Prevent Damage on High End Rims



SPECIFICATIONS:

Power Supply: 110V
Motor Power: 1.5 Hp
Air Supply: 0.6 - 1.0 mpa
Rim Clamping Range: 12 - 22" outside 13"- 26" inside
Bead Breaker Force: 5500 lbs
Max Wheel Diameter: 43"
Max Wheel Width: 13"
Shipping Weight: 660 lbs
