PRO 11000C-DX2 11,000 lb. capacity lift features 3 stage front arms and 2 stage rear arms. 180 degree front arm full rotation.
PRO 11000C-DX 2
Manufacturer part number:
PRO 11000C-DX 2
WE HAVE 9 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.
WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD. WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.
CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!
**1 YEAR WARRANTY**

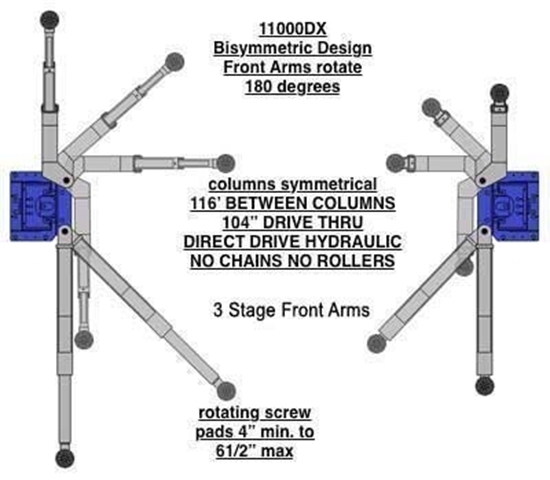

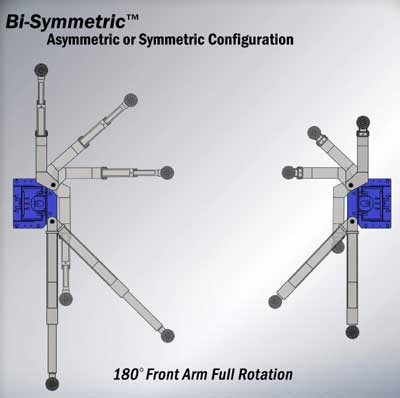

This 11,000 lb. two post direct drive lift clear floor lift was built with versatile, user-friendly bi-symmetric configurable arms, 3 stage front arms, symmetric columns, single point lock release, low profile arms, rubber door guards, and spin up pads with 2" and 4" stackable truck adapters. 180 degree front arm full rotation.
11,000 lb lifting capacity
Direct drive dual cylinder design, no chains or roller bearings to wear out
3 Stage front arms
Asymmetric/Symmetric arm configuration
Single piece Symmetric columns
Extra long carriage (44") less stress on slider blocks
Automatic electric safety override (padded)
Single point lock release
Low profile arms
Rubber door guards
Spin up pads with stackable truck adapters included 2" and 4"
Powder coat paint finish
PRO 11000C-DX 2 POST LIFT USER MANUAL
PRO 11000C-DX 2 POST LIFT WARRANTY
PRO 11000C-DX 2 POST LIFT SPECIFICATIONS
Capacity: 11,000 lbs.
Height Overall: 145"
Width Overall w/ Power Unit: 145-1/2"
Max Lift Height: 71"
With Tallest Adapter: 76-1/2"
Width Between Columns: 116-1/2"
Min. Pad Height: 4" - 6-1/2"
Drive Thru Clearance: 104"
Lifting Speed: 50S
Asymmetric / Symmetric: Asymmetric/Symmetric
Clear Floor / Floor Plate: Clear Floor
Short Arm Reach - min/max: 23" - 45"
Long Arm Reach - min/max: 41" - 57"
Cable Diameter: 3/8"
Column Size: 7-5/8" x 12-3/8"
Column Steel Thickness: 5mm
Carriage Steel Thickness: 6mm
Arm Steel Thickness: 8mm
Ship Weight: 1,705 lbs.
Power: 220V - 20 AMP - 1 PH
Direct Drive, 3 Stage Front Arms, Symm Columns, Single Point Lock Release, Low Profile Arms, Rubber Door Guards, Spin-Up Pads w/ Stackable Truck Adaptors included 2" & 4"
