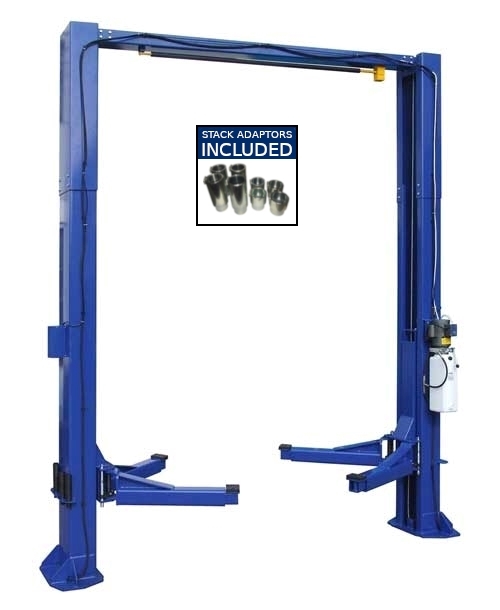

PRO 12000CD 2 POST LIFT

PRO 12000CD 12,000 lb. capacity lift features symmetric design, and extra long carriage for less wear on sliders.
Manufacturer: PRO LIFTS AND EQUIPMENT
SKU: PRO 12000CD
Manufacturer part number: PRO 12000CD
$4,195.00
decrease increase

WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






Fully gusseted oversized base plates and big lifting arms with reinforced swivel pin holes promise years of reliable service.



FEATURES



12,000 lb lifting capacity
Symmetric design
Direct drive
Long-lasting direct drive cylinders
Extra long (48") carriage for less wear on sliders
Padded overhead cut-off bar
Single point pneumatic safety lock release
Drop in adapters standard
Powder coated paint finish






PRO 12000CD 2 POST LIFT USER MANUAL








SPECIFICATIONS



Lift Model PRO 12000CD
Capacity 12,000 lbs.
Height Overall 165"
Width Overall w/ Power Unit 151-1/8"
Max Lift Height 72"
With Tallest Adapter 77"
Width Between Columns 122"
Min. Pad Height 5"
Drive Thru Clearance 109"
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach - min/max 37-5/8" - 56-3/4"
Long Arm Reach - min/max Same
Cable Diameter 3/8"
Column Size 8-3/4" x 12-3/4"
Column Steel Thickness 7mm
Carriage Steel Thickness 7mm
Arm Steel Thickness 9.5mm
Ship Weight 2,295 lbs.
Power 220V - 20 AMP - 1 PH
Key Features Direct Push Drive; Single Point Lock Release; Stackable Truck Adapters included 2.5" & 5"

WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






Fully gusseted oversized base plates and big lifting arms with reinforced swivel pin holes promise years of reliable service.



FEATURES



12,000 lb lifting capacity
Symmetric design
Direct drive
Long-lasting direct drive cylinders
Extra long (48") carriage for less wear on sliders
Padded overhead cut-off bar
Single point pneumatic safety lock release
Drop in adapters standard
Powder coated paint finish






PRO 12000CD 2 POST LIFT USER MANUAL








SPECIFICATIONS



Lift Model PRO 12000CD
Capacity 12,000 lbs.
Height Overall 165"
Width Overall w/ Power Unit 151-1/8"
Max Lift Height 72"
With Tallest Adapter 77"
Width Between Columns 122"
Min. Pad Height 5"
Drive Thru Clearance 109"
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach - min/max 37-5/8" - 56-3/4"
Long Arm Reach - min/max Same
Cable Diameter 3/8"
Column Size 8-3/4" x 12-3/4"
Column Steel Thickness 7mm
Carriage Steel Thickness 7mm
Arm Steel Thickness 9.5mm
Ship Weight 2,295 lbs.
Power 220V - 20 AMP - 1 PH
Key Features Direct Push Drive; Single Point Lock Release; Stackable Truck Adapters included 2.5" & 5"
