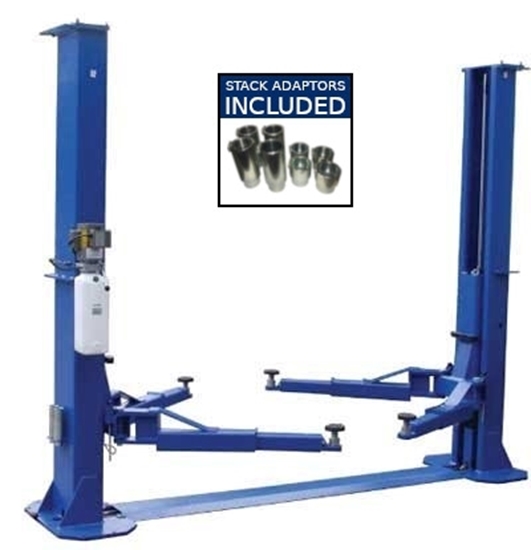

PRO 12000FPX 2 POST LIFT

SKU: PRO 12000FPX
Manufacturer part number: PRO 12000FPX
Quick overview PRO 12000FPX 12,000 lb. capacity lift features symmetric design, and low profile 'drop in' swivel pads with 2" adjustable height.
$4,200.00

WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






PRO 12000FPX 12,000 lb. capacity lift features symmetric design, and low profile 'drop in' swivel pads with 2" adjustable height.



FEATURES



12,000 lb lifting capacity
Symmetric design
Chain driven
Low profile 'drop in' swivel pads with 2" adjustable height
Padded 'Shut off' bar with kill switch
4 ea. stackable 3" and 5" drop-in height adapters
Reduced overall width with front side mounted power unit
Internal hose routing with integrated hose guards
Rubber door guards






PRO 12000FP 2 POST LIFT USER MANUAL

PRO 9000FP 2 POST LIFT WARRANTY








SPECIFICATIONS



Lift ModelPRO 12000FP
Capacity12,000 lbs.
Height Overall121.5"
Width Overall w/ Power Unit147.8"
Max Lift Height76.5"
Width Between Columns120.3"
Min. Pad Height5"
Drive Thru Clearance109"
Lifting Speed  50S
Asymmetric / SymmetricSymmetric
Clear Floor / Floor PlateFloor Plate
Front Arm Reach - min/max37" - 52"
Rear Arm Reach - min/maxSame
Cable Diameter3/8"
Column Size7.75" x 14.5"
Column Steel Thickness8mm
Carriage Steel Thickness8mm
Arm Steel Thickness8mm
Ship Weight2,450 lbs.
Power220V - 20 AMP - 1 PH











Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Product description

WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






PRO 12000FPX 12,000 lb. capacity lift features symmetric design, and low profile 'drop in' swivel pads with 2" adjustable height.



FEATURES



12,000 lb lifting capacity
Symmetric design
Chain driven
Low profile 'drop in' swivel pads with 2" adjustable height
Padded 'Shut off' bar with kill switch
4 ea. stackable 3" and 5" drop-in height adapters
Reduced overall width with front side mounted power unit
Internal hose routing with integrated hose guards
Rubber door guards






PRO 12000FP 2 POST LIFT USER MANUAL

PRO 9000FP 2 POST LIFT WARRANTY








SPECIFICATIONS



Lift ModelPRO 12000FP
Capacity12,000 lbs.
Height Overall121.5"
Width Overall w/ Power Unit147.8"
Max Lift Height76.5"
Width Between Columns120.3"
Min. Pad Height5"
Drive Thru Clearance109"
Lifting Speed  50S
Asymmetric / SymmetricSymmetric
Clear Floor / Floor PlateFloor Plate
Front Arm Reach - min/max37" - 52"
Rear Arm Reach - min/maxSame
Cable Diameter3/8"
Column Size7.75" x 14.5"
Column Steel Thickness8mm
Carriage Steel Thickness8mm
Arm Steel Thickness8mm
Ship Weight2,450 lbs.
Power220V - 20 AMP - 1 PH
