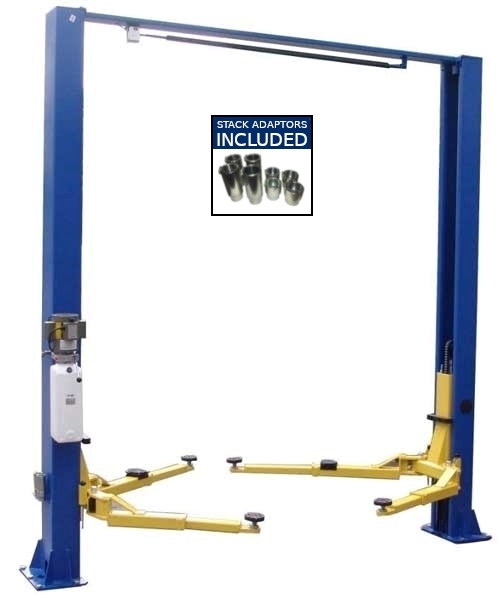

PRO 9000ACX 2 POST LIFT

SKU: PRO 9000ACX
Manufacturer part number: PRO 9000ACX
Quick overview This 9,000 lb. capacity lift has been redesigned to now include standard features with single piece column construction, internal hose routing, and padded overhead shut-off bar with kill switch.
$1,695.00





WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






This 9,000 lb. capacity lift has been redesigned to now include standard features with single piece column construction, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width, drop in adjustable swivel pads with height adapters and rubber door guards.



FEATURES



  • 9,000 lbs. capacity
  • High quality construction
  • Asymmetric / Clear Floor design
  • Chain Drive
  • Dual Point Lock release
  • Saddle Pad Adapters included (1 pair)
  • Powder coat finish
  • New! Single Piece Column construction
  • New! Padded 'Shut-Off' Bar w/ Kill Switch
  • New! Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height
  • New! 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters
  • New! Reduced overall Width w/ front-side mounted Power Unit
  • New! Internal Hose Routing w/ integrated Hose Guards
  • New! Rubber Door Guards








PRO 9000ACX 2 POST LIFT USER MANUAL



PRO 9000ACX 2 POST LIFT WARRANTY






SPECIFICATIONS



Lift ModelPRO 9000ACX
Capacity9,000 lbs.
Height Overall142.9"
Width Overall w/ Power Unit138"
Max Lift Height72"
Width Between Columns113.6"
Min. Pad Height4"
Drive Thru Clearance96"
Lifting Speed  50S
Asymmetric / SymmetricAsymmetric
Clear Floor / Floor PlateClear Floor
Front Arm Reach - min/max29" - 41"
Rear Arm Reach - min/max37" - 57"
Cable Diameter3/8"
Column Size7.25" x 10.87"
Column Steel Thickness5mm
Carriage Steel Thickness5mm
Arm Steel Thickness6mm
Ship Weight1,370 lbs.
Power220V - 20 AMP - 1 PH


















Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
I love the lift
I love the lift, it is exactly what I need.  In addition, the crew that installed it were courteous and knowledgeable in their trade, and the installation went seamlessly.
Also, the cradle adapters just arrived and they are just what the Dr. ordered.

Keep up the good work.

Anthony
Amherst, NH
From: costanino077 | Date: 5/27/2015 7:28 AM
Was this review helpful? Yes No (0/0)
Very pleased
We are very pleased with our purchase.
-James, Byron, Maine
From: mudhead | Date: 8/10/2015 10:05 AM
Was this review helpful? Yes No (0/0)
Works like a champ!
Thank you for the new 9000 pound lift it works like a champ!
-Harris, Warner, NH
From: skidzyk | Date: 5/3/2016 11:30 AM
Was this review helpful? Yes No (0/0)
Working great
The lifts are working great thank you for your help.

-Jonah Motors
Chichester, NH
From: chris | Date: 10/24/2016 4:47 AM
Was this review helpful? Yes No (0/0)
Working good
Working good.

-Jon, Kaminski Auto
W. Newfield, Maine
From: kaminskiautosalesservice | Date: 7/12/2017 7:38 AM
Was this review helpful? Yes No (0/0)
Product description





WE HAVE 15 LOCATIONS AROUND THE U.S. CALL FOR A PICK UP APPOINTMENT.



WE SHIP TO COMMERCIAL LOCATIONS WITH MEANS TO OFFLOAD.  WE ALSO ARRANGE FREIGHT TERMINAL PICK UPS.



CLOSE TO NEW HAMPSHIRE? CUSTOMER PICK UPS WELCOME!








**1 YEAR WARRANTY**






This 9,000 lb. capacity lift has been redesigned to now include standard features with single piece column construction, internal hose routing, padded overhead shut-off bar with kill switch, reduced overall width, drop in adjustable swivel pads with height adapters and rubber door guards.



FEATURES



  • 9,000 lbs. capacity
  • High quality construction
  • Asymmetric / Clear Floor design
  • Chain Drive
  • Dual Point Lock release
  • Saddle Pad Adapters included (1 pair)
  • Powder coat finish
  • New! Single Piece Column construction
  • New! Padded 'Shut-Off' Bar w/ Kill Switch
  • New! Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height
  • New! 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters
  • New! Reduced overall Width w/ front-side mounted Power Unit
  • New! Internal Hose Routing w/ integrated Hose Guards
  • New! Rubber Door Guards








PRO 9000ACX 2 POST LIFT USER MANUAL



PRO 9000ACX 2 POST LIFT WARRANTY






SPECIFICATIONS



Lift ModelPRO 9000ACX
Capacity9,000 lbs.
Height Overall142.9"
Width Overall w/ Power Unit138"
Max Lift Height72"
Width Between Columns113.6"
Min. Pad Height4"
Drive Thru Clearance96"
Lifting Speed  50S
Asymmetric / SymmetricAsymmetric
Clear Floor / Floor PlateClear Floor
Front Arm Reach - min/max29" - 41"
Rear Arm Reach - min/max37" - 57"
Cable Diameter3/8"
Column Size7.25" x 10.87"
Column Steel Thickness5mm
Carriage Steel Thickness5mm
Arm Steel Thickness6mm
Ship Weight1,370 lbs.
Power220V - 20 AMP - 1 PH
