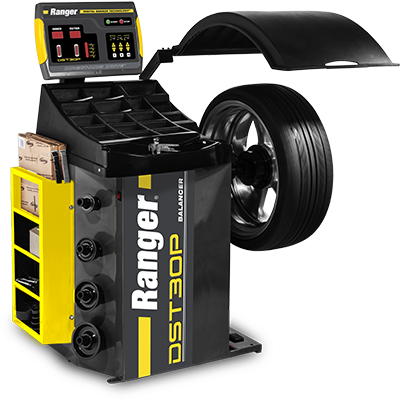

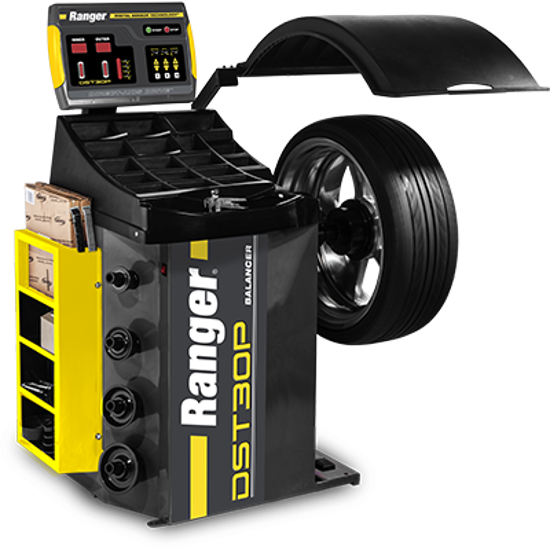

The DST30PX wheel balancer is built for speed, accuracy, and real-world shop demands. With one-spin balancing, advanced digital sensor technology, and multi-directional quartz sensors, it delivers precise weight placement with minimal effort. Its newly redesigned, larger hood accommodates wheels up to 43 inches in diameter, making it ready for today’s oversized assemblies. Combined with a rugged build, intuitive controls, and fast cycle times, it keeps productivity high and rework low.
Precision Wheel Balancer You Can Trust
The DST30PX is built for shops that don’t have time for second spins or second guesses. With one-spin balancing and advanced digital sensor technology working behind the scenes, it delivers fast, exact weight placement every time. Whether you’re dialing in a daily driver or a set of high-end alloys, the DST30PX cuts through the noise and gets straight to perfect balance, quicker, cleaner, and more efficient from the first spin.
One-Spin Wheel Balancing for Accurate Weight Placement
Anyone who’s spent time behind a wheel balancer knows the real work starts after the spin. That’s where placement either makes you look like a pro or sends you right back for another cycle, and that’s exactly where the DST30PX separates itself.
Instead of relying on guesswork or rough visual estimates, the DST30PX delivers clear, accurate placement data the moment the spin cycle ends. Operators get precise guidance on where correction weight is needed, allowing for confident, efficient installs without unnecessary rechecks.
It’s fast. It’s intuitive. And it’s built for accuracy.
The result is cleaner installs, faster workflow, and fewer repeat spins.
Open-Side Hood Design for Large Tires and Aggressive Offsets
Modern wheels aren’t getting any simpler. They’re larger, more complex, and far less forgiving when it comes to visible weight placement. Customers expect perfect balance without compromising the look of their wheels, and the DST30PX is built to deliver exactly that.
The DST30PX’s redesigned hood isn’t just a cosmetic update, it’s built to keep up with the way wheels have evolved. With the ability to accommodate assemblies up to 43 inches in diameter, it gives shops the clearance they need to handle today’s larger wheels and tires without fighting the machine. No awkward positioning. No partial closures. Just drop the hood and get to work.
The open-side design makes a noticeable difference in day-to-day use. Wider tires, aggressive offsets, and bulky sidewalls slide in easier, reducing the hassle during setup. It also improves visibility and access, so operators can position wheels quickly and confidently without working around tight clearances.
Strength matters here too. The reinforced hood structure is built to handle the added mass of larger assemblies without flexing or compromising alignment. That added rigidity helps maintain consistent measurements during operation, which directly impacts balancing accuracy.
Bottom line, the redesigned hood isn’t just about fitting bigger wheels. It’s about making the entire balancing process smoother, faster, and more reliable when you’re dealing with the kinds of wheel and tire packages shops see every day.
And because it’s designed to handle a wide range of wheel and tire assemblies, that same precision applies whether you’re working on standard passenger vehicles or larger, heavier setups.
In a busy shop, speed and accuracy aren’t luxuries, they’re the difference between staying ahead and falling behind. And with the DST30PX, techs turn one of the most critical steps in balancing into one of the easiest.
Direct-Drive System for Smooth, Low-Maintenance Shop Performance
The Direct-Axis drive system keeps the DST30PX running smooth and dependable over time. A single-belt design connects the motor and unbalance sensor, reducing complexity and cutting down on long-term maintenance costs.
Advanced Digital Sensor Technology for Fast, Accurate Balancing
The DST30PX doubles your effective weight placement potential while staying compact and cost-efficient. Dynamic, static, and ALU balancing modes come standard, along with dual-plane calibration for OEM and performance wheels. Ranger’s Digital Sensor Technology features a 16-digit processor and single-chip architecture, delivering faster data processing, improved accuracy, and reduced latency. A dedicated high-speed communication protocol ensures rapid data transfer to the microprocessor, while the single-chip design improves heat dissipation and power efficiency. The result is a smarter, faster balancer ready for today’s demanding wheel applications.
Multi-Directional Quartz Piezoelectric Load Sensors for Complete Imbalance Detection
The DST30PX doesn’t just react to imbalance, it breaks it down. At its core is a multi-directional quartz sensor system that tracks how a wheel actually behaves in motion, not just where it wobbles, but how forces move through the entire assembly. Forward, sideways, twisting, it’s all captured in real time and translated into precise correction data.
Modern wheels and tires create layered, overlapping forces that older systems struggle to fully interpret. That’s why the DST30PX leans on quartz piezoelectric sensors, one of the most responsive materials in precision measurement. The moment force hits the crystal, it generates a signal instantly, picking up even the smallest irregularities other systems might miss.
The DST30PX reads multiple directions at once, giving technicians a complete picture of imbalance in a single spin. It identifies exactly where the issue exists and provides clear correction guidance.
No chasing. No stacking weights. No second-guessing. Just clean, accurate data that leads to clean, accurate results.
That level of precision matters more than ever. Today’s wheels are wider, heavier, and built with tighter tolerances. Tires are stiffer, profiles are lower, and expectations are higher. The DST30PX is designed for that reality, giving technicians the clarity they need to get it right the first time.
In the shop, that means less time correcting mistakes and more time moving vehicles through the bay.
Quick Setup with Complete Collet Package for All Wheel Types
A full range of hardened-steel mounting collets lets you handle virtually any wheel type, including most light trucks and SUVs. The rubber quick-nut bell adapter and non-marring rear pressure cup secure wheels firmly in place without damaging finishes, keeping your workflow fast and efficient.
The DST30PX comes equipped with a comprehensive collet package, including three smaller collets ranging from 2” - 2.75”, 2.5” - 3.25” and 3” - 3.8”, along with a heavy-duty truck collet covering 3.7” to 4.4”. The 4.5” to 5” truck collet, once optional, is now standard. For even larger applications, an optional double-sided centering Truck Collet Kit supports hub sizes from 4.75” to 6.75”. Whether OEM or aftermarket, this balancer is ready to handle the job.
LED Wheel Weight Displays for Real-Time Placement Accuracy
Highly visible LED displays show exact weight placement positions as the wheel rotates to top-dead-center. Combined with the upgraded 64-tooth encoder, the system delivers faster, more sensitive, and more accurate readouts than ever before.
64-Tooth Encoder for Improved Wheel Balancing Efficiency
The advanced encoder system makes weight calculations more precise, reducing the amount of weight needed while speeding up the balancing process. Better accuracy means less waste, quicker jobs, and improved shop efficiency.
Full-Tilt Display Panel for Ergonomic Shop Operation
The elevated, tower-style display panel is fully adjustable, reducing glare and improving ergonomics. It’s designed to give operators a clearer view and a more comfortable working experience.
Integrated Tape Weight Feeder for Faster Workflow
An integrated side-shelf tape weight feeder keeps adhesive weights organized and within reach, so you can work faster without interruptions.
Starter Kit Included for Immediate Wheel Balancing
Every DST30PX includes a starter kit with 100 silver adhesive weights, 100 black adhesive weights, and a mixed box of clip-on steel weights. You’re ready to balance right out of the box.
Click links below for more info:
DST30PX Wheel Balancer Manual
DST30PX Wheel Balancer Sell Sheet
DST30PX Wheel Balancer Warranty
Best Wheel Balancer for Your Shop or Business
Specifications DST30P
Faster Workflow and Maximum Shop Efficiency
Manual or automatic start when the hood is lowered keeps workflow moving without interruption
Auxiliary manual brake and wheel restraint give you total control during setup and weight placement
Multi-user memory function stores presets to speed up repeat jobs and boost shop efficiency
Rapid six-second cycle time keeps turnaround fast for high-volume shops
Capable of balancing speeds up to 320 RPM for maximum throughput when needed
Automatic braking system stops the wheel quickly and positions it accurately for weight application
Precision Balancing Accuracy You Can Rely On
Integrated sliding distance ruler delivers quick, accurate offset measurements every time
Rolling wheel weight readout shows exact placement in real time, cutting down errors and rework
Fine ±1 gram accuracy resolution ensures precise balancing, even on large or sensitive wheel assemblies
Automatic round-off function simplifies readings while maintaining precision
Top-dead-center positioning indicator ensures exact weight placement every cycle
Self-calibration function keeps the machine dialed in without downtime or service calls
Improved vibration control enhances measurement accuracy and extends component life
Advanced Balancing Modes for Every Wheel Type
Dynamic, Static, and ALU (performance alloy) modes cover everything from daily drivers to high-end wheels
Tiered weight placement indicators guide advanced techniques like split-weight and behind-the-spoke placement
Low RPM balancing speed improves safety and consistency during operation
Easy-to-Use Controls and Clear Operator Feedback
Ergonomic control board with intuitive keypad layout reduces operator fatigue and shortens learning curve
Bright LED display provides clear, high-contrast visuals for faster, more accurate balancing decisions
Simple wheel data entry system ensures precise input of distance, diameter, and width measurements
Gram/ounce and millimeter/inch selection gives operators full flexibility across preferences and regions
Built-In Storage and Smart Shop Organization
High-capacity top tray holds a wide range of weights and tools for easy access during jobs
Integrated side shelf storage keeps essentials organized and within reach
Open-top side shelf design accommodates Ranger Quick-Peel adhesive tape weights for faster workflow
Side-mounted collet storage pegs keep tooling organized and ready to go
Heavy-Duty Construction for Modern Wheels and Tires
Rugged 40 mm shaft increases stiffness and accuracy while supporting heavier modern wheels
Reinforced chassis and hood assembly provide durability for large-diameter and heavy-duty applications
Larger hood design accommodates oversized off-road and fleet tires without repositioning
Quick Setup and Wide Compatibility with Accessories
Compatible with industry-standard cones and accessories for maximum versatility
Quick-release hub nut dramatically reduces setup time between jobs
Side-position restraint pedal secures the wheel during weight installation for added precision and safety
Open-side hood design allows for easier handling of wider and more aggressive tire profiles
Compact Footprint with Commercial-Grade Performance
Space-efficient footprint delivers full-size capability without taking over your shop floor
Designed for consistent performance in both low-volume garages and high-throughput commercial environments
Motor 115–230V, 50/60 Hz, 1 Ph, 0.5 HP (0.37 kW)
Drive system Belt Drive
Working temperature 23°F – 104°F
Balancing modes Dynamic / Static / Alloy / 1 Hidden
Maximum tire diameter 43"
Maximum wheel weight 145 lbs.
Max. wheel diameter 12" – 30"
Wheel width capacity 4" – 15"
Balancing increments 0.25 oz
Accuracy ± .035 oz
Resolution 0.25 oz
Balancing speed 260 RPM
Top weight locator (12 o’clock) Standard
Bottom weight locator (6 o’clock) No

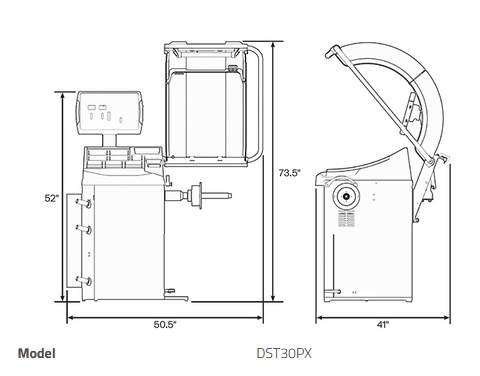

Height, Guard Up 73.5"
Height, Guard Down 72"
Width 50.5"
Depth 41"
Inside & outside measuring Standard
Millimeter / inches selection Standard
Ounce / gram selection Standard
Wheel offset distance setting Manual Slide Ruler
Self-calibration function Standard
Auto start Standard
Wheel spin braking Automatic / Electronic Resistor
Wheel holding manual brake pedal Pedal
Centering collets included 5 Collets
Wheel calipers Standard
Rear cone mount spring Standard
No-mar rear cone mount pressure cup Standard
Quick-release & mount hub nut Standard
Shipping Weight 426 lbs.
Shipping Dimensions 43" x 30" x 47"
