The SPL-6 Single Post Automotive Parking Lift combines AMGO high quality with space saving design and easy operation. The SPL-6 is great fit for home garages and commercial shops.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• 6,000 lbs lifting capacity
• Manual safety lock release
• Non-slip lifting platform
• H-shaped lifting platform with reinforced column
• Low post height for low ceilings
• Suitable for home garages and commercial applications
• Reversible Drive in ramps (drive in from either side)
• ETL certified power unit

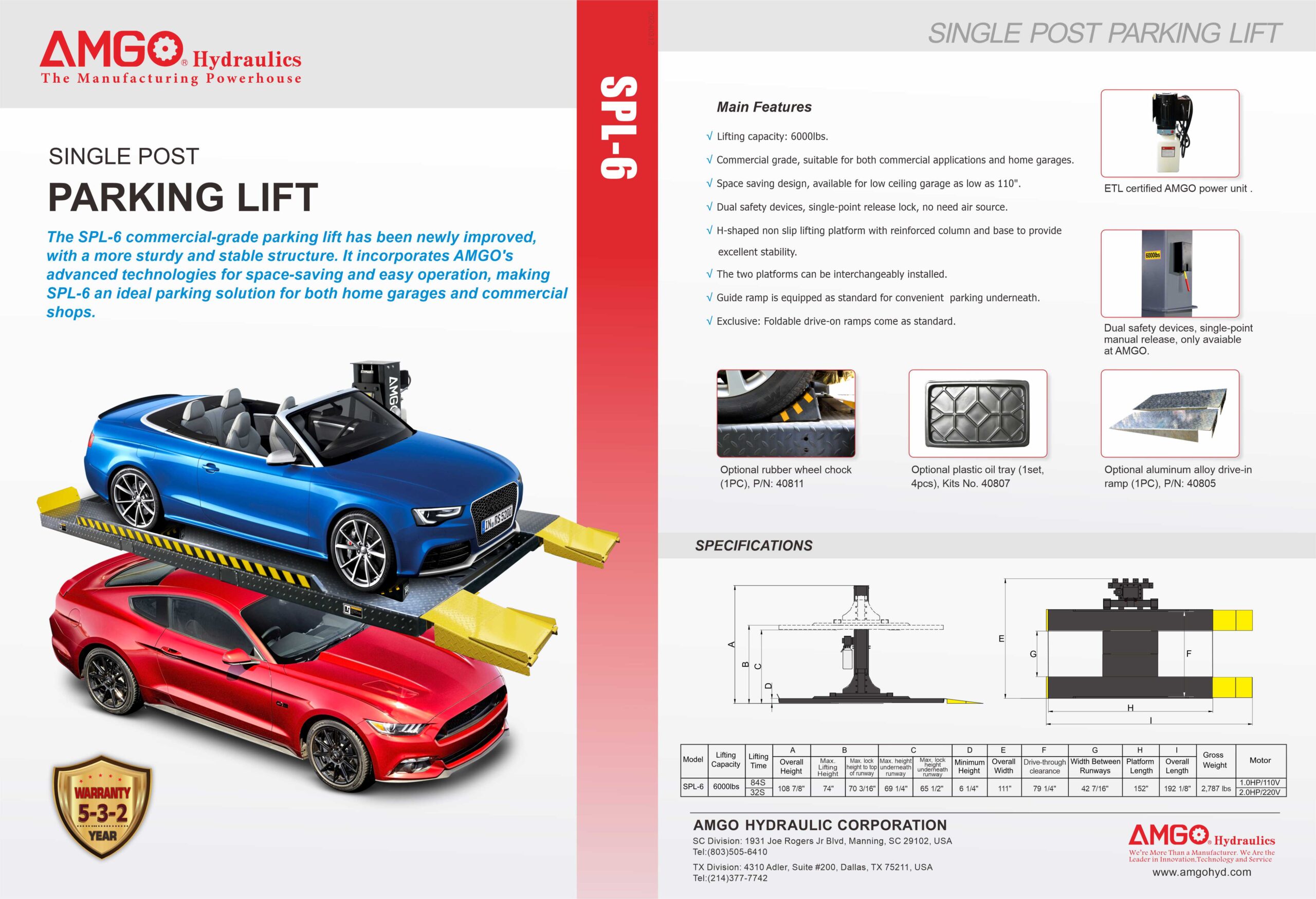

SPL-6 Single Post Parking Lift Manual

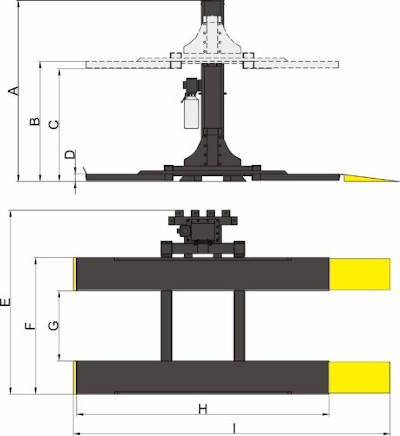

Specifications

Model:     SPL-6
Lifting Capacity:     6,000lbs
Lifting Time:     84S | 32S
Overall Height     108 7/8″
Max Lifting Height:     74″
Max Underneath Height: 69 1/4″
Minimum Height     6 3/8″
Overall Width     111″
Outside Edge of Runways: 82 3/8"
Width Between Runways: 42 3/8"
Platform Length: 152"
Overall Length: 192 1/8"
Motor:     1.0HP, 110V | 2.0HP, 220V
Gross Weight:     2,725lbs
