Single Post Lift 6000lb SL-6 Amgo Hydraulics

The SL-6 single post lift is newly designed and perfect for when you need to lift a vehicle, yet conserve space in your shop. It can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.
SKU: SL-6
Manufacturer part number: SL-6
Manufacturer: Amgo Hydraulics
$2,450.00

Amgo warrantyAMGO’s newly-designed single post lift is the perfect choice for when you must quickly lift a vehicle in limited space. The SL-6 is a great choice when you need to conserve space in your shop. It can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features


•  Lifting capacity: 6,000 lbs.
•  Max. lifting height: 77 1/8″ (1960 mm).
•  Min height: 4 1/2″ (115 mm).
•  Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze Bushings.
•  High quality cylinders and power units are manufactured to high standards

Single Post Lift SL-6 Manual

Specifications

  • Model     SL-6
  • Lifting Capacity     6,000 lbs (2,722 kg)
  • Lifting Time     32 S (220V)
  • A:Overall Height     108 7/8″ (2766mm)
  • B:Overall Width     80″ (2032mm)
  • C: Lifting Height     71 7/8″~77 1/8″ (1825mm ~ 1960mm)
  • D:Minimum Pad Height     4 1/2″ (115mm)
  • Motor     1.0HP, 110V/60Hz Single Phase | 2.0HP, 220V/60Hz Single Phase
  • Gross Weight     1642lbs (745kg)

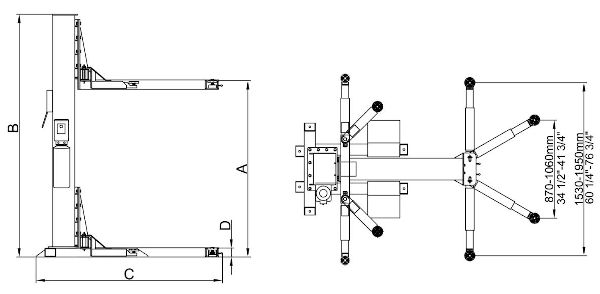

single post lift diagram

Amgo warrantyAMGO’s newly-designed single post lift is the perfect choice for when you must quickly lift a vehicle in limited space. The SL-6 is a great choice when you need to conserve space in your shop. It can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features


•  Lifting capacity: 6,000 lbs.
•  Max. lifting height: 77 1/8″ (1960 mm).
•  Min height: 4 1/2″ (115 mm).
•  Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze Bushings.
•  High quality cylinders and power units are manufactured to high standards

Single Post Lift SL-6 Manual

Specifications

  • Model     SL-6
  • Lifting Capacity     6,000 lbs (2,722 kg)
  • Lifting Time     32 S (220V)
  • A:Overall Height     108 7/8″ (2766mm)
  • B:Overall Width     80″ (2032mm)
  • C: Lifting Height     71 7/8″~77 1/8″ (1825mm ~ 1960mm)
  • D:Minimum Pad Height     4 1/2″ (115mm)
  • Motor     1.0HP, 110V/60Hz Single Phase | 2.0HP, 220V/60Hz Single Phase
  • Gross Weight     1642lbs (745kg)

single post lift diagram
