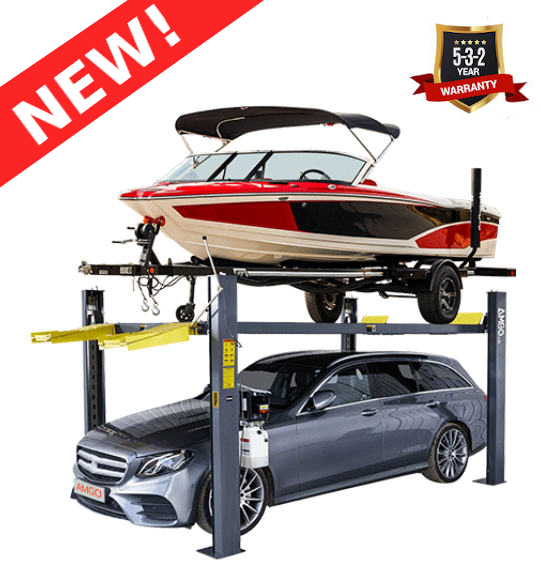

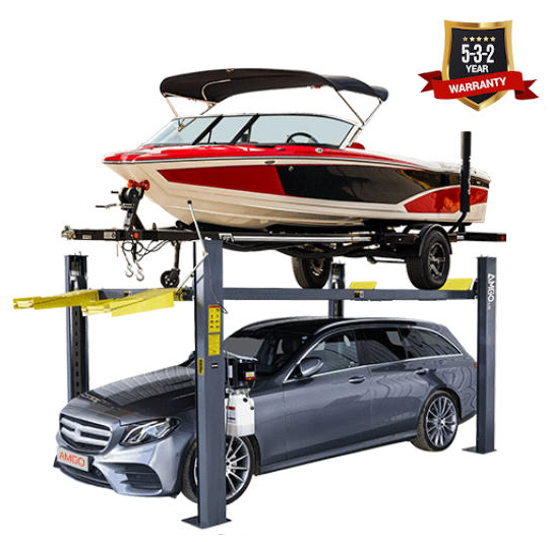

The 409-HPX is capable of lifting 12″ higher and an additional 1,000 lbs than the 408-P Storage Lift. With the overall width of 124 1/2" on the 409-HPX it gives more than 15 inches of extra drive through clearance compared to the 409-HP. The 409-HPX also features adjustable runways to accommodate various wheel bases. This storage lift is portable with the optional caster kit, and does not need to be anchored. Fits under 10' ceilings.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Fits under 10' ceilings
• AMGO exclusive hidden safety locks and manual single-point release device allows operators to unlock the safety locks from one column
• Double-S shaped columns help increase the columns’ strength
• Skid proof diamond platform provides traction for the tires to stay put
• Flexible design: The power side column can be installed at any corner
• Portable design, can easily be moved by using the caster kits
• Steel ramps included

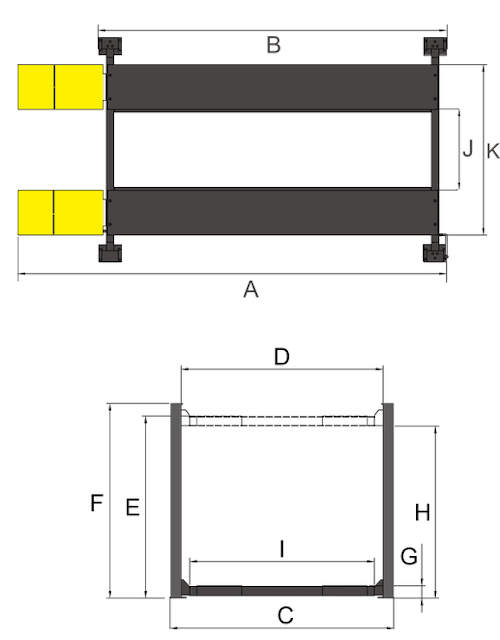

Specifications

Model     409-HPX
Lifting Capacity:     9,000 lbs
Lifting Time:     143 S (110v) /57 S (220v)
A：Overall Length (Inc. Ramps):     238 1/8″
B：Outside Edge of Crossbeams:     197 3/4″
C：Overall Width:     124 1/2″
D：Width Between Posts:     114 13/16″
E：Lifting Height:     87 5/8″
E：Max Height to Top of Runway:     84 1/2″
F：Overall Height:     96 5/8″
G：Minimum Height:     6 1/8″
H：Max. Underneath Height:     82 5/16″
H：Max. Lock Underneath Height Runway:     79 3/16″
I： Drive-Thru Clearance:      103 5/8″
J：Width Between Runways:     42 3/8″ | 59 11/16"
K：Outside Edge of Runways:     82 3/8″ | 99 11/16"
Motor:     1.0HP 110V;       2.0HP 220V
Gross Weight:     1,993 lbs
