For professional, deluxe 4-post Parking Lifts, the 408-HP is one of the best 4 post parking lifts on the market with extremely high lifting ability.

5-Year Warranty on Steel Components
3-year Warranty on Hydraulic Parts
2-Year Warranty on Electrical Components

Features

• Fits under 10' ceilings
• High lifting rise of 82"
• Adjustable lock ladder
• AMGO exclusive hidden safety locks and manual single-point release device allows operators to unlock the safety locks from one column
• Double-S shaped columns help increase the columns’ strength
• Skid proof diamond platform provides traction for the tires to stay put
• Flexible design: The power side column can be installed at any corner
• Steel ramps included

408-HP Parking Lift Manual

Specifications

Model     408-HP
Lifting Capacity:     8,000 lbs
Lifting Time:     83s (110V),  31s (220V)

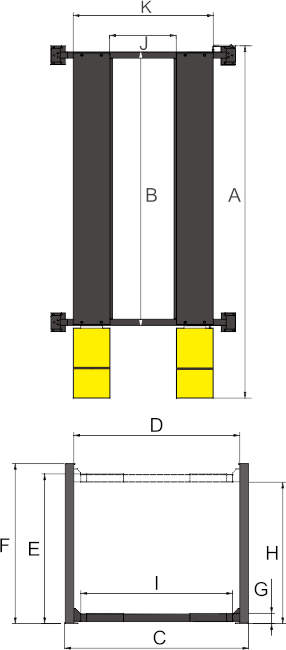

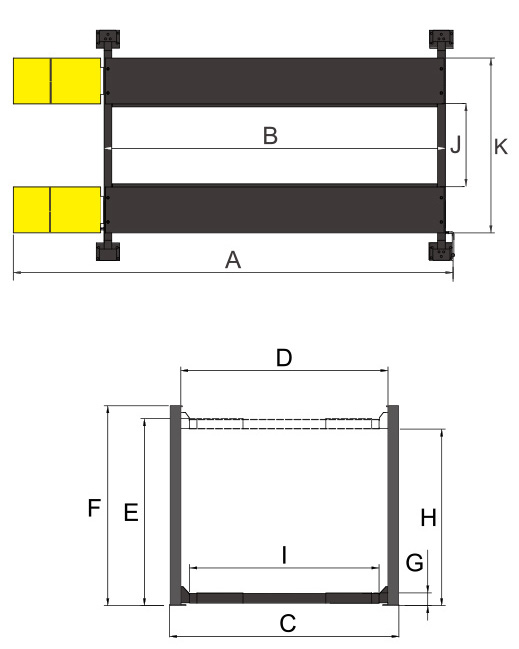

A：Overall Length (Inc. Ramps):     207″
B：Overall Length (No Inc. Ramps):     173 1/4″
C：Overall Width:     109 5/8″
D：Width Between Posts:     96″
E：Max. Lifting Height:     87 3/4″
F：Overall Height:     96 5/8″
G：Minimum Height:     6 1/8″
H：Max. Underneath Height:     83″
I：Drive-Thru Clearance:     81 5/8″
J：Width Between Runways:  37″
K：Outside Edge of Runways:     74 3/8″
Motor:     1.0HP 110V/60Hz;       2.0HP 220V/60Hz
Gross Weight:     1,704 lbs
